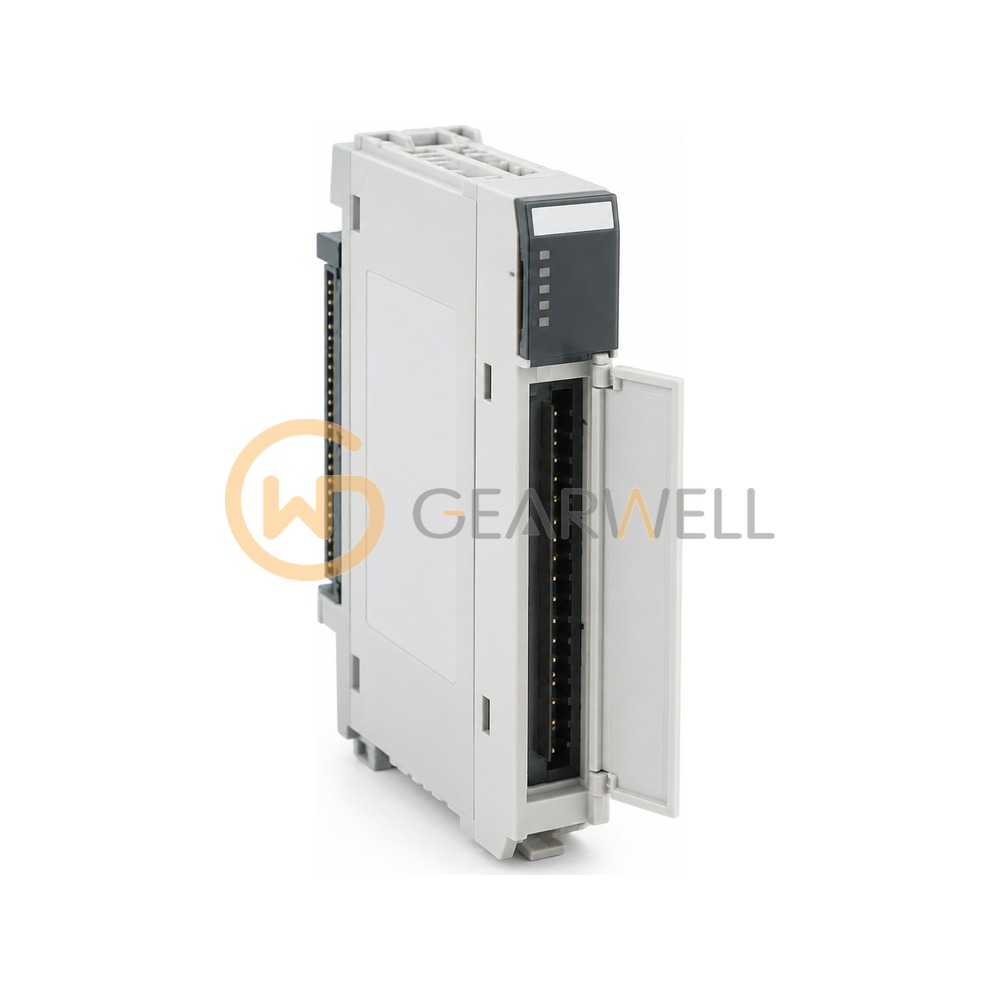

GE IC693CPU351 Series 90-30 CPU 351 Module
- Brand
- GE
- Model
- IC693CPU351
- GEARWELL SKU
- GWP-000026554
- Category
- PLCs & I/O
Key specifications
- Evidence
- GE Fanuc GFK-0356Q Series 90-30 PLC Installation and Hardware Manual, CPU351 page (hosted at qualitrol.com)
- Processor
- 80386EX, 25 MHz
- Discrete I/O
- 2,048 inputs / 2,048 outputs
- Serial ports
- Port 1 RS-232, Port 2 RS-485, plus SNP/SNPX slave on power supply connector
- Catalog number
- IC693CPU351
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | GE IC693CPU351 Series 90-30 CPU 351 Module |
|---|---|
| Brand | GE |
| Model | IC693CPU351 |
| Category | PLCs & I/O |
| Evidence | GE Fanuc GFK-0356Q Series 90-30 PLC Installation and Hardware Manual, CPU351 page (hosted at qualitrol.com) |
| Processor | 80386EX, 25 MHz |
| Discrete I/O | 2,048 inputs / 2,048 outputs |
| Serial ports | Port 1 RS-232, Port 2 RS-485, plus SNP/SNPX slave on power supply connector |
| Catalog number | IC693CPU351 |
| Typical scan rate | 0.22 ms per 1K of logic (boolean contacts) |
| User program memory | 240K bytes configurable (firmware 9.0 and later); 80K bytes fixed before 9.0 |
| Baseplates per system | 8 (CPU baseplate + 7 expansion and/or remote) |
| Operating temperature | 0 to 60 C |
| Load from power supply | 890 mA from +5 VDC |
