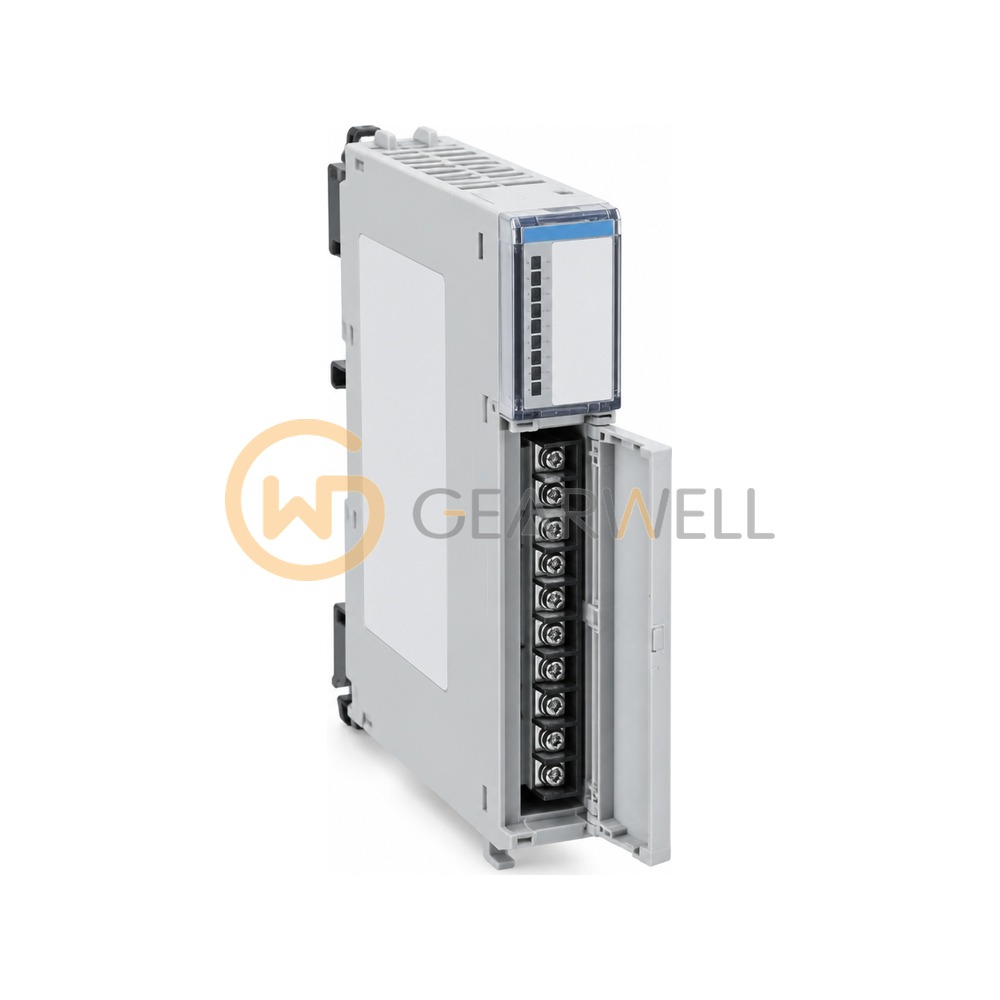

GE IC693ALG223 Series 90-30 16-Channel Analog Current Input Module
- Brand
- GE
- Model
- IC693ALG223
- GEARWELL SKU
- GWP-000025725
- Category
- PLCs & I/O
Key specifications
- Power
- 120 mA from 5 V bus; 65 mA + loop current from user 24 V supply
- Channels
- 1 to 16 selectable, single ended
- Isolation
- 1500 V field side to logic side
- Resolution
- 4 uA (4-20 mA), 5 uA (0-20 mA / Enhanced)
- Update rate
- 13 ms (all 16 channels)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | GE IC693ALG223 Series 90-30 16-Channel Analog Current Input Module |
|---|---|
| Brand | GE |
| Model | IC693ALG223 |
| Category | PLCs & I/O |
| Power | 120 mA from 5 V bus; 65 mA + loop current from user 24 V supply |
| Channels | 1 to 16 selectable, single ended |
| Isolation | 1500 V field side to logic side |
| Resolution | 4 uA (4-20 mA), 5 uA (0-20 mA / Enhanced) |
| Update rate | 13 ms (all 16 channels) |
| Absolute accuracy | +/-0.25% FS @ 25 C; +/-0.5% FS over operating temperature |
| Input current ranges | 0-20 mA, 4-20 mA, 4-20 mA Enhanced (per channel) |
