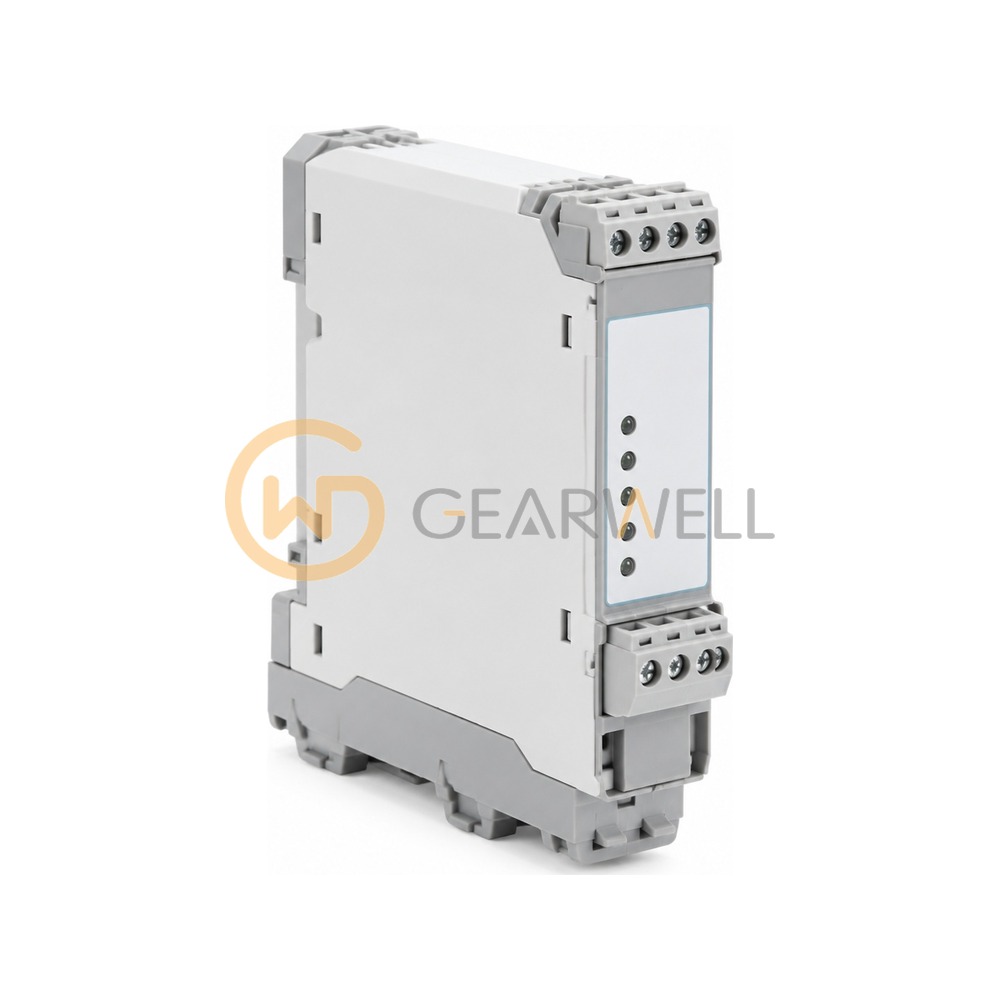

GE IC670ALG310 Field Control 8-Point Analog Voltage Output Module
- Brand
- GE
- Model
- IC670ALG310
- GEARWELL SKU
- GWP-000025713
- Category
- PLCs & I/O
Key specifications
- Channels
- 8 voltage outputs, 2 isolated groups of 4
- Evidence
- GE Fanuc GFK-1426 8 Point Isolated Analog Voltage-Source Output Module datasheet (hosted at qualitrol.com)
- User load
- 5000 Ohm min.
- Resolution
- 14 bit
- Update time
- 1.5 ms typical
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | GE IC670ALG310 Field Control 8-Point Analog Voltage Output Module |
|---|---|
| Brand | GE |
| Model | IC670ALG310 |
| Category | PLCs & I/O |
| Channels | 8 voltage outputs, 2 isolated groups of 4 |
| Evidence | GE Fanuc GFK-1426 8 Point Isolated Analog Voltage-Source Output Module datasheet (hosted at qualitrol.com) |
| User load | 5000 Ohm min. |
| Resolution | 14 bit |
| Update time | 1.5 ms typical |
| Output range | -10 V to +10 V (limits -10.25 V to +10.25 V) |
| Power supply | 18 to 30 VDC, 24 VDC typical |
| Accuracy at 25 °C | 0.15% of full scale |
| Operating temperature | 0 to 55 °C |
