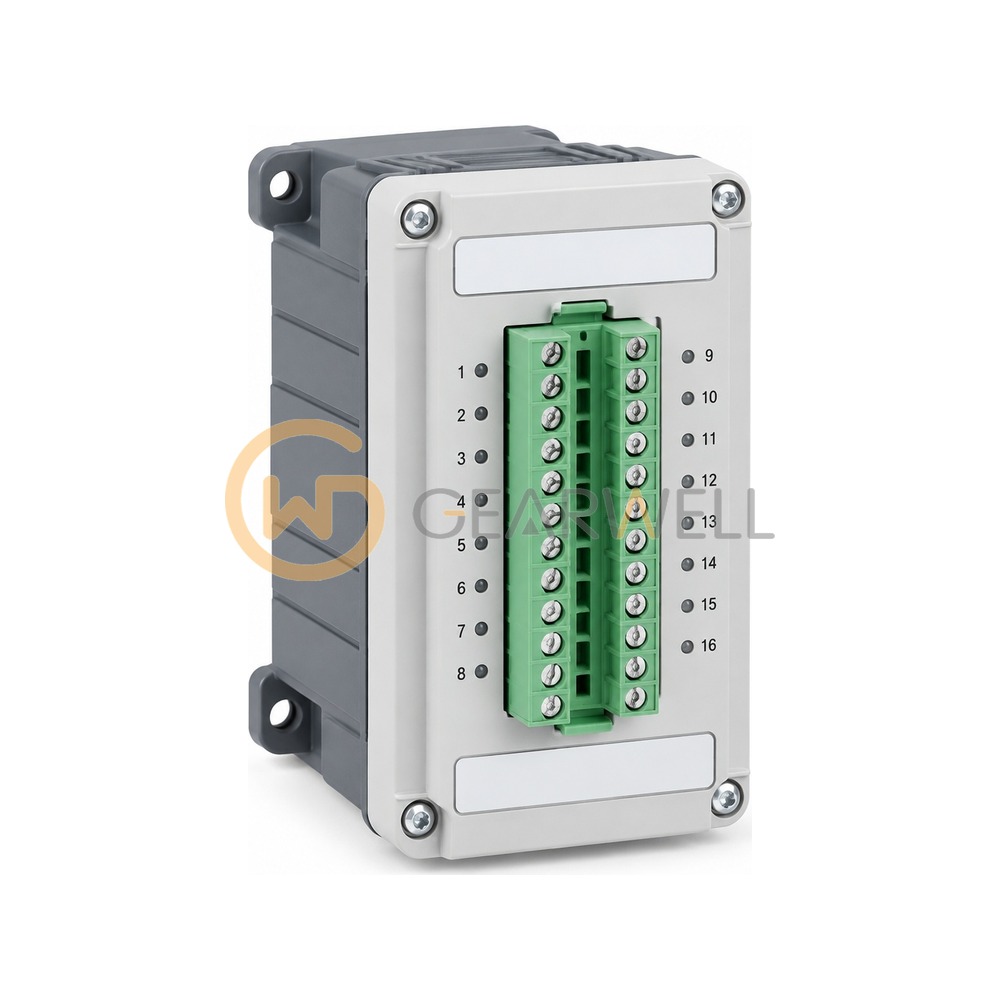

GE IC660BBD020Y Genius 24/48VDC 16-Circuit Source I/O Block
- Brand
- GE
- Model
- IC660BBD020Y
- GEARWELL SKU
- GWP-000026546
- Category
- PLCs & I/O
Key specifications
- Weight
- 1.8 kg
- Circuits
- 16, each configurable as input, tristate input or output
- Evidence
- GE Fanuc GFK-0043F (hosted at qualitrol.com)
- Assemblies
- Terminal assembly IC66*TSD020; electronics assembly IC66*EBD020
- Output current
- 2 A per circuit; 15 A per block at 35 C
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | GE IC660BBD020Y Genius 24/48VDC 16-Circuit Source I/O Block |
|---|---|
| Brand | GE |
| Model | IC660BBD020Y |
| Category | PLCs & I/O |
| Weight | 1.8 kg |
| Circuits | 16, each configurable as input, tristate input or output |
| Evidence | GE Fanuc GFK-0043F (hosted at qualitrol.com) |
| Assemblies | Terminal assembly IC66*TSD020; electronics assembly IC66*EBD020 |
| Output current | 2 A per circuit; 15 A per block at 35 C |
| Block isolation | 1500 V |
| Revision suffix | Y (as collected; trailing revision letter on IC660BBD020) |
| Operating voltage | 18 to 56 VDC (24/48 V) |
| Input filter times | 5 to 100 ms selectable |
| Operating temperature | 0 to 60 C |
