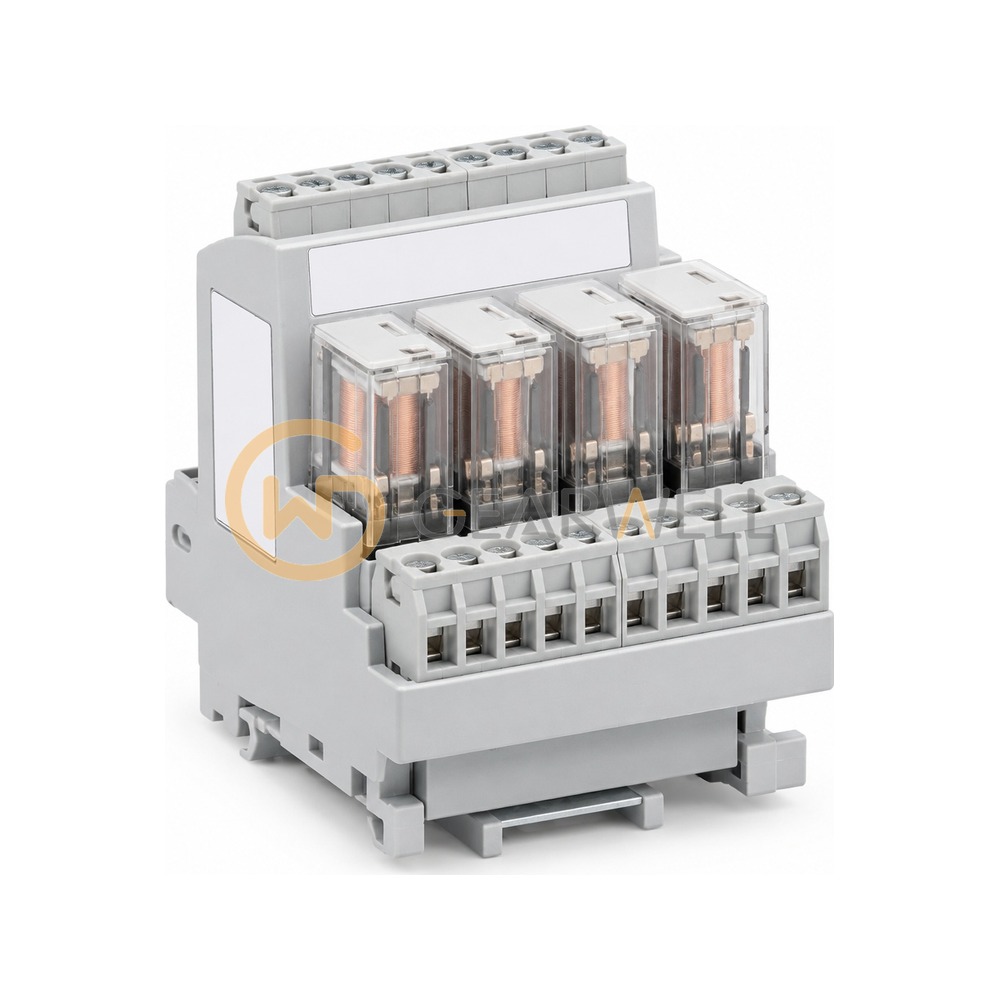

GE IC200MDL930G VersaMax 8-Point Relay Output Module
- Brand
- GE
- Model
- IC200MDL930G
- GEARWELL SKU
- GWP-000025659
- Category
- PLCs & I/O
Key specifications
- Points
- 8 individually isolated Form A relays
- Evidence
- GE Fanuc GFK-1504K (hosted at download.astor.com.pl)
- Load current
- 2.0 A max (5-265 VAC / 5-30 VDC resistive)
- Code suffix "G"
- as collected; hardware revision letter, not listed in the opened manual
- Response time
- 10 ms max on/off
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | GE IC200MDL930G VersaMax 8-Point Relay Output Module |
|---|---|
| Brand | GE |
| Model | IC200MDL930G |
| Category | PLCs & I/O |
| Points | 8 individually isolated Form A relays |
| Evidence | GE Fanuc GFK-1504K (hosted at download.astor.com.pl) |
| Load current | 2.0 A max (5-265 VAC / 5-30 VDC resistive) |
| Code suffix "G" | as collected; hardware revision letter, not listed in the opened manual |
| Response time | 10 ms max on/off |
| Output voltage | 0-125 VDC / 0-265 VAC (47-63 Hz) |
| Backplane current | 245 mA max at 5 V |
| Point-to-point isolation | 250 VAC continuous; 1500 VAC for 1 minute |
