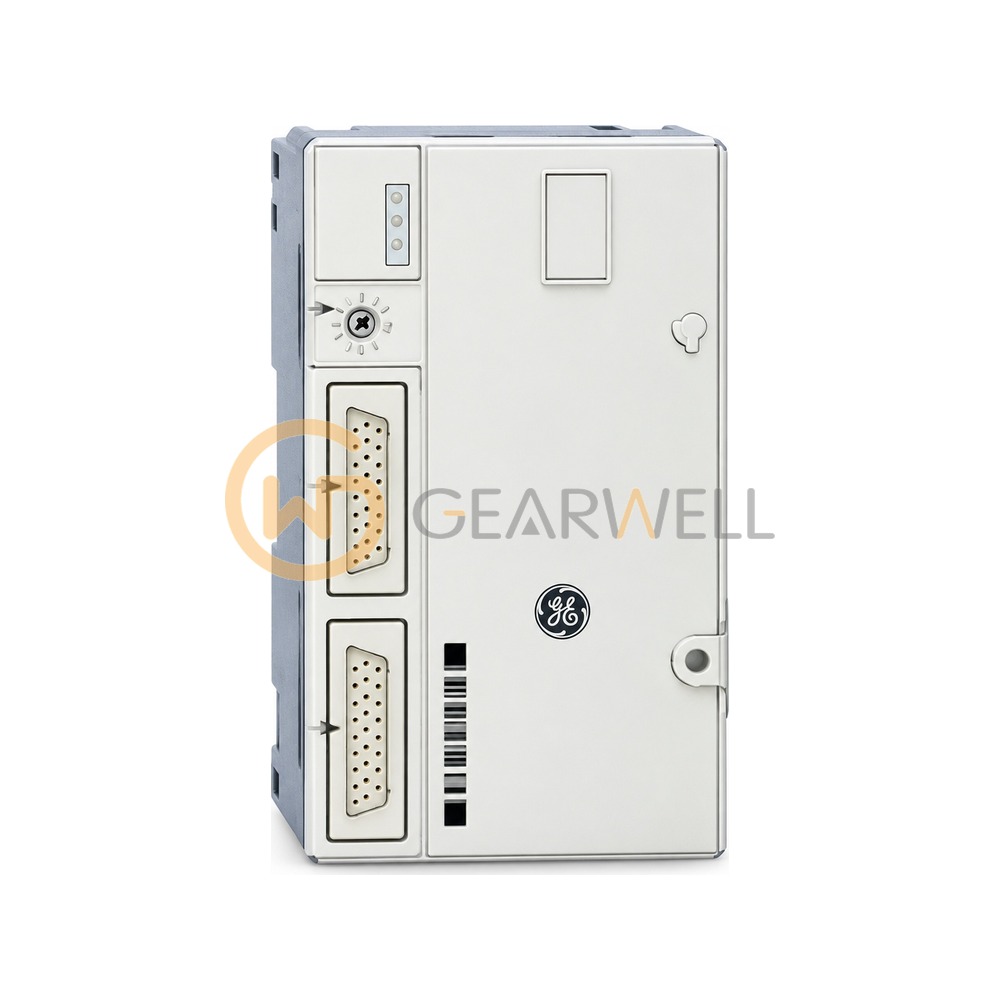

GE IC200ERM002E VersaMax Non-Isolated Expansion Receiver Module
- Brand
- GE
- Model
- IC200ERM002E
- GEARWELL SKU
- GWP-000026540
- Category
- PLCs & I/O
Key specifications
- Evidence
- GE Fanuc GFK-1554B (hosted at qualitrol.com)
- Function
- Non-isolated expansion receiver; installed in slot 0 of the expansion rack
- Data rate
- 5 Mbit/s differential; 2.765 Mbit/s single-ended
- LED indicators
- PWR, EXP RX, SCAN
- Expansion ports
- 2 x 26-pin female D-shell
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | GE IC200ERM002E VersaMax Non-Isolated Expansion Receiver Module |
|---|---|
| Brand | GE |
| Model | IC200ERM002E |
| Category | PLCs & I/O |
| Evidence | GE Fanuc GFK-1554B (hosted at qualitrol.com) |
| Function | Non-isolated expansion receiver; installed in slot 0 of the expansion rack |
| Data rate | 5 Mbit/s differential; 2.765 Mbit/s single-ended |
| LED indicators | PWR, EXP RX, SCAN |
| Expansion ports | 2 x 26-pin female D-shell |
| Revision suffix | E (hardware revision of IC200ERM002; as collected) |
| Max. cable length | 15 m differential; 1 m single-ended |
| Expansion racks per system | up to 7 |
| Backplane current consumption | 70 mA max. (5 V); 20 mA (3.3 V) |
