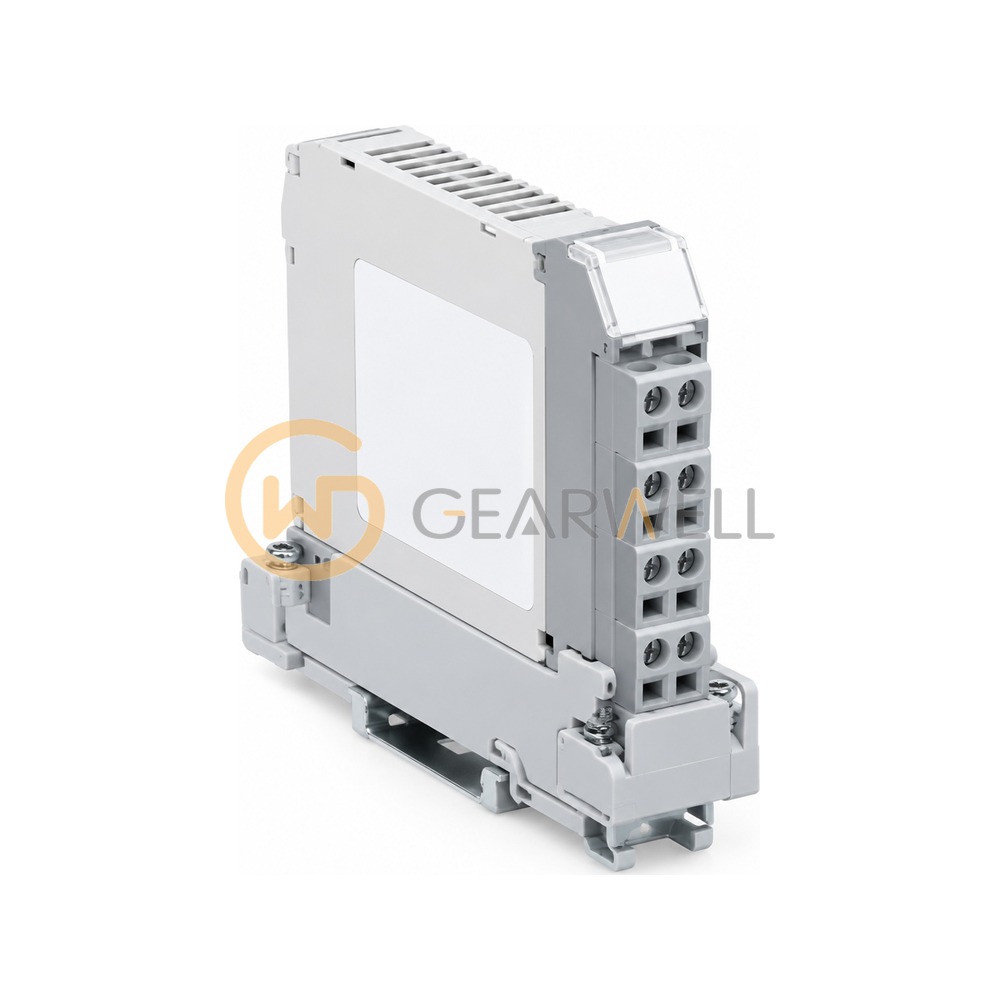

GE IC200ALG630 VersaMax 7-Channel Thermocouple Input Module
- Brand
- GE
- Model
- IC200ALG630
- GEARWELL SKU
- GWP-000025652
- Category
- PLCs & I/O
Key specifications
- Channels
- 7 thermocouple or mV inputs
- Evidence
- GE Fanuc GFK-1504K (hosted at download.astor.com.pl)
- mV spans
- ±19.5 to ±625 mV
- Isolation
- 250 VAC continuous; 1500 VAC for 1 minute
- Resolution
- 15 bits + sign
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | GE IC200ALG630 VersaMax 7-Channel Thermocouple Input Module |
|---|---|
| Brand | GE |
| Model | IC200ALG630 |
| Category | PLCs & I/O |
| Channels | 7 thermocouple or mV inputs |
| Evidence | GE Fanuc GFK-1504K (hosted at download.astor.com.pl) |
| mV spans | ±19.5 to ±625 mV |
| Isolation | 250 VAC continuous; 1500 VAC for 1 minute |
| Resolution | 15 bits + sign |
| Accuracy at 25 °C | ±0.15% (temperature), ±0.2% (voltage) |
| Backplane current | 125 mA at 5 V; 125 mA at 3.3 V |
| Thermocouple types | J, K, T, S, R |
