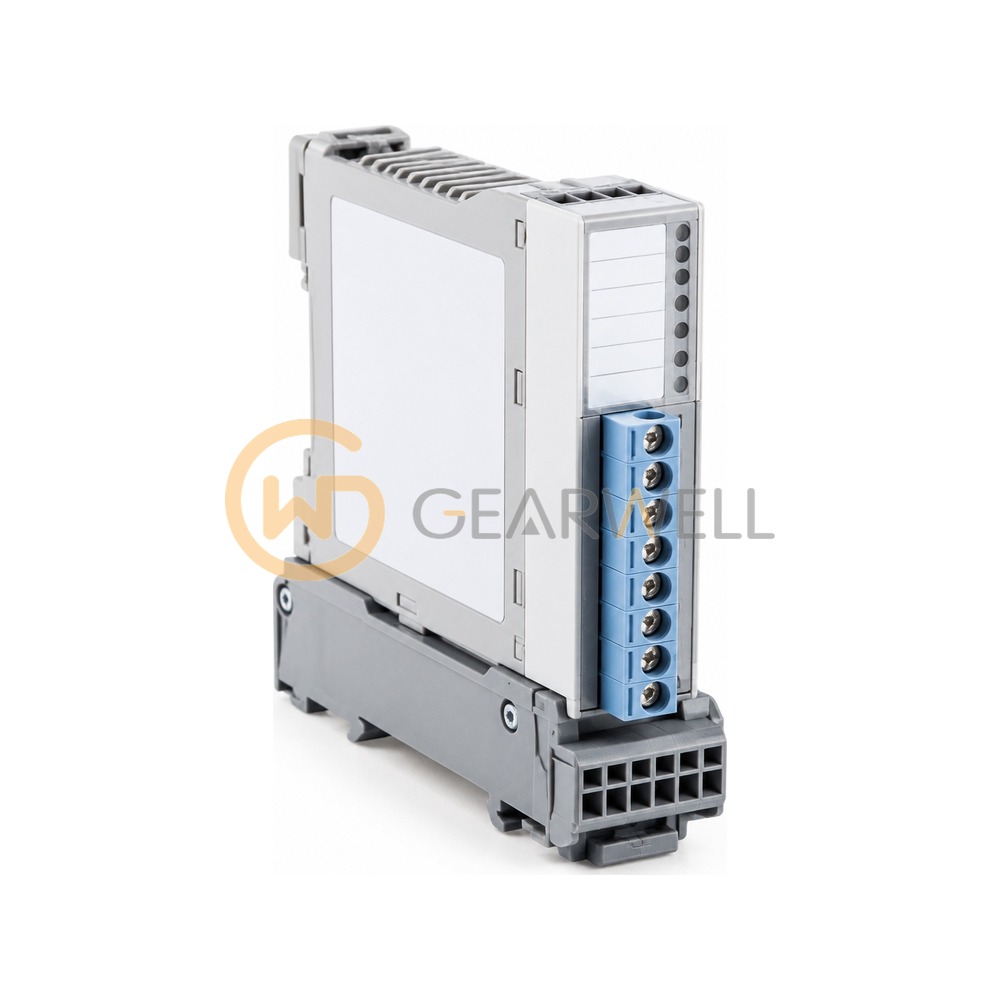

GE IC200ALG331 VersaMax 4-Channel Isolated Analog Output Module
- Brand
- GE
- Model
- IC200ALG331
- GEARWELL SKU
- GWP-000025650
- Category
- PLCs & I/O
Key specifications
- Channels
- 4, isolated
- Evidence
- GE Fanuc GFK-1504K (hosted at download.astor.com.pl)
- Resolution
- 16 bit (381 nA / 381 µV per LSB)
- Update rate
- 7 ms max
- Output range
- 4-20 mA (current) / ±10 VDC (voltage)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | GE IC200ALG331 VersaMax 4-Channel Isolated Analog Output Module |
|---|---|
| Brand | GE |
| Model | IC200ALG331 |
| Category | PLCs & I/O |
| Channels | 4, isolated |
| Evidence | GE Fanuc GFK-1504K (hosted at download.astor.com.pl) |
| Resolution | 16 bit (381 nA / 381 µV per LSB) |
| Update rate | 7 ms max |
| Output range | 4-20 mA (current) / ±10 VDC (voltage) |
| External supply | +19.5 to +30 VDC, 100 mA max plus loads |
| Accuracy at 25 °C | ±0.1% max of full scale |
| Channel-to-channel isolation | 250 VAC continuous; 1500 VAC for 1 minute |
