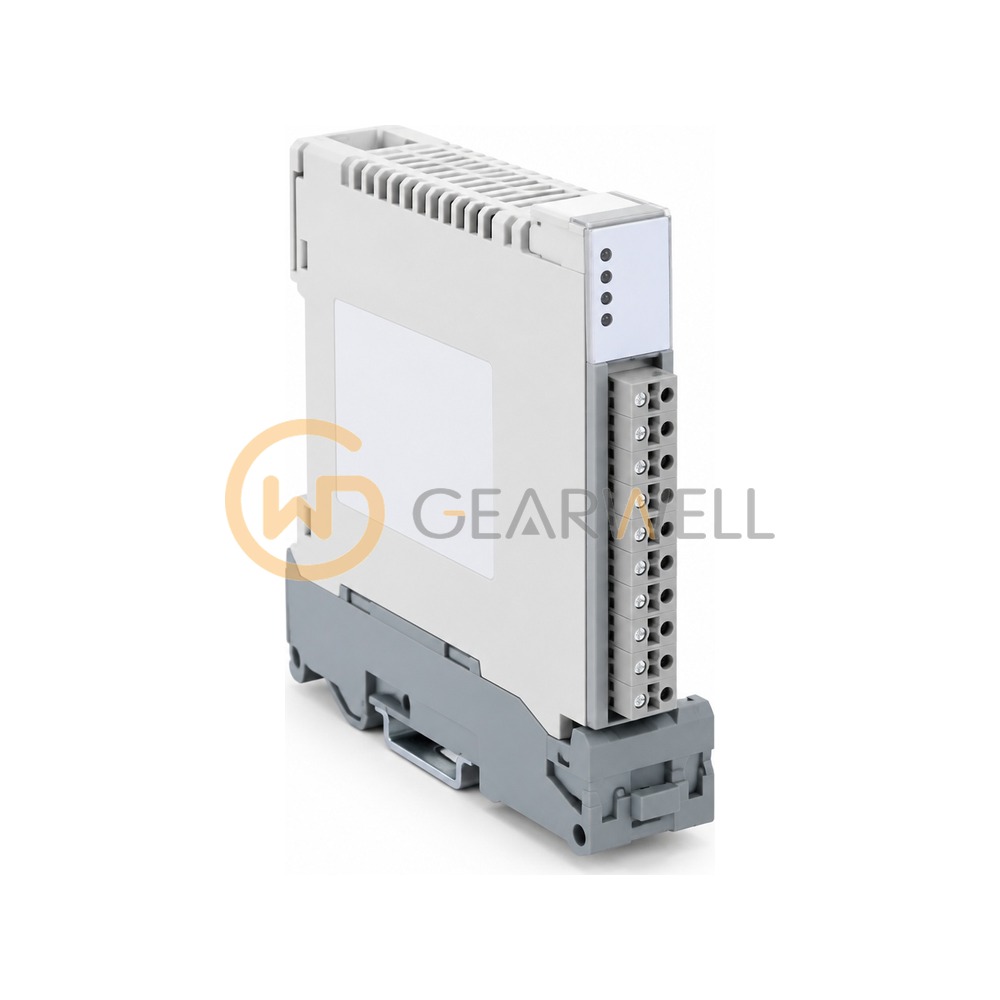

GE IC200ALG327 VersaMax 12-Channel Voltage Analog Output Module
- Brand
- GE
- Model
- IC200ALG327
- GEARWELL SKU
- GWP-000025649
- Category
- PLCs & I/O
Key specifications
- Load
- 5000 Ω min, 1.0 µF max
- Channels
- 12 single-ended, one group
- Evidence
- GE Fanuc GFK-1504K (hosted at download.astor.com.pl)
- Resolution
- 1.25 mV = 4 counts (13 bit)
- Update rate
- 15 ms max
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | GE IC200ALG327 VersaMax 12-Channel Voltage Analog Output Module |
|---|---|
| Brand | GE |
| Model | IC200ALG327 |
| Category | PLCs & I/O |
| Load | 5000 Ω min, 1.0 µF max |
| Channels | 12 single-ended, one group |
| Evidence | GE Fanuc GFK-1504K (hosted at download.astor.com.pl) |
| Resolution | 1.25 mV = 4 counts (13 bit) |
| Update rate | 15 ms max |
| Output range | -10.24 to +10.24 VDC or 0 to +10.24 VDC |
| External supply | +18 to +30 VDC, 112 mA max |
| Accuracy at 25 °C | ±0.3% typical, ±0.5% max of full scale |
