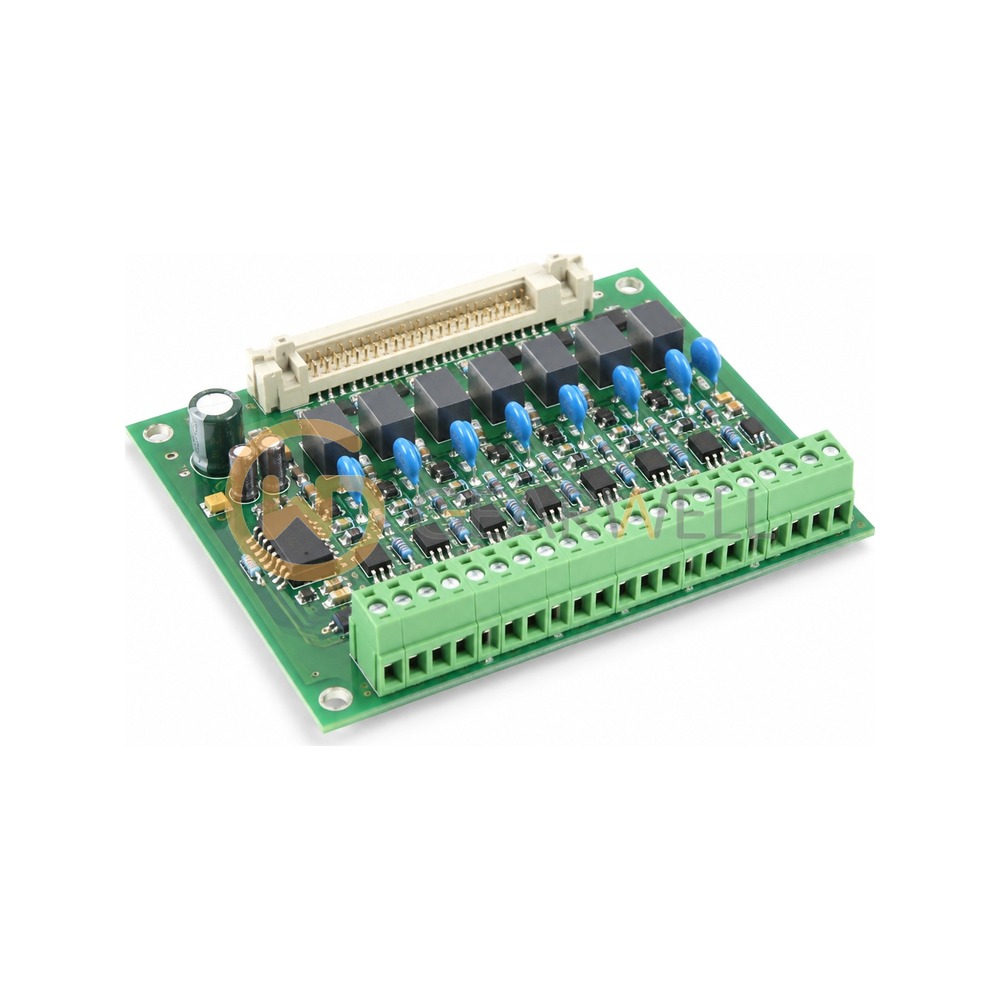

GE DS200TBQCG1AAA Mark V Analog Termination Board (TBQC)
- Brand
- GE
- Model
- DS200TBQCG1AAA
- GEARWELL SKU
- GWP-000025298
- Category
- PLCs & I/O
Key specifications
- Series
- Mark V
- Jumpers
- 15
- Evidence
- AX Control (no current official GE page or archived GE PDF found)
- Connectors
- three 40-pin, three 34-pin
- Product type
- RST Analog Termination Board (Analog Input Milliamp I/O Termination Module)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | GE DS200TBQCG1AAA Mark V Analog Termination Board (TBQC) |
|---|---|
| Brand | GE |
| Model | DS200TBQCG1AAA |
| Category | PLCs & I/O |
| Series | Mark V |
| Jumpers | 15 |
| Evidence | AX Control (no current official GE page or archived GE PDF found) |
| Connectors | three 40-pin, three 34-pin |
| Product type | RST Analog Termination Board (Analog Input Milliamp I/O Termination Module) |
| Terminal blocks | 2 |
| TBQC connections | 5: JBR, JFR, TEST, JBS/T, JFS/T |
| Functional acronym | TBQC |
| Instruction manual | GEH-6153 |
