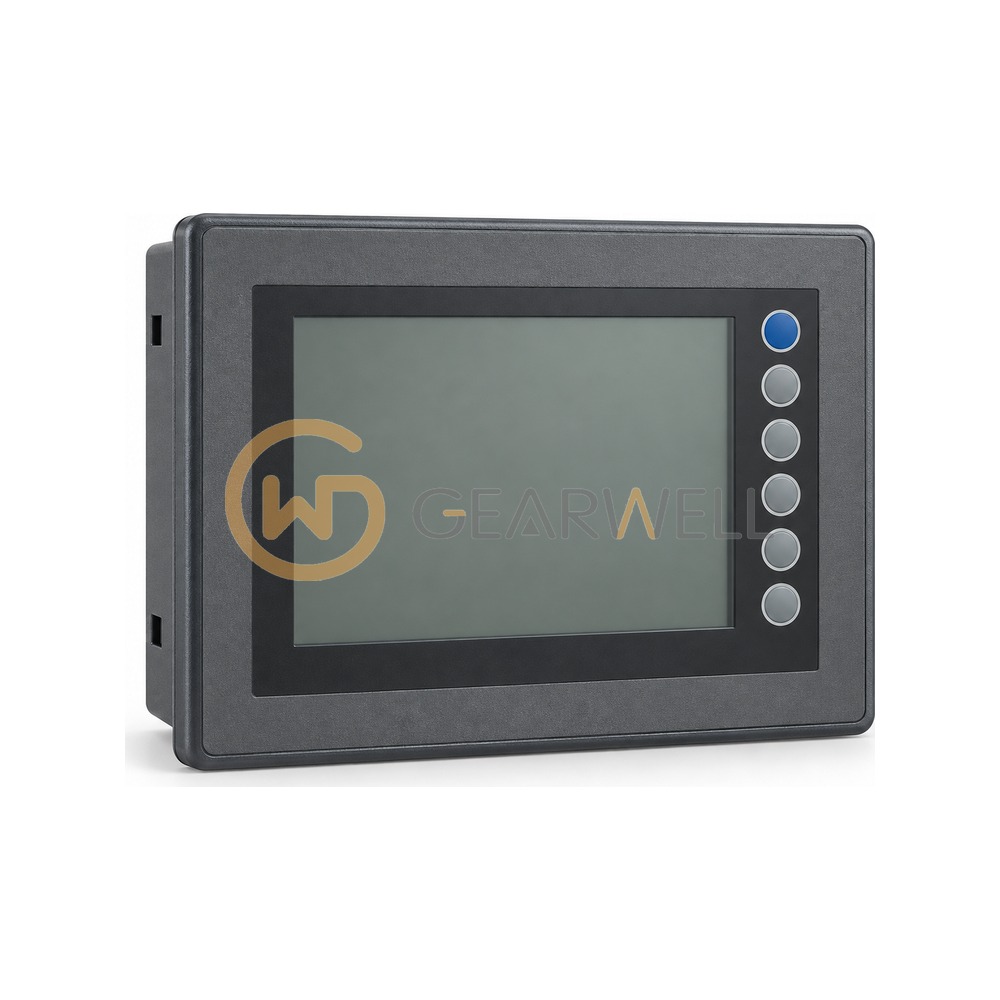

Fuji Electric UG221H-LR24 Simple POD 5.7" Monochrome HMI
- Brand
- Fuji Electric
- Model
- UG221H-LR24
- GEARWELL SKU
- GWP-000013320
- Category
- HMIs & Industrial PCs
Key specifications
- Series
- Simple POD UG221H (5.7 type), discontinued Dec. 2008
- Code "LR24"
- as collected; not listed in the official type table (UG221H-LE4 / LR4 / SR4)
- Resolution
- 320 x 240 dots
- Rated voltage
- 24 V DC
- Front protection
- IP65 (with gasket)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Fuji Electric UG221H-LR24 Simple POD 5.7" Monochrome HMI |
|---|---|
| Brand | Fuji Electric |
| Model | UG221H-LR24 |
| Category | HMIs & Industrial PCs |
| Series | Simple POD UG221H (5.7 type), discontinued Dec. 2008 |
| Code "LR24" | as collected; not listed in the official type table (UG221H-LE4 / LR4 / SR4) |
| Resolution | 320 x 240 dots |
| Rated voltage | 24 V DC |
| Front protection | IP65 (with gasket) |
| Power consumption | 10 W or less |
| Closest listed type | UG221H-LR4: monochrome LCD QVGA, SRAM, built-in clock, 24 V DC |
