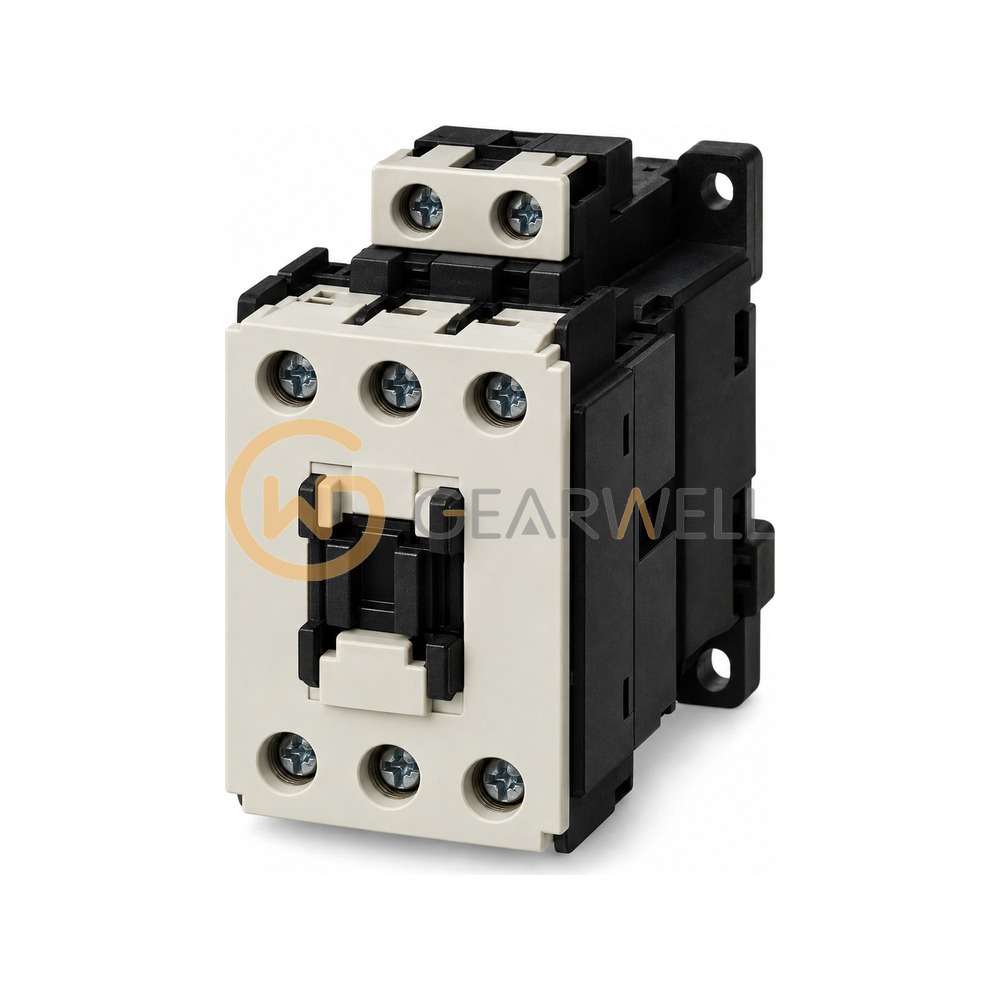

Fuji Electric SC-E0345-C SC-E03 Magnetic Contactor
- Brand
- Fuji Electric
- Model
- SC-E0345-C
- GEARWELL SKU
- GWP-000016494
- Category
- Contactors & Starters
Key specifications
- Base type
- SC-E03 (Fuji Electric China SC series)
- Code suffix "45"
- as collected; not listed in the official model-number table
- Conventional free-air thermal current
- 20 A
- Rated operational current AC-3, 200-240 V
- 12 A
- Rated operational current AC-3, 380-440 V
- 12 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Fuji Electric SC-E0345-C SC-E03 Magnetic Contactor |
|---|---|
| Brand | Fuji Electric |
| Model | SC-E0345-C |
| Category | Contactors & Starters |
| Base type | SC-E03 (Fuji Electric China SC series) |
| Code suffix "45" | as collected; not listed in the official model-number table |
| Conventional free-air thermal current | 20 A |
| Rated operational current AC-3, 200-240 V | 12 A |
| Rated operational current AC-3, 380-440 V | 12 A |
| Rated capacity AC-3, 3-phase motor, 200-240 V | 3 kW |
| Rated capacity AC-3, 3-phase motor, 380-440 V | 5.5 kW |
