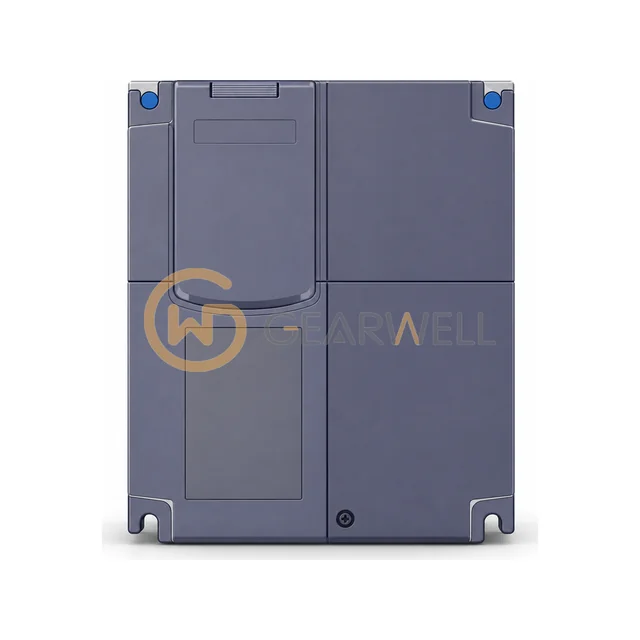

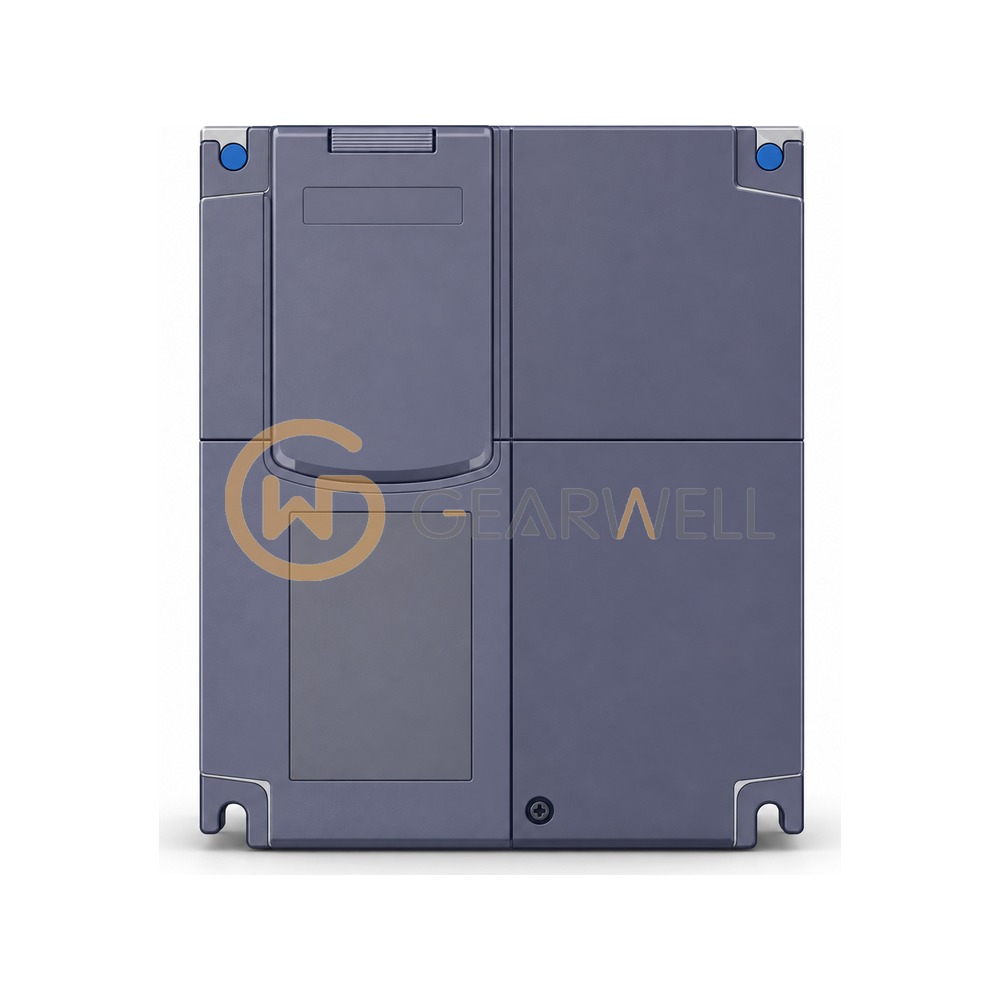

Fuji Electric FRN15LM1S-4C FRENIC-Lift Elevator AC Drive 15kW
- Brand
- Fuji Electric
- Model
- FRN15LM1S-4C
- GEARWELL SKU
- GWP-000013319
- Category
- Variable Frequency Drives
Key specifications
- Model key
- FRN 15 LM1 S -4 C: 15 kW, lift, standard, 3-phase 400 V, destination China
- Rated voltage
- 3-phase 380-480 V, 50/60 Hz
- Rated capacity
- 24 kVA
- Applicable motor
- 15 kW
- Overload capacity
- 64.0 A (10 s)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Fuji Electric FRN15LM1S-4C FRENIC-Lift Elevator AC Drive 15kW |
|---|---|
| Brand | Fuji Electric |
| Model | FRN15LM1S-4C |
| Category | Variable Frequency Drives |
| Model key | FRN 15 LM1 S -4 C: 15 kW, lift, standard, 3-phase 400 V, destination China |
| Rated voltage | 3-phase 380-480 V, 50/60 Hz |
| Rated capacity | 24 kVA |
| Applicable motor | 15 kW |
| Overload capacity | 64.0 A (10 s) |
| Rated output current | 32.0 A |
| Rated input current (with / without DCR) | 28.8 / 43.8 A |
