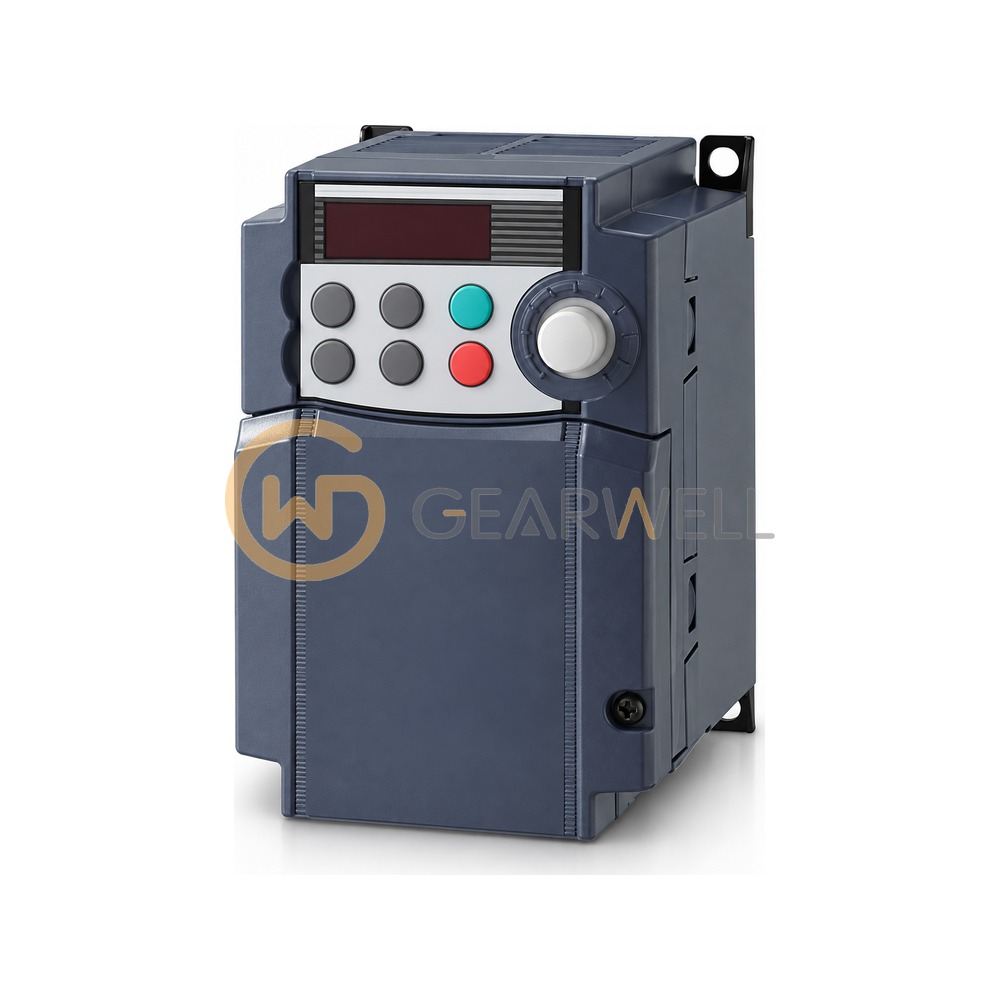

Fuji Electric FRN0007C2S-4C FRENIC-Mini C2 2.2kW 400V AC Drive
- Brand
- Fuji Electric
- Model
- FRN0007C2S-4C
- GEARWELL SKU
- GWP-000012964
- Category
- Variable Frequency Drives
Key specifications
- Weight
- 1.7 kg
- Protection
- IP20 (IEC 60529) / UL open type
- Input power
- 3-phase 380-480 V, 50/60 Hz
- Rated capacity
- 4.8 kVA
- Applicable motor
- 2.2 kW
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Fuji Electric FRN0007C2S-4C FRENIC-Mini C2 2.2kW 400V AC Drive |
|---|---|
| Brand | Fuji Electric |
| Model | FRN0007C2S-4C |
| Category | Variable Frequency Drives |
| Weight | 1.7 kg |
| Protection | IP20 (IEC 60529) / UL open type |
| Input power | 3-phase 380-480 V, 50/60 Hz |
| Rated capacity | 4.8 kVA |
| Applicable motor | 2.2 kW |
| Overload capability | 150% of rated current for 1 min |
| Rated output current | 6.3 (5.5) A |
| Rated input current (with DCR / without) | 4.4 / 8.2 A |
