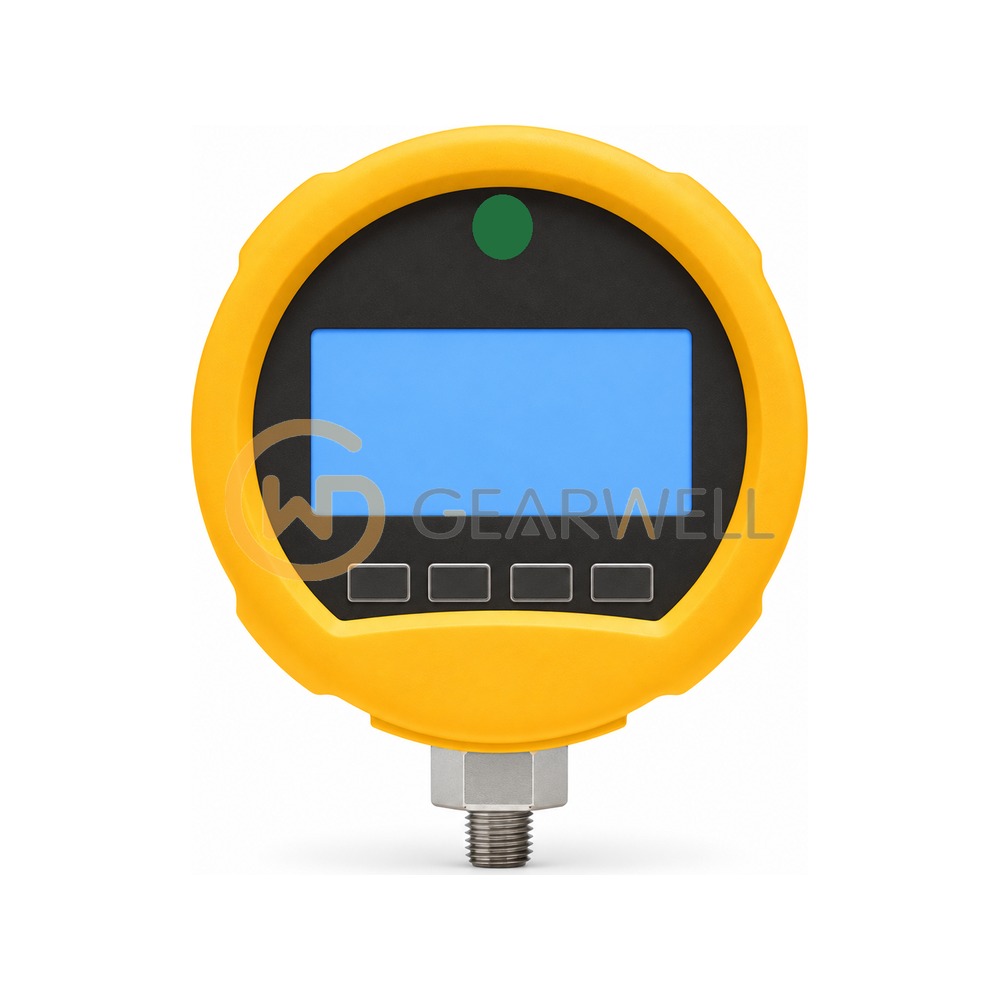

FLUKE 700G08 700G Precision Pressure Gauge Calibrator 1000 psig
- Brand
- FLUKE
- Model
- 700G08
- GEARWELL SKU
- GWP-000012962
- Category
- Test & Measurement
Key specifications
- Range
- -14 to 1000 psi (-0.97 to 69 bar)
- Weight
- 0.56 kg with holster
- Display
- 5-1/2 digits, 20-segment bar graph
- Accuracy
- Positive pressure ±0.05% FS; vacuum ±0.1% FS
- Enclosure
- IP67
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | FLUKE 700G08 700G Precision Pressure Gauge Calibrator 1000 psig |
|---|---|
| Brand | FLUKE |
| Model | 700G08 |
| Category | Test & Measurement |
| Range | -14 to 1000 psi (-0.97 to 69 bar) |
| Weight | 0.56 kg with holster |
| Display | 5-1/2 digits, 20-segment bar graph |
| Accuracy | Positive pressure ±0.05% FS; vacuum ±0.1% FS |
| Enclosure | IP67 |
| Resolution | 0.1 psi / 0.001 bar |
| Battery life | 1,500 h without backlight |
| Burst pressure | 4000 psi / 266 bar |
| Pressure connection | 1/4 in NPT male |
| Dimensions (H x W x D) | 12.7 x 11.4 x 3.7 cm |
