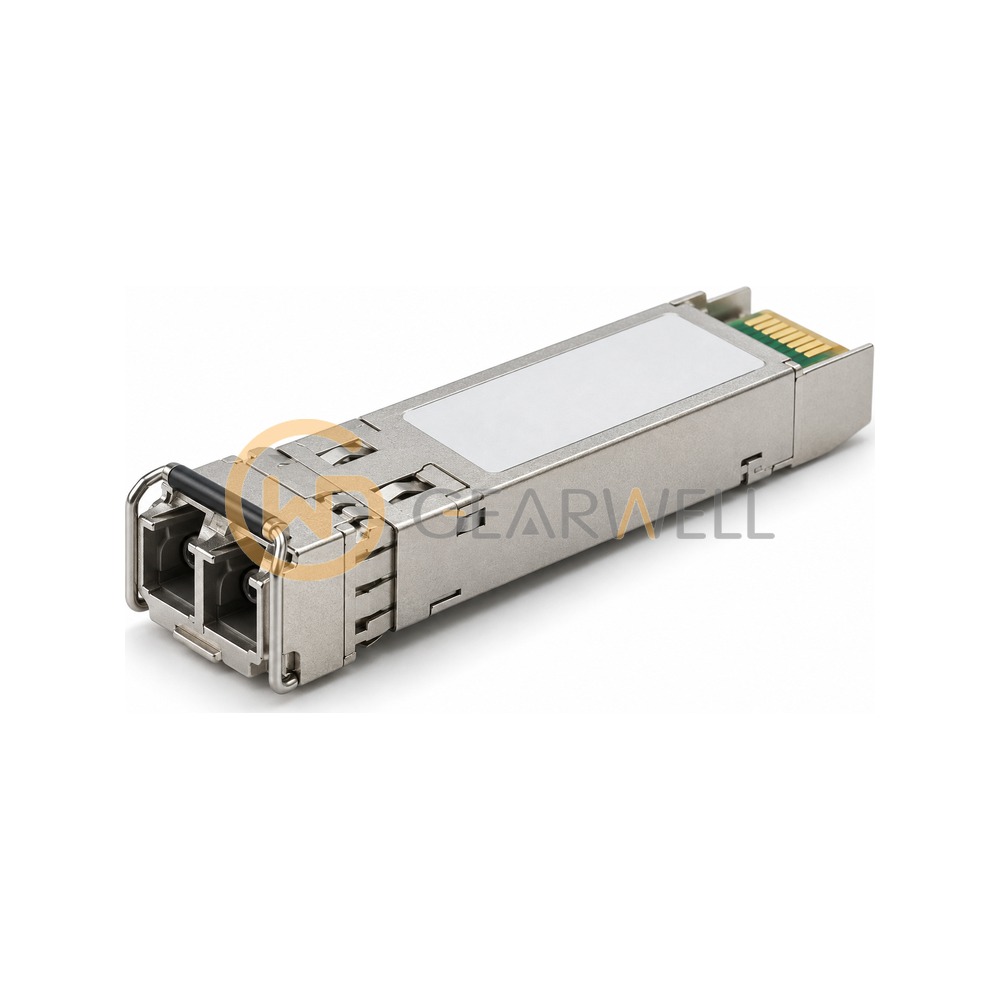

Finisar FTLF8519P2BTL-HM 850nm Short-Wavelength SFP Transceiver
- Brand
- Finisar
- Model
- FTLF8519P2BTL-HM
- GEARWELL SKU
- GWP-000013379
- Category
- Industrial Communication
Key specifications
- Reach
- 500 m on 50/125 µm MMF; 300 m on 62.5/125 µm MMF
- Bail (x = B)
- Narrow extraction bail
- Connector
- Duplex LC
- Data rate
- up to 2.125 Gb/s (1.25 Gb/s 1000Base-SX, 1.063/2.125 Gb/s Fibre Channel)
- Diagnostics
- Digital diagnostics via 2-wire serial bus (SFP MSA)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Finisar FTLF8519P2BTL-HM 850nm Short-Wavelength SFP Transceiver |
|---|---|
| Brand | Finisar |
| Model | FTLF8519P2BTL-HM |
| Category | Industrial Communication |
| Reach | 500 m on 50/125 µm MMF; 300 m on 62.5/125 µm MMF |
| Bail (x = B) | Narrow extraction bail |
| Connector | Duplex LC |
| Data rate | up to 2.125 Gb/s (1.25 Gb/s 1000Base-SX, 1.063/2.125 Gb/s Fibre Channel) |
| Diagnostics | Digital diagnostics via 2-wire serial bus (SFP MSA) |
| Code suffix "-HM" | as collected; not listed in the Finisar FTLF8519P2xTL product selection |
| Supply voltage | 3.3 V |
| Wavelength / laser | 850 nm oxide VCSEL |
| Operating temperature | -40 to +85 °C |
