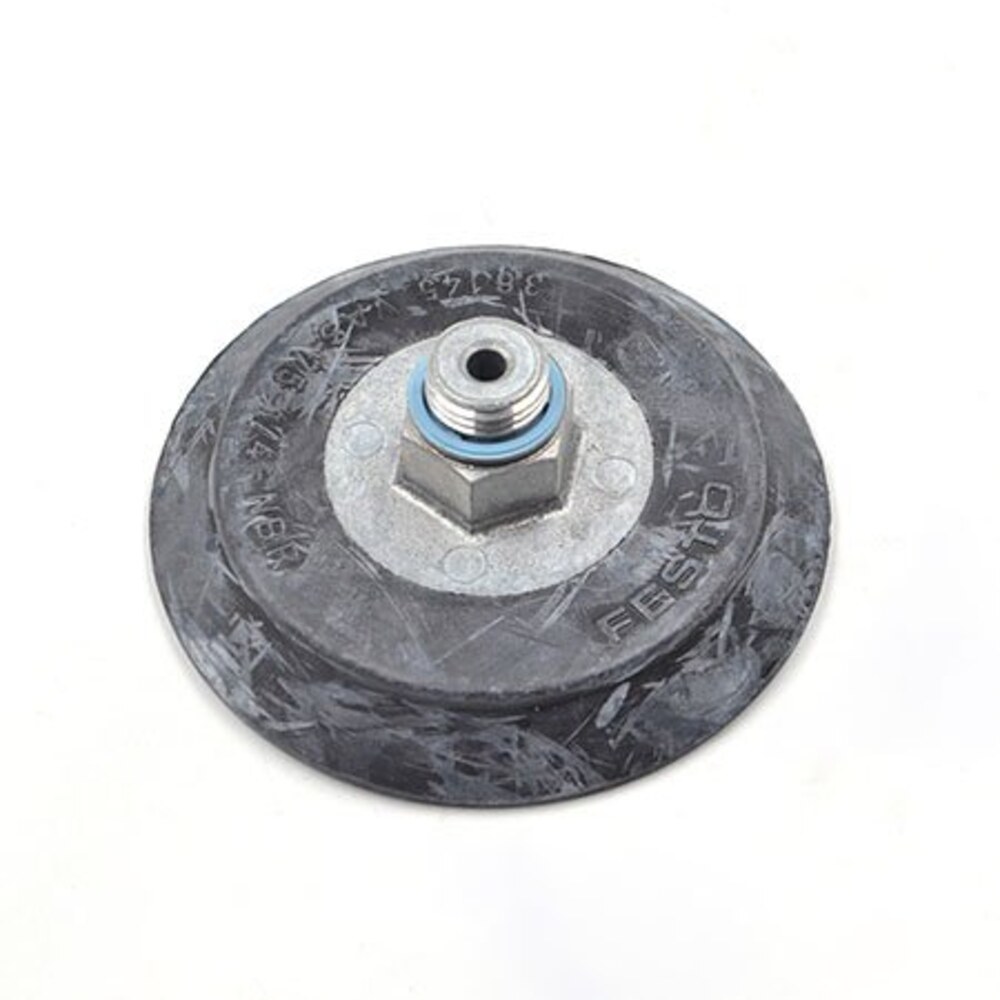

FESTO VAS-75-1/4-NBR Suction cup
- Brand
- FESTO
- Model
- VAS-75-1/4-NBR
- GEARWELL SKU
- GWP-000003709
- Category
- Industrial Automation Parts
Key specifications
- Nominal size
- 4 mm
- Holding force at nominal operating pressure
- 197 N
- Vacuum connection
- G1/4
- Operating pressure
- -0.095...0 MPa (-0.95...0 bar)
- Ambient temperature
- -20...80 °C
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | FESTO VAS-75-1/4-NBR Suction cup |
|---|---|
| Brand | FESTO |
| Model | VAS-75-1/4-NBR |
| Category | Industrial Automation Parts |
| Nominal size | 4 mm |
| Holding force at nominal operating pressure | 197 N |
| Vacuum connection | G1/4 |
| Operating pressure | -0.095...0 MPa (-0.95...0 bar) |
| Ambient temperature | -20...80 °C |
| Suction cup diameter | 75 mm |
| Suction cup material | NBR |
| Effective suction diameter | 60 mm |
