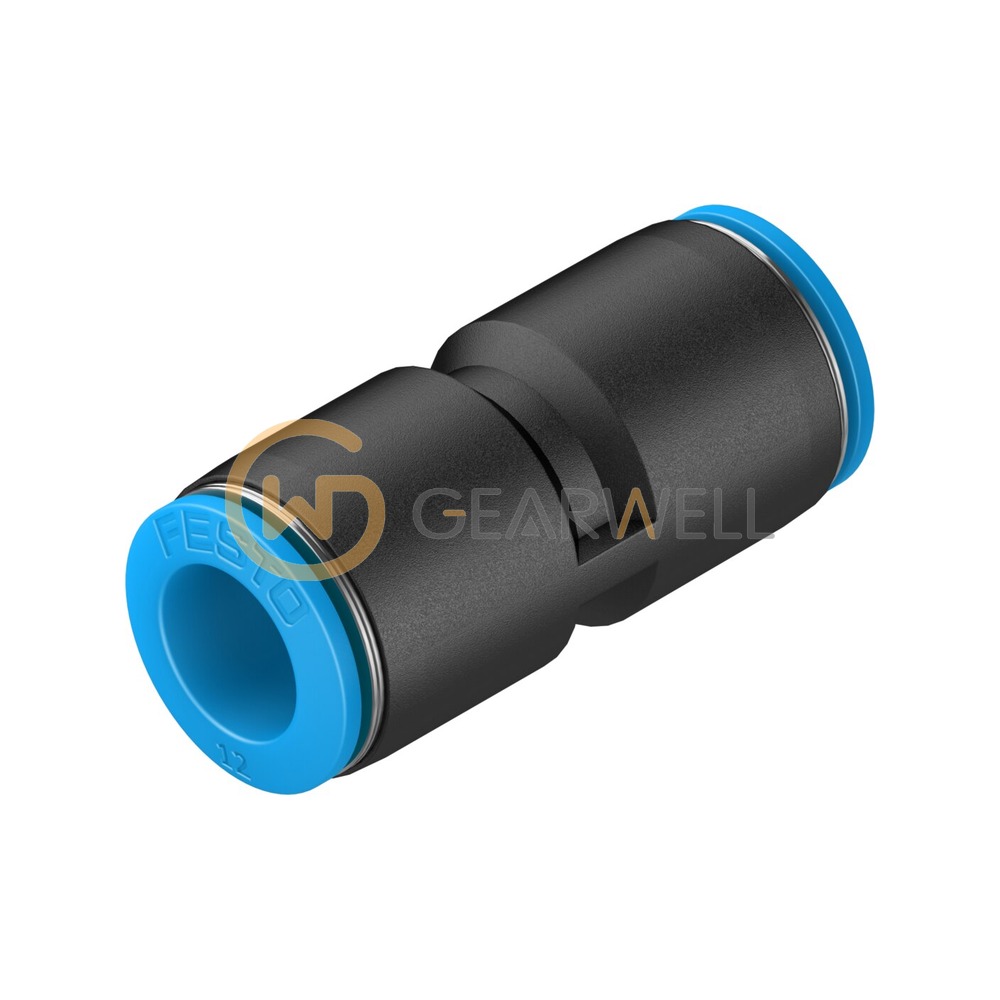

FESTO QS-12 Push-In Connector
- Brand
- FESTO
- Model
- QS-12
- GEARWELL SKU
- GWP-000011599
- Category
- Fittings, Tubing & Vacuum
Key specifications
- Size
- Standard
- Pack size
- 10
- Order code
- QS-12
- Nominal width
- 11 mm
- Festo part number
- 153035
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | FESTO QS-12 Push-In Connector |
|---|---|
| Brand | FESTO |
| Model | QS-12 |
| Category | Fittings, Tubing & Vacuum |
| Size | Standard |
| Pack size | 10 |
| Order code | QS-12 |
| Nominal width | 11 mm |
| Festo part number | 153035 |
| Ambient temperature | -10 ... 80 °C |
| Tubing insertion depth | 23.4 mm |
| Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Temperature-dependent operating pressure | -0.095 ... 1.4 MPa |
| Operating pressure for entire temperature range | -0.95 ... 6 bar |
