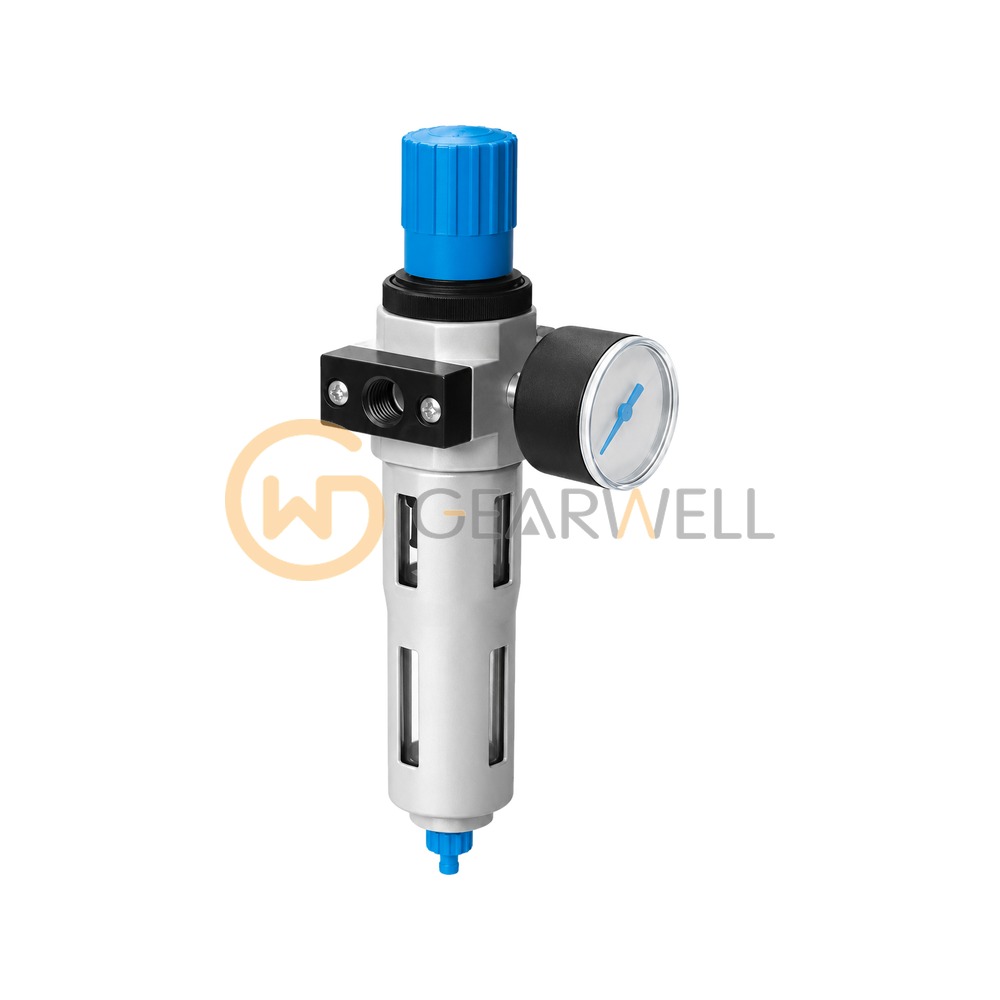

FESTO LFR-1-D-5M-MAXI D Series Filter Regulator
- Brand
- FESTO
- Model
- LFR-1-D-5M-MAXI
- GEARWELL SKU
- GWP-000015199
- Category
- Air Preparation
Key specifications
- Part number
- 162725
- Product weight
- 1470 g
- Condensate drain
- Manual, rotating
- Housing material
- Die-cast zinc
- Operating pressure
- 1-16 bar
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | FESTO LFR-1-D-5M-MAXI D Series Filter Regulator |
|---|---|
| Brand | FESTO |
| Model | LFR-1-D-5M-MAXI |
| Category | Air Preparation |
| Part number | 162725 |
| Product weight | 1470 g |
| Condensate drain | Manual, rotating |
| Housing material | Die-cast zinc |
| Operating pressure | 1-16 bar |
| Grade of filtration | 5 µm |
| Pneumatic connection | G1 |
| Pressure regulation range | 0.5-12 bar |
| Standard nominal flow rate | 8000 l/min |
