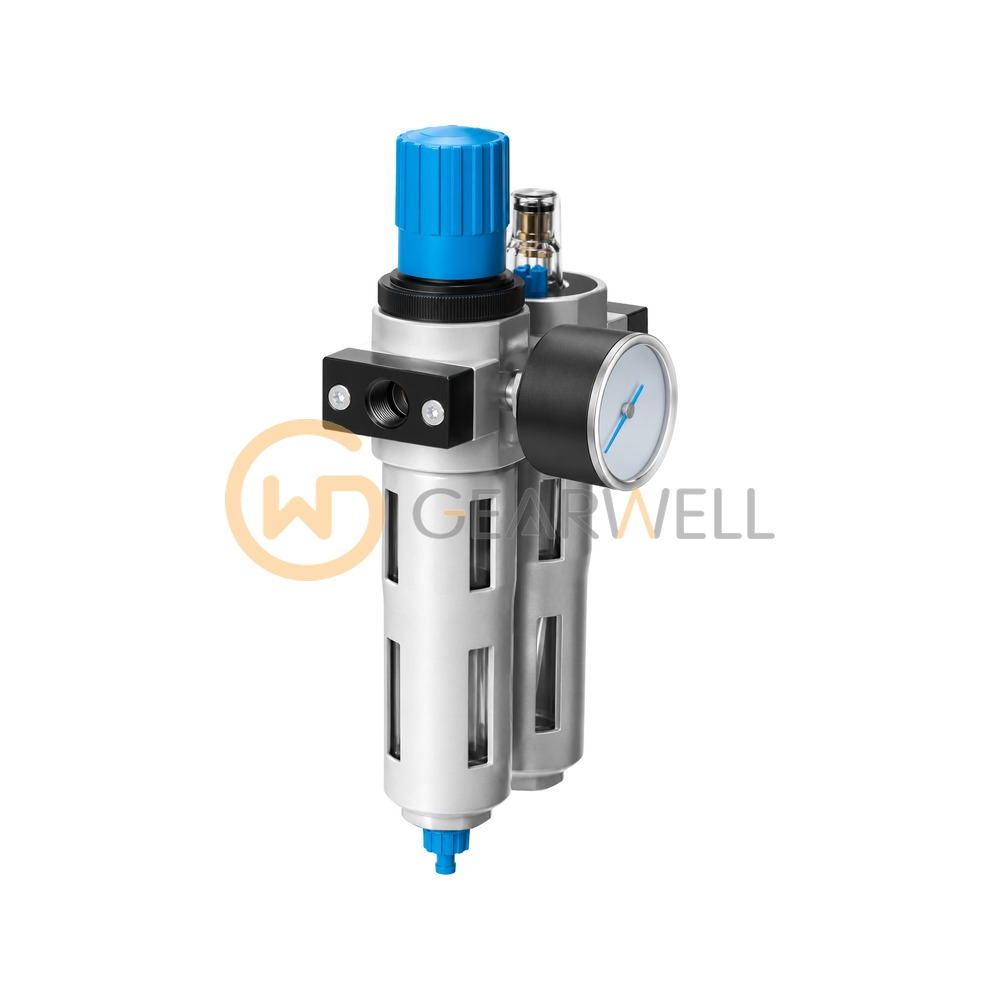

FESTO FRC-1/2-D-5M-MIDI-A-MPA D Series Service Unit
- Brand
- FESTO
- Model
- FRC-1/2-D-5M-MIDI-A-MPA
- GEARWELL SKU
- GWP-000015197
- Category
- Air Preparation
Key specifications
- Design
- Filter regulator with pressure gauge + proportional mist lubricator
- Part number
- 8002364
- Product weight
- 1440 g
- Condensate drain
- Fully automatic
- Operating pressure
- 2-12 bar
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | FESTO FRC-1/2-D-5M-MIDI-A-MPA D Series Service Unit |
|---|---|
| Brand | FESTO |
| Model | FRC-1/2-D-5M-MIDI-A-MPA |
| Category | Air Preparation |
| Design | Filter regulator with pressure gauge + proportional mist lubricator |
| Part number | 8002364 |
| Product weight | 1440 g |
| Condensate drain | Fully automatic |
| Operating pressure | 2-12 bar |
| Grade of filtration | 5 µm |
| Pneumatic connection | G1/2 |
| Pressure regulation range | 0.5-12 bar |
| Standard nominal flow rate | 1800 l/min |
