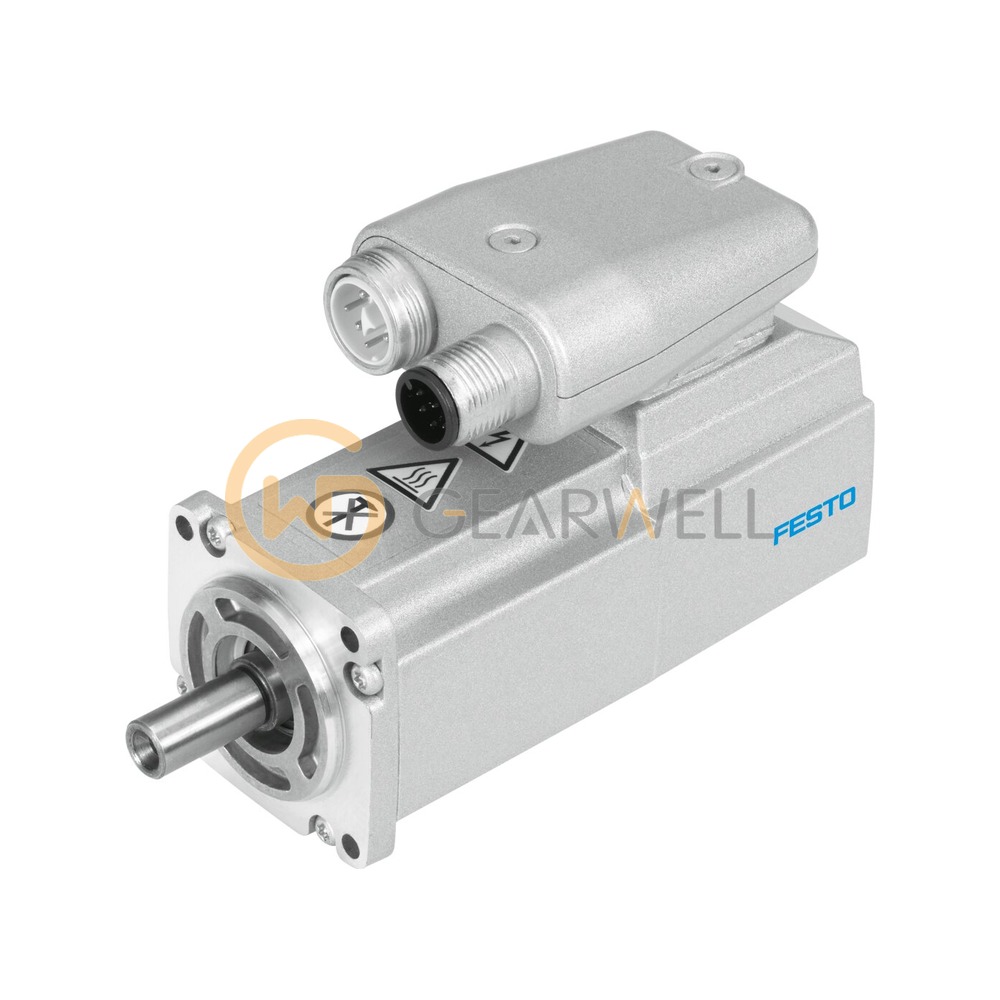

FESTO EMME-AS-40-S-LV-AM EMME-AS Servo Motor
- Brand
- FESTO
- Model
- EMME-AS-40-S-LV-AM
- GEARWELL SKU
- GWP-000009754
- Category
- Servo Systems
Key specifications
- Peak torque
- 0.7 Nm
- Nominal torque
- 0.12 Nm
- Motor nominal power
- 110 W
- Degree of protection
- IP21
- Nominal rotary speed
- 9000 rpm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | FESTO EMME-AS-40-S-LV-AM EMME-AS Servo Motor |
|---|---|
| Brand | FESTO |
| Model | EMME-AS-40-S-LV-AM |
| Category | Servo Systems |
| Peak torque | 0.7 Nm |
| Nominal torque | 0.12 Nm |
| Motor nominal power | 110 W |
| Degree of protection | IP21 |
| Nominal rotary speed | 9000 rpm |
| Motor nominal current | 0.7 A |
| Rotor position sensor | Absolute encoder, multi-turn |
| Nominal operating voltage DC | 360 V |
