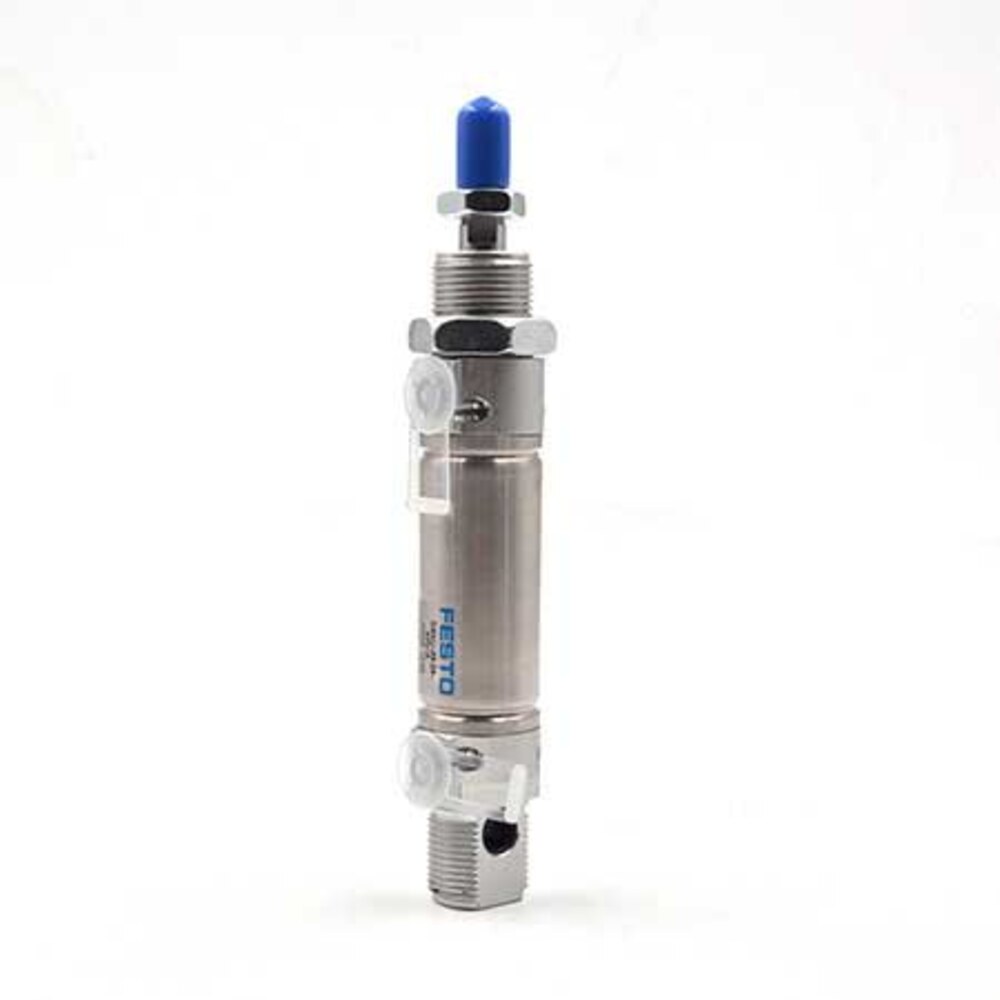

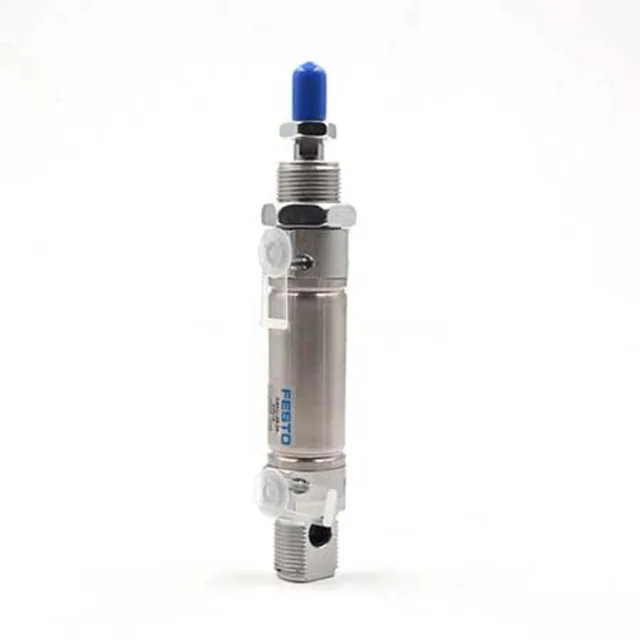

FESTO DSNU-25-25-PPV-A Round Cylinders
- Brand
- FESTO
- Model
- DSNU-25-25-PPV-A
- GEARWELL SKU
- GWP-000002895
- Category
- Industrial Automation Parts
Key specifications
- Stroke
- 25 mm
- Standard
- CETOP RP 52 P / ISO 6432
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Piston diameter
- 25 mm
- Mode of operation
- Double-acting
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | FESTO DSNU-25-25-PPV-A Round Cylinders |
|---|---|
| Brand | FESTO |
| Model | DSNU-25-25-PPV-A |
| Category | Industrial Automation Parts |
| Stroke | 25 mm |
| Standard | CETOP RP 52 P / ISO 6432 |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Piston diameter | 25 mm |
| Mode of operation | Double-acting |
| Piston rod thread | M10x1.25 |
| Operating pressure | 0.1...1 MPa (1...10 bar) |
| Ambient temperature | -20...80 °C |
