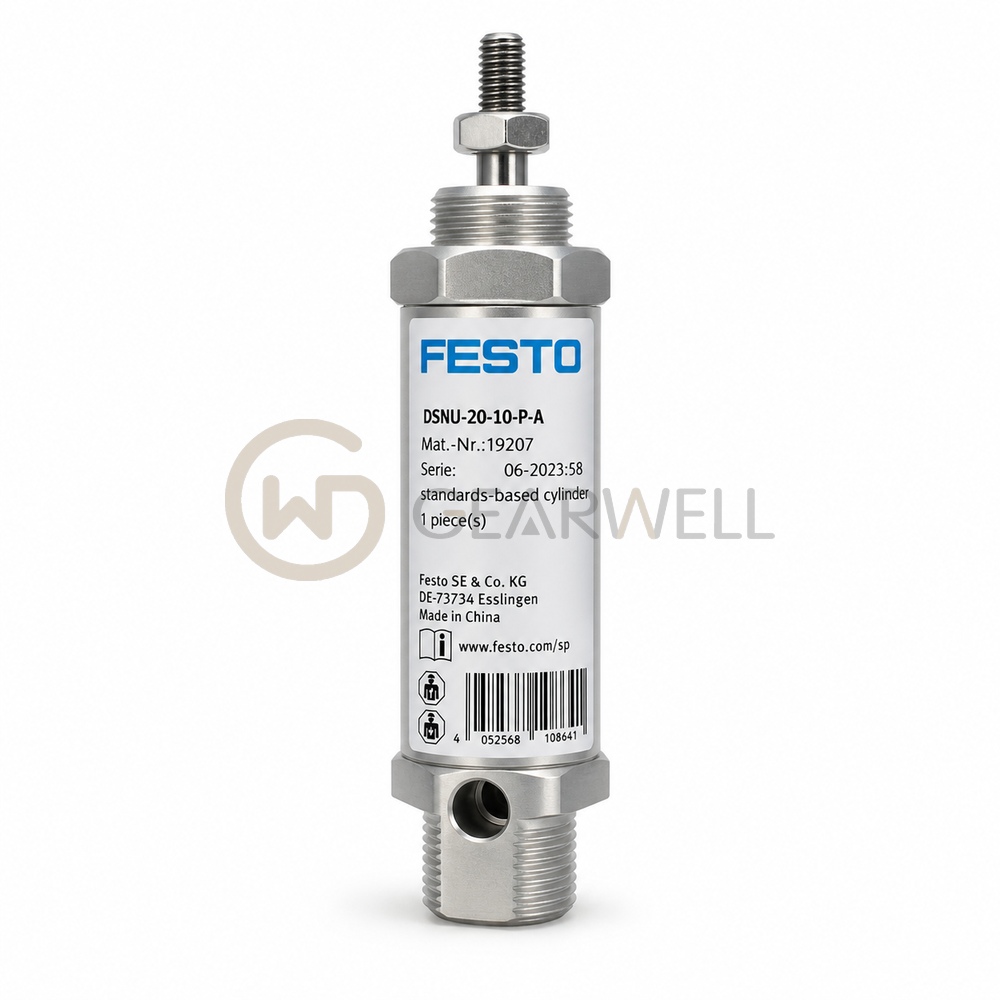

FESTO DSNU-20-10-P-A Cylinder
- Brand
- FESTO
- Model
- DSNU-20-10-P-A
- GEARWELL SKU
- GWP-000000808
- Category
- Pneumatics & Vacuum
Key specifications
- Stroke
- 10 mm
- Standard
- CETOP RP 52 P / ISO 6432
- Cushioning
- Elastic cushioning rings/plates at both ends
- Piston diameter
- 20 mm
- Mode of operation
- Double-acting
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | FESTO DSNU-20-10-P-A Cylinder |
|---|---|
| Brand | FESTO |
| Model | DSNU-20-10-P-A |
| Category | Pneumatics & Vacuum |
| Stroke | 10 mm |
| Standard | CETOP RP 52 P / ISO 6432 |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Piston diameter | 20 mm |
| Mode of operation | Double-acting |
| Piston rod thread | M8 |
| Operating pressure | 0.1...1 MPa (1...10 bar) |
| Ambient temperature | -20...80 °C |
