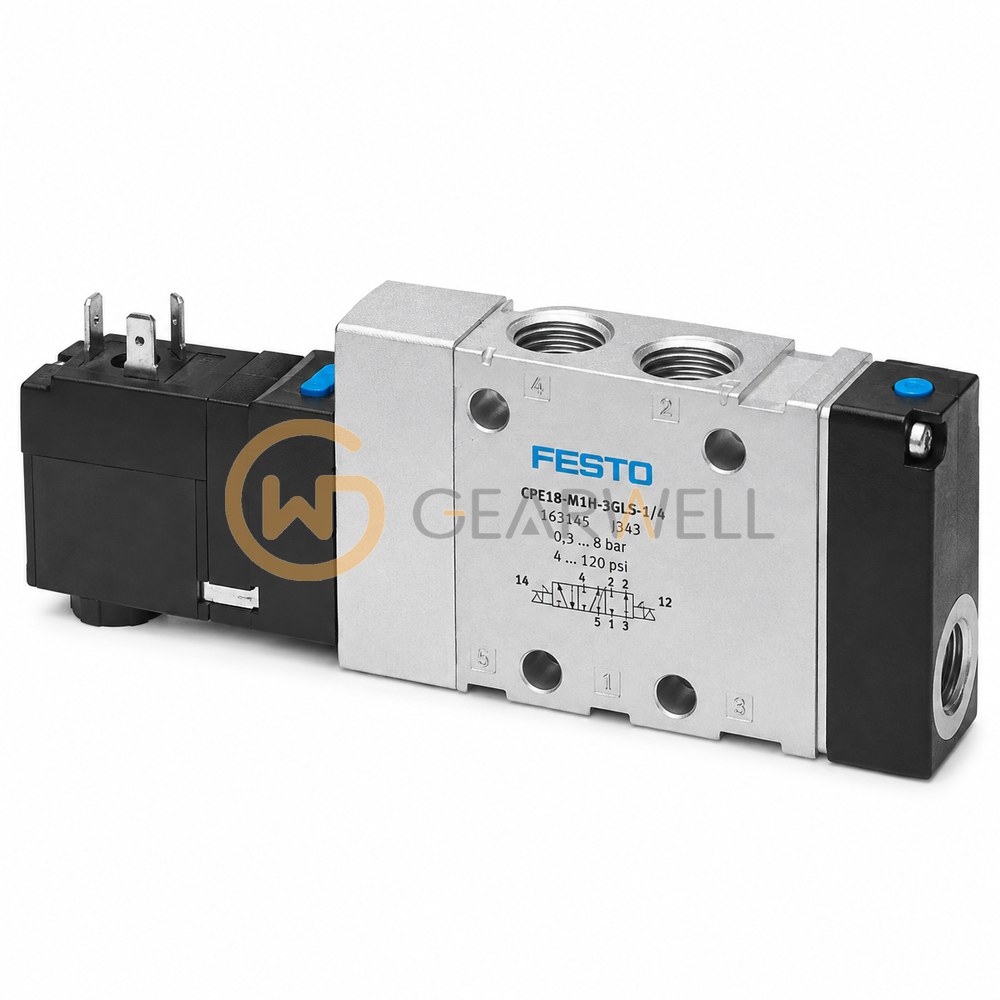

FESTO CPE18-M1H-3GLS-1/4 Air solenoid valve
- Brand
- FESTO
- Model
- CPE18-M1H-3GLS-1/4
- GEARWELL SKU
- GWP-000004374
- Category
- Industrial Automation Parts
Key specifications
- Nominal size
- 8 mm
- Valve function
- 3/2-way, closed, monostable
- Operating voltage
- 24 V DC
- Type of actuation
- Electrical
- Operating pressure
- -0.09...1 MPa (-0.9...10 bar)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | FESTO CPE18-M1H-3GLS-1/4 Air solenoid valve |
|---|---|
| Brand | FESTO |
| Model | CPE18-M1H-3GLS-1/4 |
| Category | Industrial Automation Parts |
| Nominal size | 8 mm |
| Valve function | 3/2-way, closed, monostable |
| Operating voltage | 24 V DC |
| Type of actuation | Electrical |
| Operating pressure | -0.09...1 MPa (-0.9...10 bar) |
| Degree of protection | IP65 with plug socket, to IEC 60529 |
| Pneumatic working port | G1/4 |
| Standard nominal flow rate | 1300 l/min |
