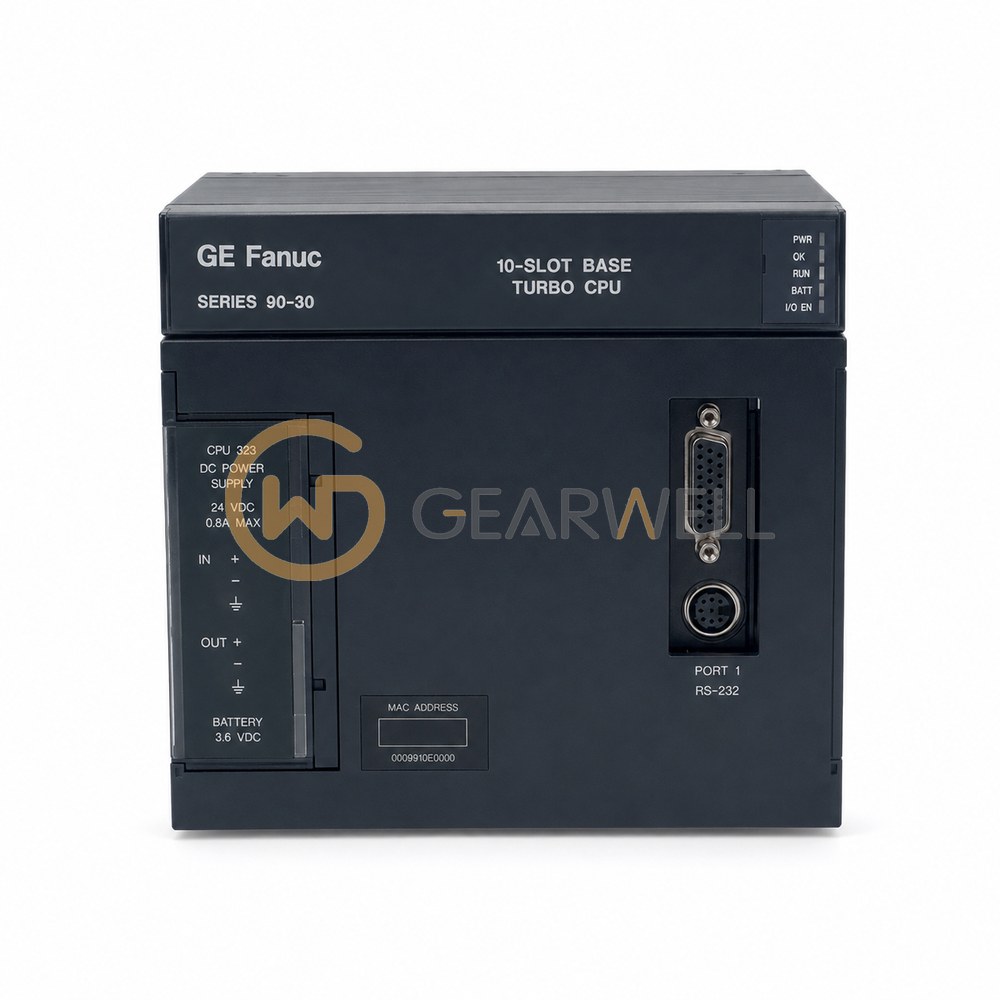

FANUC IC693CPU323 10-Slot Base Turbo CPU
- Brand
- FANUC
- Model
- IC693CPU323
- GEARWELL SKU
- GWP-000002999
- Category
- Industrial Automation Parts
Key specifications
- Processor
- 80188 at 10 MHz
- Typical scan rate
- 0.6 ms per 1K Boolean logic
- Power supply load
- 430 mA from +5 V DC
- Maximum discrete I/O
- 320 inputs and 320 outputs combined
- Product type
- 10-slot baseplate with embedded CPU
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | FANUC IC693CPU323 10-Slot Base Turbo CPU |
|---|---|
| Brand | FANUC |
| Model | IC693CPU323 |
| Category | Industrial Automation Parts |
| Processor | 80188 at 10 MHz |
| Typical scan rate | 0.6 ms per 1K Boolean logic |
| Power supply load | 430 mA from +5 V DC |
| Maximum discrete I/O | 320 inputs and 320 outputs combined |
| Product type | 10-slot baseplate with embedded CPU |
| Built-in ports | 1 serial port supporting SNP and SNP-X slave |
| Maximum user program memory | 12 KB |
| Operating temperature | 0 to 60 degC |
