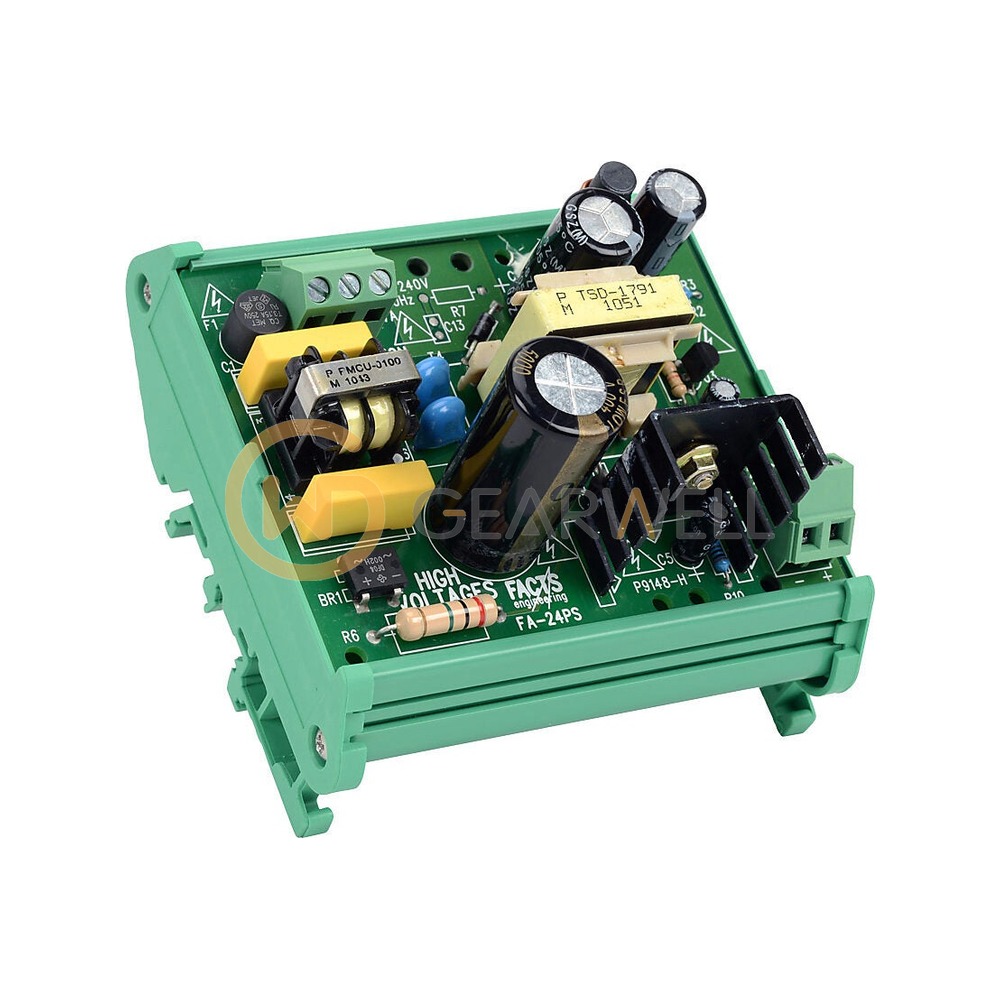

AutomationDirect FA-24PS Open Frame 24 VDC Power Supply
- Brand
- Facts Engineering
- Model
- FA-24PS
- GEARWELL SKU
- GWP-000010119
- Category
- Power Supplies
Key specifications
- Mounting
- DIN rail, 35 mm wide
- Output ripple
- ± 200 mV maximum
- Output current
- 1.25 A maximum continuous (30 W)
- Output voltage
- 24 VDC ±5%
- Input frequency
- 47 to 63 Hz
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | AutomationDirect FA-24PS Open Frame 24 VDC Power Supply |
|---|---|
| Brand | Facts Engineering |
| Model | FA-24PS |
| Category | Power Supplies |
| Mounting | DIN rail, 35 mm wide |
| Output ripple | ± 200 mV maximum |
| Output current | 1.25 A maximum continuous (30 W) |
| Output voltage | 24 VDC ±5% |
| Input frequency | 47 to 63 Hz |
| Agency approvals | UL 508; Class I, Div 2, Groups A, B, C, D |
| Temperature rating | 0 to 60 °C full rated |
| Input voltage range | 100-240 VAC/DC |
