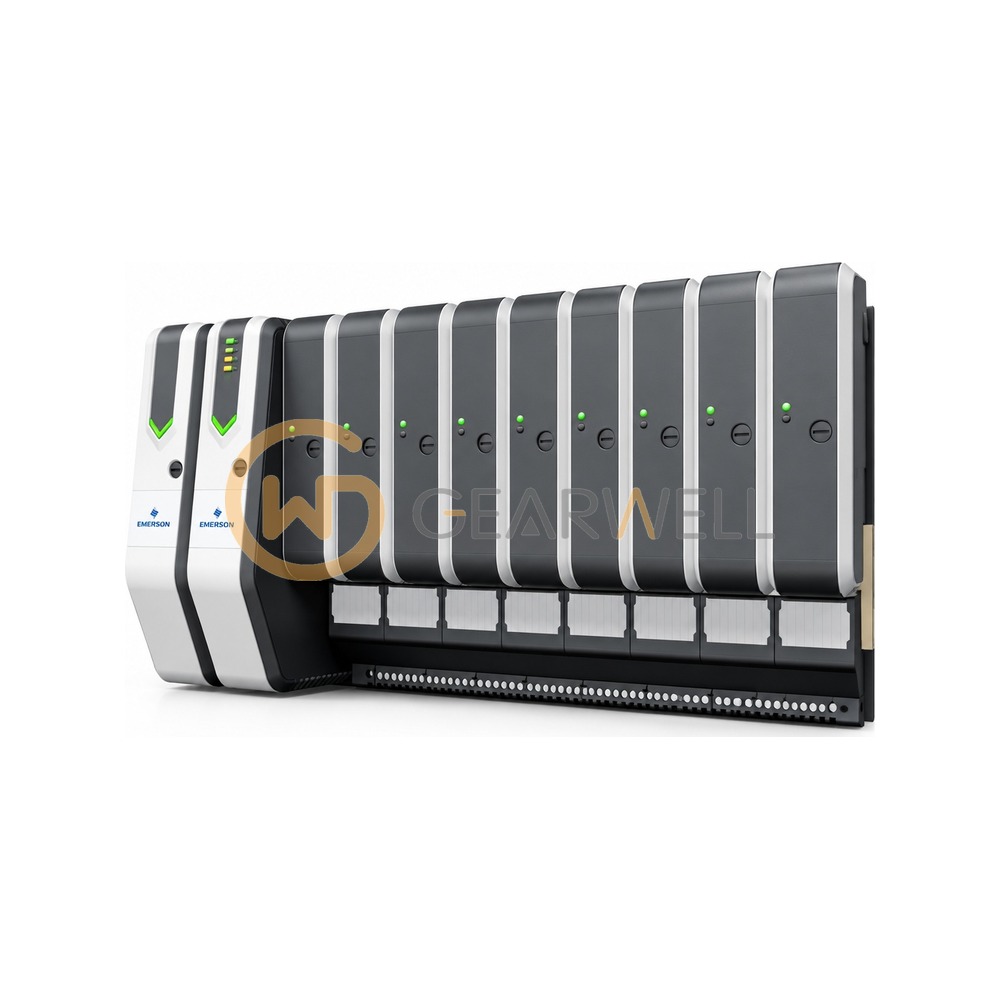

EMERSON VE4005S2B2 DeltaV AO Card 8-Ch 4-20 mA HART, Fused TB
- Brand
- EMERSON
- Model
- VE4005S2B2
- GEARWELL SKU
- GWP-000033919
- Category
- PLCs & I/O
Key specifications
- Channels
- 8, optically isolated (factory tested to 1500 V DC)
- Resolution
- 12 bit
- Product line
- DeltaV M-series Traditional I/O
- Signal range
- 4 to 20 mA nominal (1 to 23 mA full)
- Optional fuse
- 2.0 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | EMERSON VE4005S2B2 DeltaV AO Card 8-Ch 4-20 mA HART, Fused TB |
|---|---|
| Brand | EMERSON |
| Model | VE4005S2B2 |
| Category | PLCs & I/O |
| Channels | 8, optically isolated (factory tested to 1500 V DC) |
| Resolution | 12 bit |
| Product line | DeltaV M-series Traditional I/O |
| Signal range | 4 to 20 mA nominal (1 to 23 mA full) |
| Optional fuse | 2.0 A |
| Communications | HART |
| Operating temperature | -40 to 70 °C |
| Description (ordering table) | Analog Output Card 8 Channels 4-20 mA, HART, with Fused I/O Termination Block |
| Field circuit power per card | 300 mA max at 24 V DC |
| Accuracy over temperature range | 0.25% of span |
