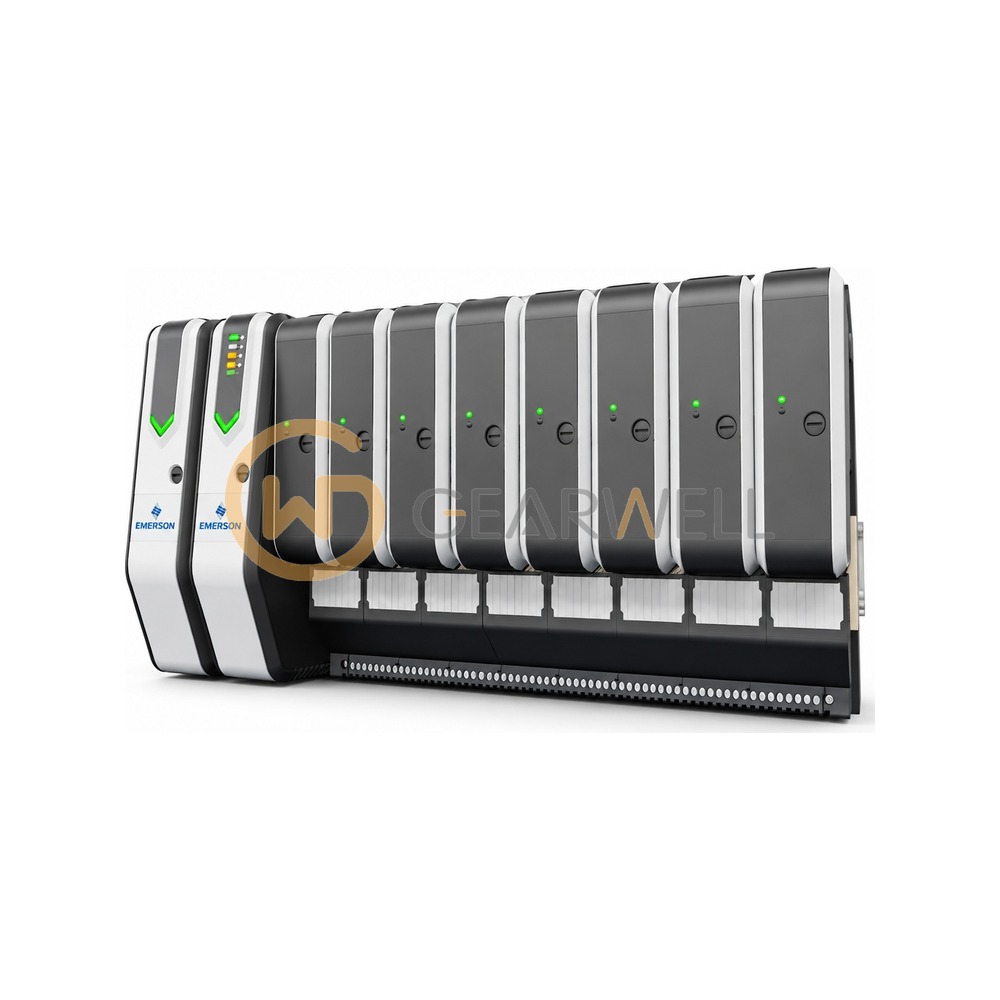

EMERSON VE4003S6B1 DeltaV M-series RTD Input Card 8-Channel
- Brand
- EMERSON
- Model
- VE4003S6B1
- GEARWELL SKU
- GWP-000033917
- Category
- PLCs & I/O
Key specifications
- Channels
- 8
- Product line
- DeltaV M-series Traditional I/O
- Sensor types
- Resistance, Pt100, Pt200, Pt500, Ni120, Cu10, user defined
- Sensor wiring
- 2-wire, 3-wire or 4-wire
- A/D resolution
- 16 bit
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | EMERSON VE4003S6B1 DeltaV M-series RTD Input Card 8-Channel |
|---|---|
| Brand | EMERSON |
| Model | VE4003S6B1 |
| Category | PLCs & I/O |
| Channels | 8 |
| Product line | DeltaV M-series Traditional I/O |
| Sensor types | Resistance, Pt100, Pt200, Pt500, Ni120, Cu10, user defined |
| Sensor wiring | 2-wire, 3-wire or 4-wire |
| A/D resolution | 16 bit |
| Operating temperature | -40 to 70 °C |
| Sensor excitation current | 100 µA |
| Description (ordering table) | Analog Input Card: 8 Channels RTD, with RTD Termination Block |
| LocalBus current (12 V DC nominal) | 160 mA |
