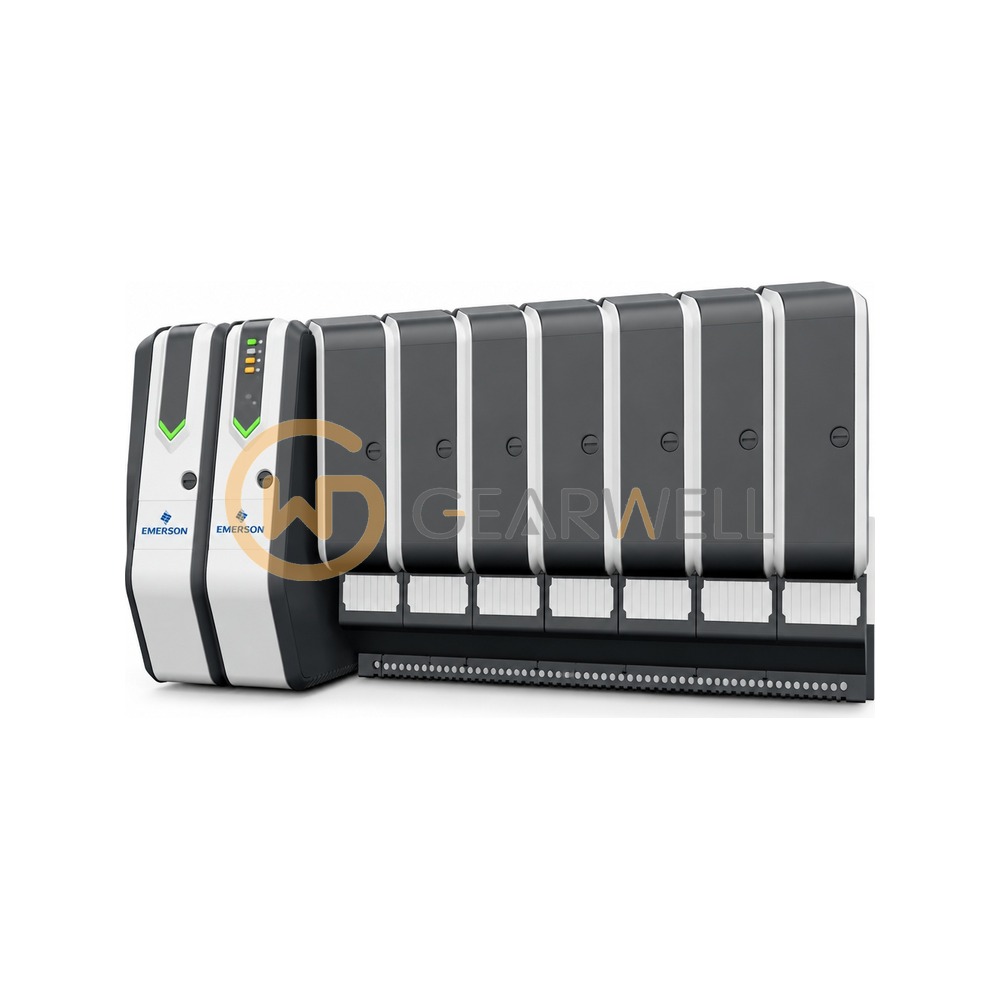

EMERSON VE4002S1T1B1 DeltaV M-series 8-Channel DO Card, 24 V DC
- Brand
- EMERSON
- Model
- VE4002S1T1B1
- GEARWELL SKU
- GWP-000033902
- Category
- PLCs & I/O
Key specifications
- Channels
- 8, isolated
- Output range
- 2 to 60 V DC
- Product line
- DeltaV M-series
- Output rating
- 1.0 A
- Off-state leakage
- 1.2 mA maximum
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | EMERSON VE4002S1T1B1 DeltaV M-series 8-Channel DO Card, 24 V DC |
|---|---|
| Brand | EMERSON |
| Model | VE4002S1T1B1 |
| Category | PLCs & I/O |
| Channels | 8, isolated |
| Output range | 2 to 60 V DC |
| Product line | DeltaV M-series |
| Output rating | 1.0 A |
| Off-state leakage | 1.2 mA maximum |
| Protection rating | IP20 |
| Ordering description | DO Card 8 ch, 24 V DC, Isolated + Standard I/O Termination Block |
| Operating temperature | -40 to 70 °C |
| LocalBus current (12 V DC) | 100 mA typical, 150 mA maximum |
