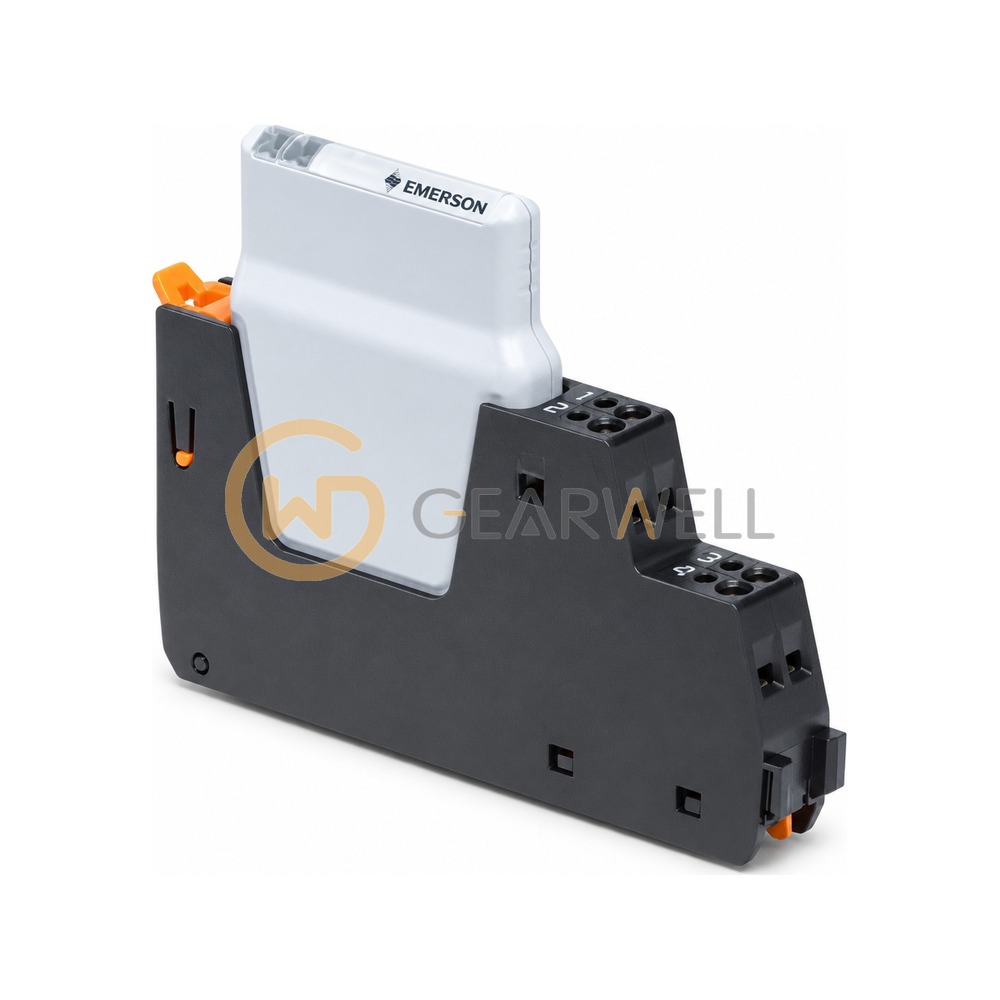

EMERSON SE4304T01 DeltaV AO 4-20 mA HART CHARM
- Brand
- EMERSON
- Model
- SE4304T01
- GEARWELL SKU
- GWP-000033897
- Category
- PLCs & I/O
Key specifications
- Accuracy
- 0.25% of span (0 to 60 °C); 0.5% of span (-40 to 70 °C)
- Evidence
- Emerson Product Data Sheet "DeltaV Electronic Marshalling" (August 2026), CHARM ordering table
- CHARM type
- AO 4-20 mA HART
- Resolution
- 16-bit D/A converter
- Model number
- SE4304T01
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | EMERSON SE4304T01 DeltaV AO 4-20 mA HART CHARM |
|---|---|
| Brand | EMERSON |
| Model | SE4304T01 |
| Category | PLCs & I/O |
| Accuracy | 0.25% of span (0 to 60 °C); 0.5% of span (-40 to 70 °C) |
| Evidence | Emerson Product Data Sheet "DeltaV Electronic Marshalling" (August 2026), CHARM ordering table |
| CHARM type | AO 4-20 mA HART |
| Resolution | 16-bit D/A converter |
| Model number | SE4304T01 |
| Product line | DeltaV Electronic Marshalling (CHARM I/O) |
| Heat dissipation | 0.48 W |
| Full signal range | 0 to 24 mA |
| Nominal signal range | 4 to 20 mA (0 to 20 mA option) |
| Available field power | 20 mA at 15 V DC supply into 750 Ω load |
| CHARM power requirement | 42 mA max @ 24 V DC |
| Field circuit protection | 24 mA current limiting circuit, field wiring disconnect |
