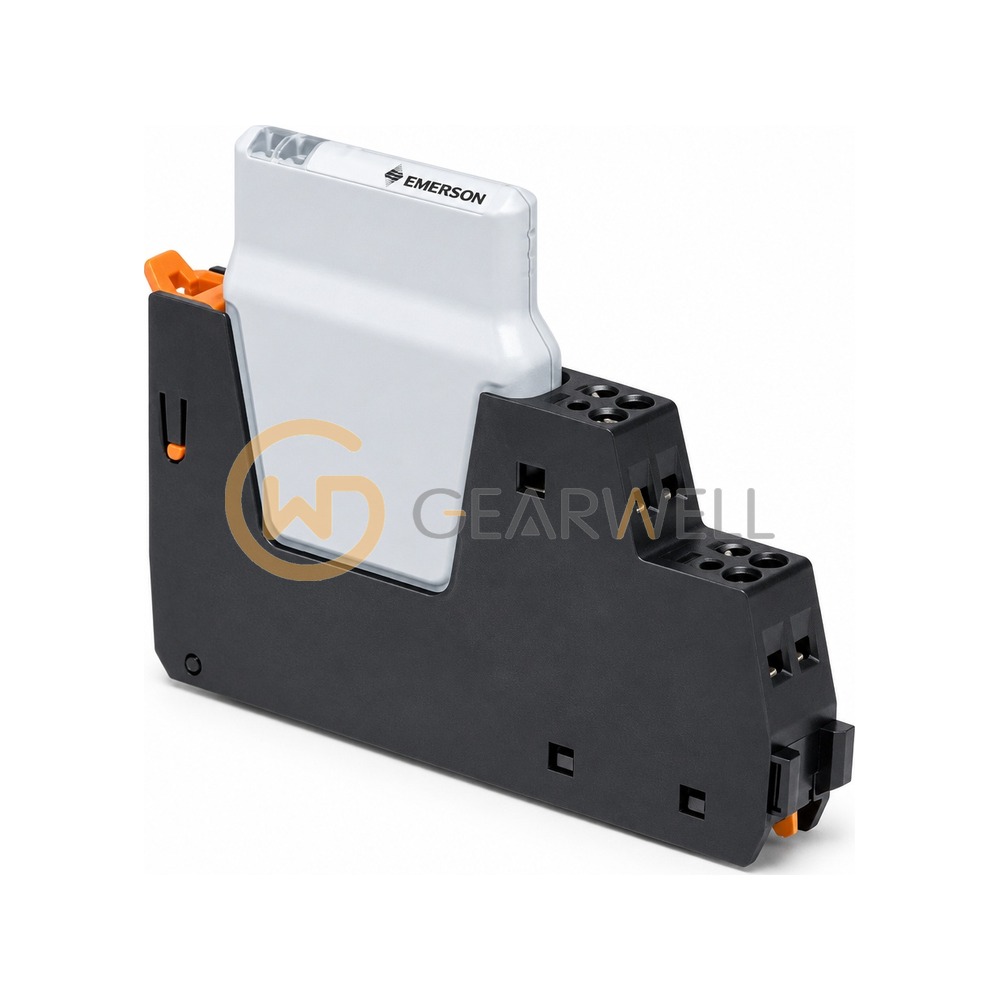

EMERSON SE4302T01 DeltaV DO 24V DC High-Side CHARM
- Brand
- EMERSON
- Model
- SE4302T01
- GEARWELL SKU
- GWP-000033895
- Category
- PLCs & I/O
Key specifications
- Evidence
- Emerson Product Data Sheet "DeltaV Electronic Marshalling" (August 2026), CHARM ordering table
- CHARM type
- DO 24V DC High-Side
- Device type
- 24V DC solenoid coils
- Model number
- SE4302T01
- Product line
- DeltaV Electronic Marshalling (CHARM I/O)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | EMERSON SE4302T01 DeltaV DO 24V DC High-Side CHARM |
|---|---|
| Brand | EMERSON |
| Model | SE4302T01 |
| Category | PLCs & I/O |
| Evidence | Emerson Product Data Sheet "DeltaV Electronic Marshalling" (August 2026), CHARM ordering table |
| CHARM type | DO 24V DC High-Side |
| Device type | 24V DC solenoid coils |
| Model number | SE4302T01 |
| Product line | DeltaV Electronic Marshalling (CHARM I/O) |
| Heat dissipation | 0.44 W (standard terminal block); 0.61 W (relay output terminal block) |
| Line fault detection | short circuit <50 Ω; good 240 Ω to 10 kΩ; open >20 kΩ |
| On-state output rating | 100 mA continuous @ 24 V DC |
| CHARM power requirement | 116 mA max @ 24 V DC (standard terminal block); 24 mA max (relay output terminal block) |
| Field circuit protection | 200 mA current limiting circuit, field wiring disconnect |
| Off-state leakage current | 1 mA maximum |
