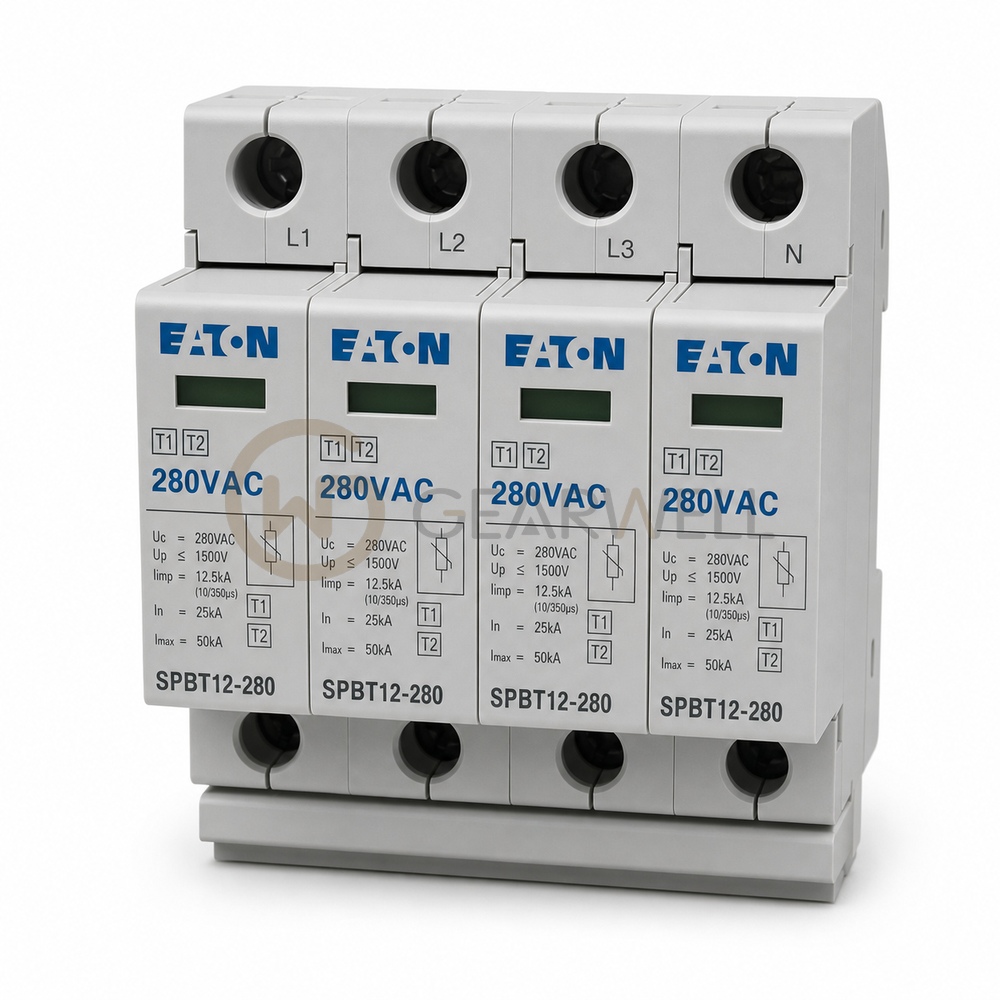

EATON SPBT12-280/4 Surge arrester TN-S set
- Brand
- EATON
- Model
- SPBT12-280/4
- GEARWELL SKU
- GWP-000000826
- Category
- Industrial Automation Parts
Key specifications
- Dimensions
- 86 × 70 × 69 mm
- Product type
- Type 1 + 2 surge protection device
- Mounting method
- 35 mm DIN rail
- Nominal voltage
- 280 V AC
- Number of poles
- 4
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | EATON SPBT12-280/4 Surge arrester TN-S set |
|---|---|
| Brand | EATON |
| Model | SPBT12-280/4 |
| Category | Industrial Automation Parts |
| Dimensions | 86 × 70 × 69 mm |
| Product type | Type 1 + 2 surge protection device |
| Mounting method | 35 mm DIN rail |
| Nominal voltage | 280 V AC |
| Number of poles | 4 |
| Degree of protection | IP20 |
| Voltage protection level | 1.5 kV |
| Lightning impulse current | 12.5 kA (10/350 μs) |
