DELTA VFD370CP63A-21 CP2000 series AC Motor Drive
- Brand
- DELTA
- Model
- VFD370CP63A-21
- GEARWELL SKU
- GWP-000013143
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- C
- Rated voltage / frequency
- 3-Phase, 525 ~ 690 VAC ( -15% ~ +10%), 50/60 Hz
- Rated output current (Light Duty)
- 45 A
- Rated output current (Normal Duty)
- 36 A
- Input current (Light Duty / Normal Duty)
- 54 / 43 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

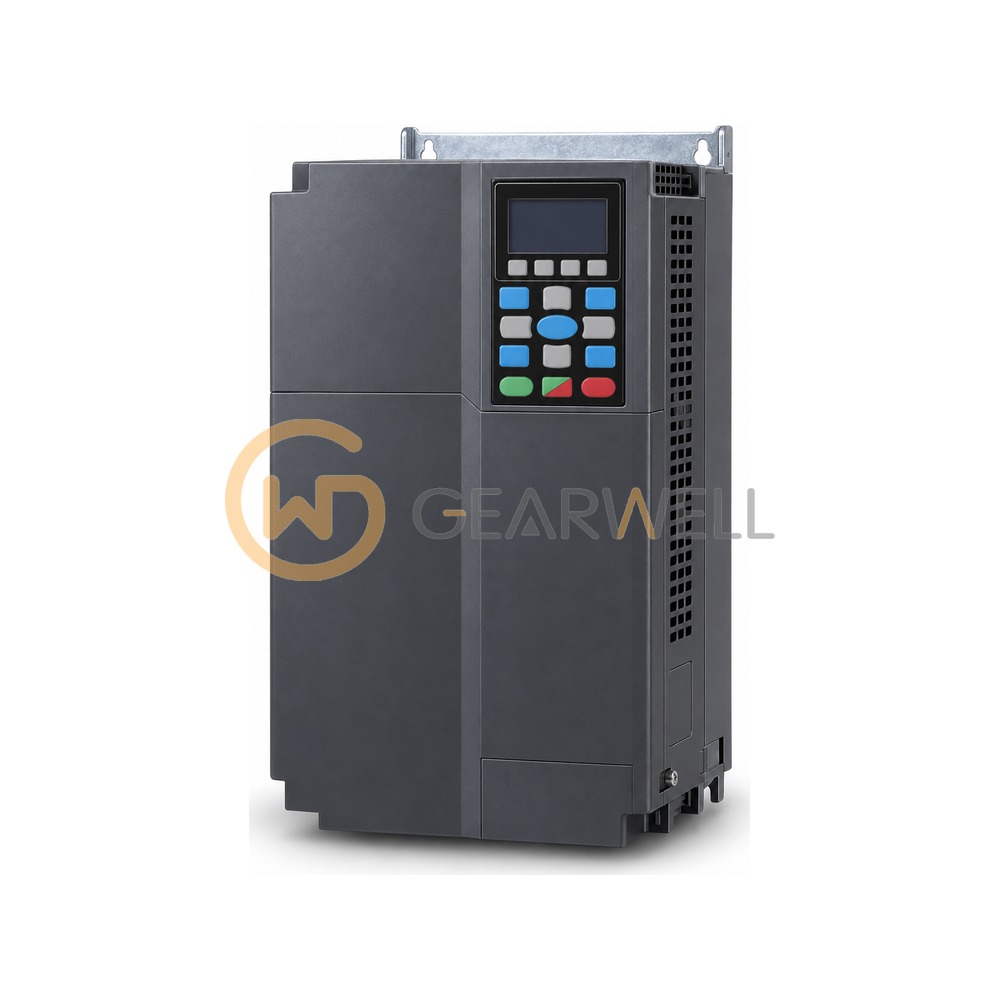

The Delta VFD370CP63A-21 is a CP2000 series fan and pump vector control AC motor drive for a 690 V 3-phase supply (525 to 690 VAC, 50/60 Hz), rated 45 A output current in light duty for motors up to 37 kW (50 HP), built in frame C. In normal duty it delivers 36 A for 30 kW (40 HP) motors; light-duty overload is 120% of rated current for 1 minute in every 5 minutes, and normal duty adds 160% for 3 seconds in every 25 seconds. A braking chopper is built in and the DC choke is optional. The -21 suffix marks an IP20 version with NEMA 1 protection, supplied with top cover and standard conduit plate. Version letter A denotes a wall-mount unit.
Technical reference
| Product name | DELTA VFD370CP63A-21 CP2000 series AC Motor Drive |
|---|---|
| Brand | DELTA |
| Model | VFD370CP63A-21 |
| Category | Variable Frequency Drives |
| Frame size | C |
| Rated voltage / frequency | 3-Phase, 525 ~ 690 VAC ( -15% ~ +10%), 50/60 Hz |
| Rated output current (Light Duty) | 45 A |
| Rated output current (Normal Duty) | 36 A |
| Input current (Light Duty / Normal Duty) | 54 / 43 A |
| Applicable motor output (Light Duty, 690 V) | 37 kW |
| Applicable motor output (Normal Duty, 690 V) | 30 kW |
