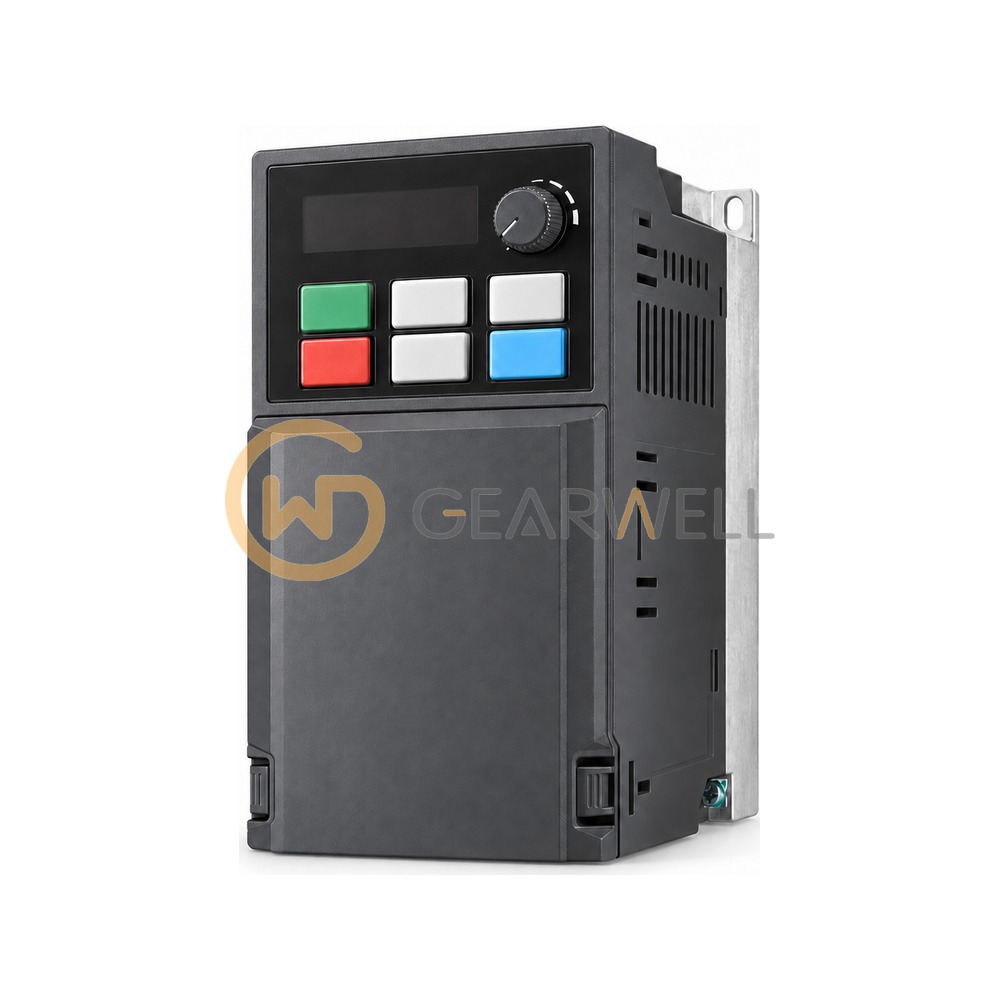

DELTA VFD17AME43AFSAA ME300 series AC Motor Drive
- Brand
- DELTA
- Model
- VFD17AME43AFSAA
- GEARWELL SKU
- GWP-000012587
- Category
- Motors & Gearboxes
Key specifications
- Frame
- D2
- Built-in STO
- Yes
- Built-in EMC filter
- Yes
- Input voltage / frequency
- Three-phase AC, 380V~480V (-15% ~ + 10%), 50 / 60Hz
- Max. applicable motor capacity
- 7.5 kW
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta VFD17AME43AFSAA is a Delta ME300 series basic compact AC motor drive for 460 V three-phase supply, sized for a 7.5 kW (10 HP) motor. The code VFD17AME43AFSAA stands for a rated output current of 17.0 A in heavy duty mode (150% for 60 seconds), an IP20 enclosure, a built-in EMC filter, Safe Torque Off and the standard model type. Normal duty rated output current is 20.5 A and the supply range is 380 to 480 V at 50/60 Hz, with fan cooling. It comes in frame size D, has a built-in brake chopper and a carrier frequency of 2 to 15 kHz. ME300 drives run induction and permanent magnet motors with V/F and SVC control and provide Modbus as standard.
Technical reference
| Product name | DELTA VFD17AME43AFSAA ME300 series AC Motor Drive |
|---|---|
| Brand | DELTA |
| Model | VFD17AME43AFSAA |
| Category | Motors & Gearboxes |
| Frame | D2 |
| Built-in STO | Yes |
| Built-in EMC filter | Yes |
| Input voltage / frequency | Three-phase AC, 380V~480V (-15% ~ + 10%), 50 / 60Hz |
| Max. applicable motor capacity | 7.5 kW |
| Rated output current (Normal Duty) | 20.5 A |
| Drive rated output current (Heavy Duty) | 17.0 A |
