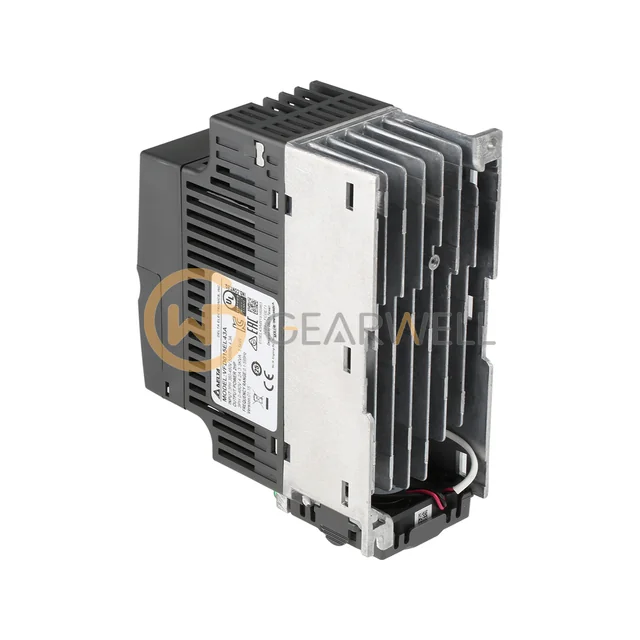

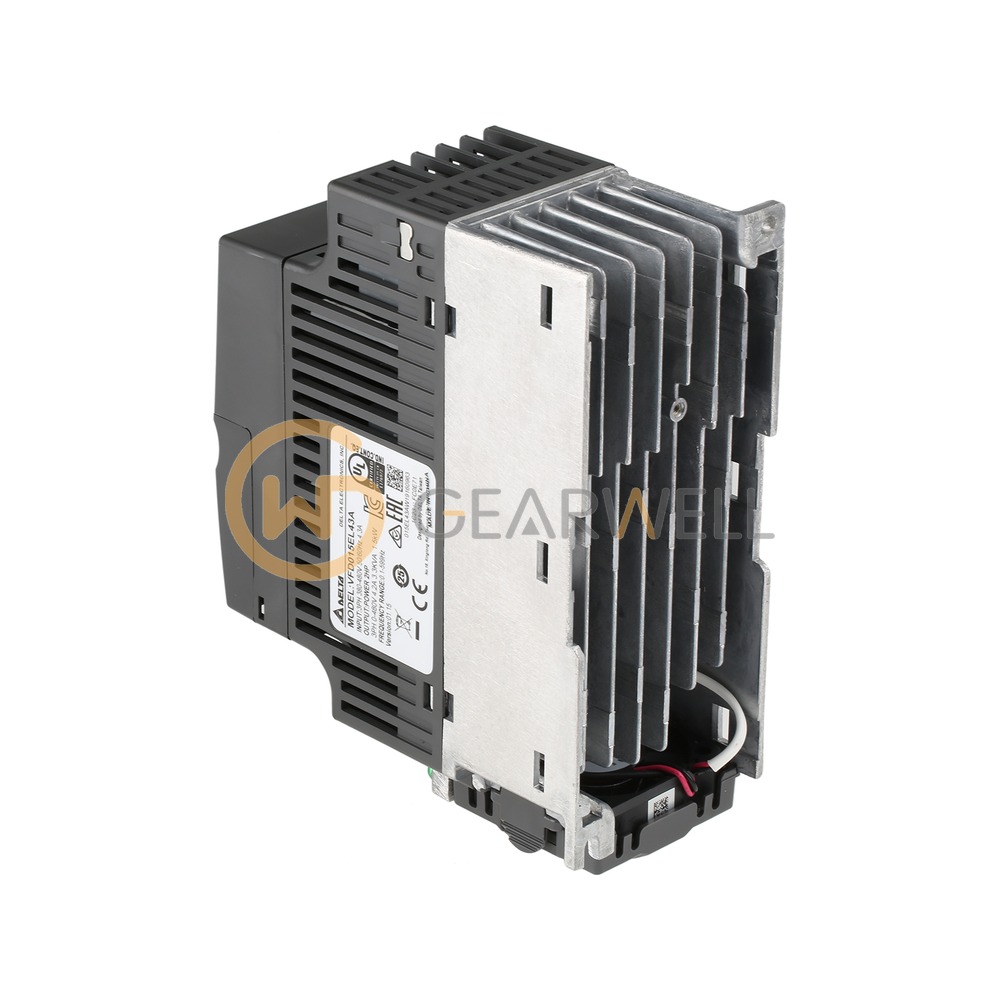

Delta VFD015EL43A VFD-EL AC Motor Drive
- Brand
- DELTA
- Model
- VFD015EL43A
- GEARWELL SKU
- GWP-000007451
- Category
- Variable Frequency Drives
Key specifications
- Rated power
- 1.5 kW
- Input supply
- 400 V three phase
- Mains voltage range
- 342~528 V
- Rated input current
- 4.3 A
- Rated output current
- 4.2 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta VFD015EL43A is a VFD-EL series micro AC motor drive with V/f control for a 3-phase 380-480 V, 50/60 Hz supply. It suits a 1.5 kW (2 HP) motor, with a rated output current of 4.2 A, a rated output capacity of 3.3 kVA and a rated input current of 4.3 A. Overload capacity is 150% of rated current for 1 minute and the output frequency range is 0.1 to 599 Hz. The drive has a built-in EMC filter and an RS-485 (Modbus) port, and braking torque can be raised with an optional brake resistor. It is a frame A unit in an IP20 enclosure weighing 1.2 kg.
Technical reference
| Product name | Delta VFD015EL43A VFD-EL AC Motor Drive |
|---|---|
| Brand | DELTA |
| Model | VFD015EL43A |
| Category | Variable Frequency Drives |
| Rated power | 1.5 kW |
| Input supply | 400 V three phase |
| Mains voltage range | 342~528 V |
| Rated input current | 4.3 A |
| Rated output current | 4.2 A |
| Rated output capacity | 3.3 kVA |
