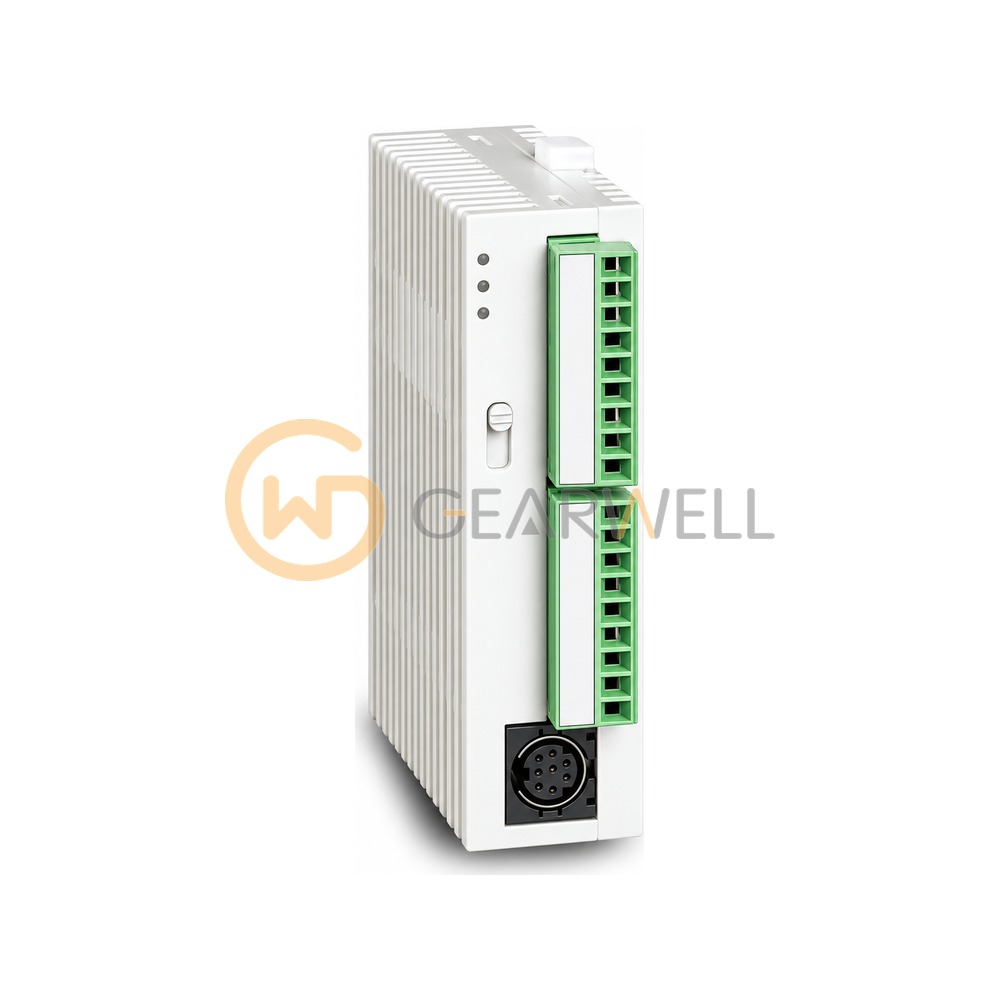

DELTA DVP14SS211T DVP-SS2 Programmable Logic Controller
- Brand
- DELTA
- Model
- DVP14SS211T
- GEARWELL SKU
- GWP-000012825
- Category
- PLCs & I/O
Key specifications
- Weight
- 82.5 g
- COM ports
- Built-in RS-232 and RS-485, Modbus ASCII/RTU
- Output type
- Transistor (NPN)
- Program capacity
- 8k steps
- I/O configuration
- 8 inputs / 6 outputs
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta DVP14SS211T is a DVP-SS2 series standard slim PLC CPU powered from 24 VDC, with 8 digital inputs and 6 NPN transistor outputs. It has a 32-bit CPU, 8 k steps of program capacity, 5 k words of data registers and a basic instruction speed of 0.35 μs, and expands to a maximum of 480 I/O points. Built-in RS-232 and RS-485 ports support Modbus ASCII / RTU and PLC Link, and motion functions include 4 points of 10 kHz pulse output. The housing is 25.2 mm wide.
Technical reference
| Product name | DELTA DVP14SS211T DVP-SS2 Programmable Logic Controller |
|---|---|
| Brand | DELTA |
| Model | DVP14SS211T |
| Category | PLCs & I/O |
| Weight | 82.5 g |
| COM ports | Built-in RS-232 and RS-485, Modbus ASCII/RTU |
| Output type | Transistor (NPN) |
| Program capacity | 8k steps |
| I/O configuration | 8 inputs / 6 outputs |
| Power consumption | 1.5 W |
| Power supply voltage | 24 VDC (-15% ~ 20%) |
