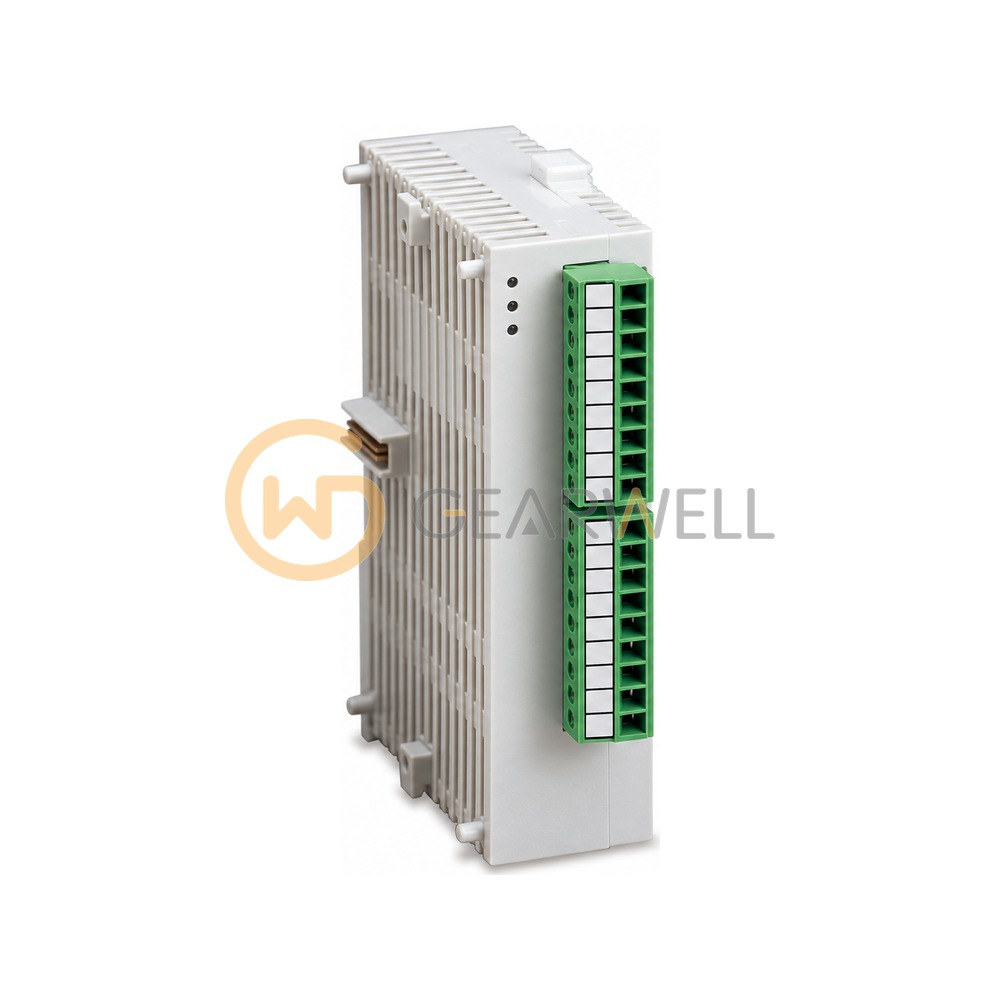

DELTA DVP06XA-S2 DVP-S Slim expansion PLC Analog Input/Output Module
- Brand
- DELTA
- Model
- DVP06XA-S2
- GEARWELL SKU
- GWP-000012823
- Category
- PLCs & I/O
Key specifications
- Isolation
- Analog circuit isolated from digital circuit by optocoupler (channels not isolated from each other)
- Communication
- RS-485 port
- Input resolution
- 12 bits (5 mV) / 11 bits (20 μA)
- Analog input range
- ±10 V / ±20 mA
- Analog output range
- 0 ~ 10 V / 0 ~ 20 mA, 12 bits
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta DVP06XA-S2 is a DVP-S series slim analog input/output extension module with 6 points in total. It provides 4 differential analog inputs for voltage (-10 V ~ +10 V) or current (-20 mA ~ +20 mA) and 2 analog outputs for voltage (0 V ~ +10 V) or current (0 mA ~ +20 mA). Input and output resolution is 12-bit, and the module has a built-in RS-485 interface. It mounts on the right side of DVP-S slim PLCs and is 25.2 mm wide.
Technical reference
| Product name | DELTA DVP06XA-S2 DVP-S Slim expansion PLC Analog Input/Output Module |
|---|---|
| Brand | DELTA |
| Model | DVP06XA-S2 |
| Category | PLCs & I/O |
| Isolation | Analog circuit isolated from digital circuit by optocoupler (channels not isolated from each other) |
| Communication | RS-485 port |
| Input resolution | 12 bits (5 mV) / 11 bits (20 μA) |
| Analog input range | ±10 V / ±20 mA |
| Analog output range | 0 ~ 10 V / 0 ~ 20 mA, 12 bits |
| Power supply voltage | 24 VDC (20.4 ~ 28.8 VDC) |
| Analog input channels | 4 per module |
| Analog output channels | 2 per module |
