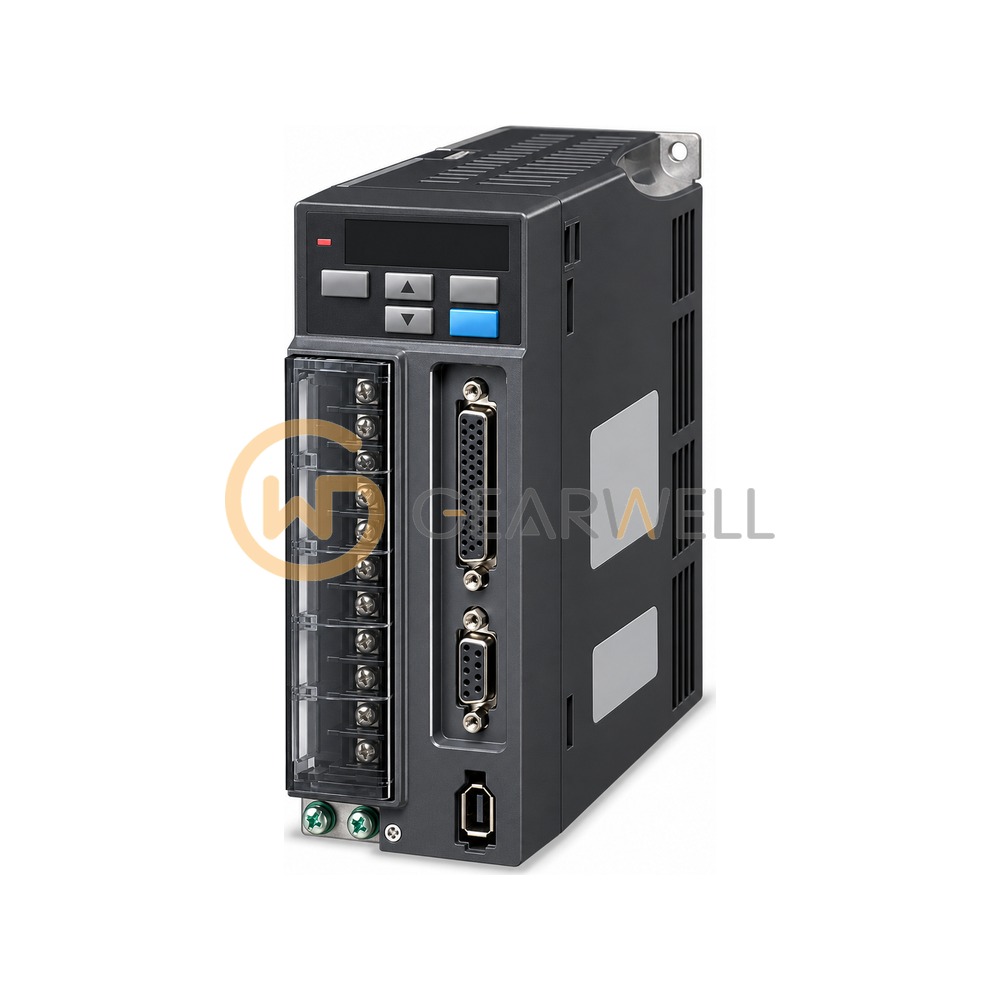

DELTA ASD-B2-0121-B ASDA-B2 AC Servo Drive
- Brand
- DELTA
- Model
- ASD-B2-0121-B
- GEARWELL SKU
- GWP-000012556
- Category
- Servo Systems
Key specifications
- Model type B
- full-closed control ×, EtherCAT ×, CANopen ×, DMCNET ×, E-CAM ×, extension port for digital input ×
- Phase / Voltage
- Three-phase: 170 ~ 255 VAC, 50 / 60 Hz ±5%; Single-phase: 200 ~ 255 VAC, 50 / 60Hz ±5%
- Cooling method
- Natural cooling
- Input current (3PH)
- 0.7 Arms; Input current (1PH): 0.9 Arms
- Rated output power
- 100W
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta ASD-B2-0121-B is a Delta ASDA-B2 series AC servo drive with a rated output of 100 W, for 220 V single-phase or three-phase supply. It provides 0.9 Arms continuous output current and draws 0.39 Arms on three-phase or 0.69 Arms on single-phase input. The drive works with 17-bit encoder feedback (160,000 p/rev) and accepts pulse commands up to 4 Mpps in differential mode, with position, speed and torque control modes. The B suffix marks the standard model.
Technical reference
| Product name | DELTA ASD-B2-0121-B ASDA-B2 AC Servo Drive |
|---|---|
| Brand | DELTA |
| Model | ASD-B2-0121-B |
| Category | Servo Systems |
| Model type B | full-closed control ×, EtherCAT ×, CANopen ×, DMCNET ×, E-CAM ×, extension port for digital input × |
| Phase / Voltage | Three-phase: 170 ~ 255 VAC, 50 / 60 Hz ±5%; Single-phase: 200 ~ 255 VAC, 50 / 60Hz ±5% |
| Cooling method | Natural cooling |
| Input current (3PH) | 0.7 Arms; Input current (1PH): 0.9 Arms |
| Rated output power | 100W |
| Regenerative resistor | None |
| Continuous output current | 0.9 Arms; Max. instantaneous output current: 2.70 A |
| Encoder resolution / feedback resolution | 17-bit (160000 p/rev) |
