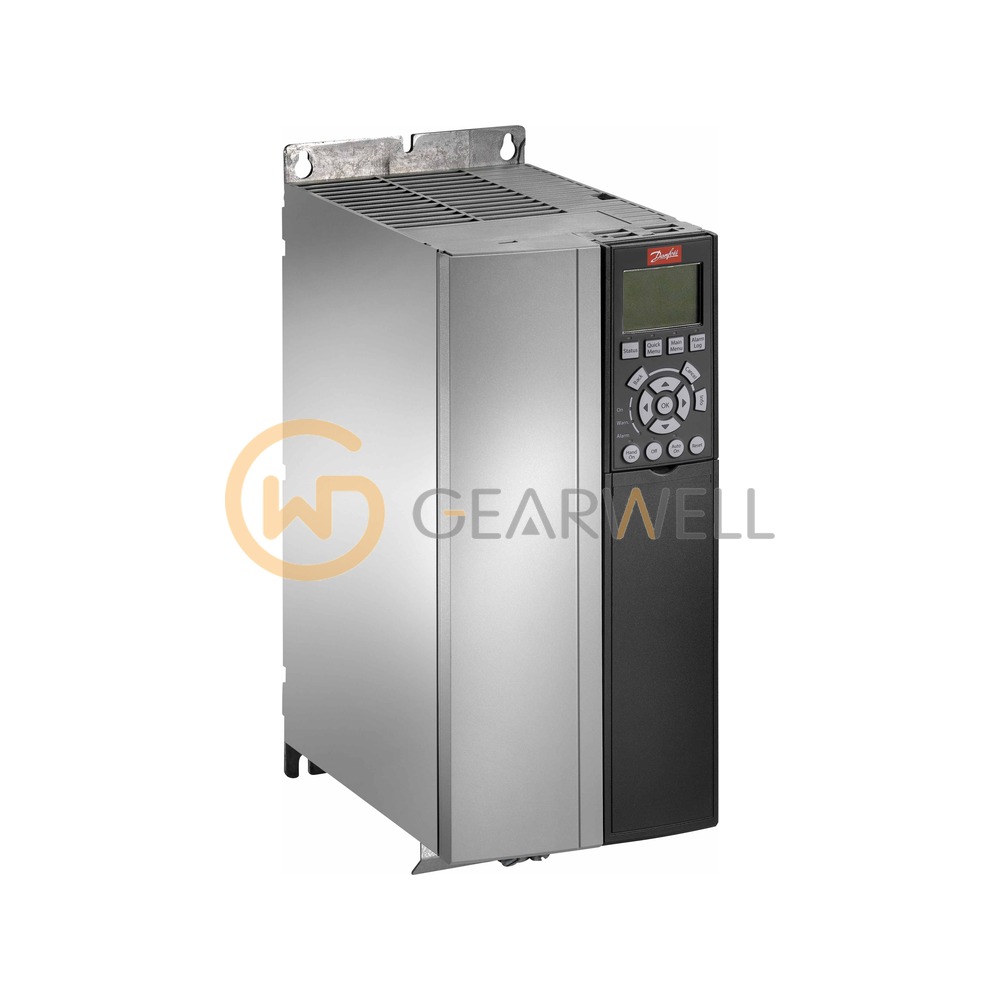

Danfoss FC302P11KT5E20H2XGCXXXSXXXXAXBCXX FC 302 AC Drive
- Brand
- DANFOSS
- Model
- FC302P11KT5E20H2XGCXXXSXXXXAXBCXX
- GEARWELL SKU
- GWP-000011633
- Category
- Variable Frequency Drives
Key specifications
- A option (code AX)
- No A option
- Code suffix "BCXX"
- as collected; not listed in the official model-number table (B/C/D option positions to be specified on order)
- Enclosure (code E20)
- IP20 / Chassis
- PCB coating (code C)
- Coated PCB
- RFI filter (code H2)
- RFI Filter
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Danfoss FC302P11KT5E20H2XGCXXXSXXXXAXBCXX FC 302 AC Drive |
|---|---|
| Brand | DANFOSS |
| Model | FC302P11KT5E20H2XGCXXXSXXXXAXBCXX |
| Category | Variable Frequency Drives |
| A option (code AX) | No A option |
| Code suffix "BCXX" | as collected; not listed in the official model-number table (B/C/D option positions to be specified on order) |
| Enclosure (code E20) | IP20 / Chassis |
| PCB coating (code C) | Coated PCB |
| RFI filter (code H2) | RFI Filter |
| Collected type code | FC302P11KT5E20H2XGCXXXSXXXXAXBCXX |
| Brake chopper (code X) | No |
| Mains supply (code T5) | 3-phase 380-500 V AC |
| Rated power (code P11K) | 11 kW / 15 HP |
| Local control panel (code G) | Graphical local control panel |
