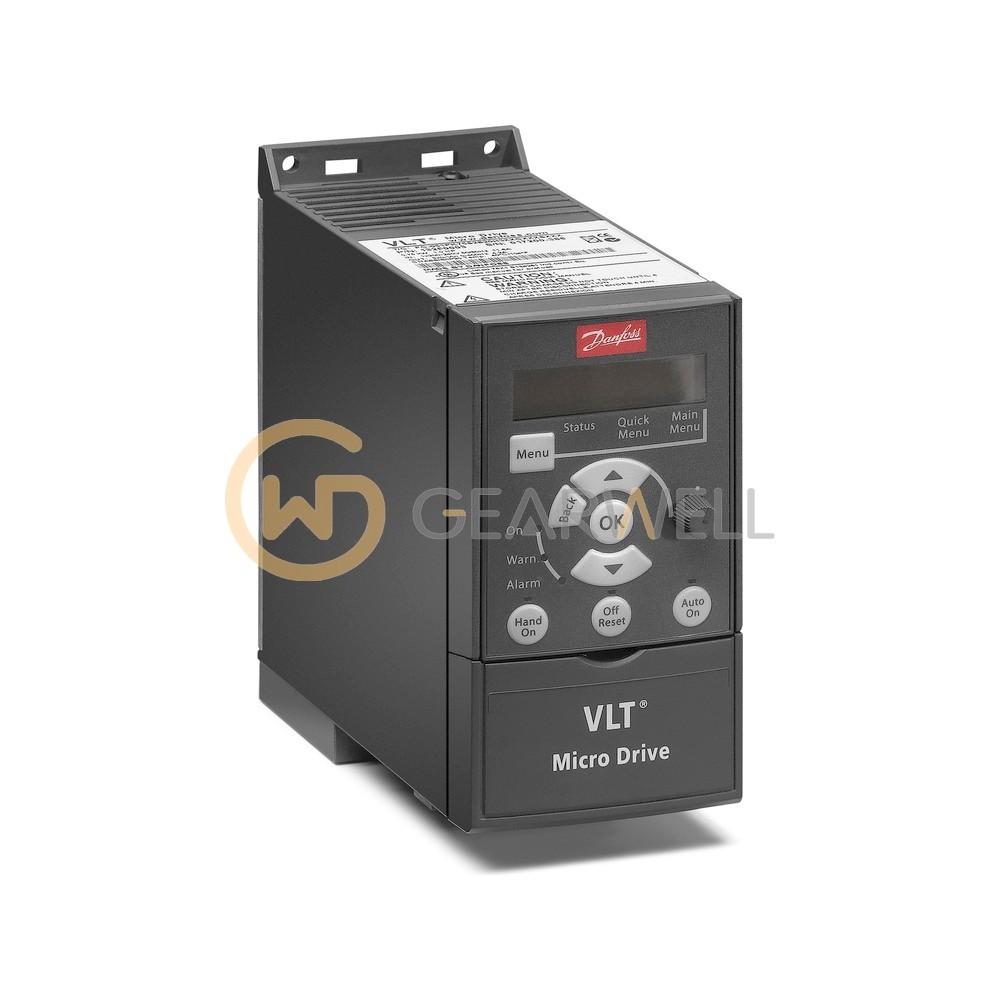

Danfoss 132F0018 VLT Micro Drive FC 51 Micro AC Drive
- Brand
- DANFOSS
- Model
- 132F0018
- GEARWELL SKU
- GWP-000011624
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- M1
- Danfoss type code
- FC-051PK75T4E20H3XXCXXXSXXX
- Enclosure (code E20)
- IP20 / Chassis
- PCB coating (code C)
- Coated PCB
- RFI filter (code H3)
- RFI Class A1/B (C1)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Danfoss 132F0018 is a VLT® Micro Drive FC 51 compact frequency converter with the full type code FC-051PK75T4E20H3XXCXXXSXXX, rated 0.75 kW / 1.0 hp (PK75) for three-phase 380 - 480 VAC mains (T4). It delivers 2.2 A continuous and 3.3 A intermittent output current at 3 x 380-440 V and 2.1 A continuous at 3 x 440-480 V, with a 150% overload for 1 minute. It is an IP20 / chassis unit (E20) in frame M1 with an RFI filter class A1/B (C1) (H3), no brake chopper, a coated PCB and no mains option; no local control panel is included, so the LCP is ordered separately. The net weight is 1.083 kg. Danfoss lists a last time buy of June 30, 2026 and a last delivery of September 30, 2026 for this item.
Technical reference
| Product name | Danfoss 132F0018 VLT Micro Drive FC 51 Micro AC Drive |
|---|---|
| Brand | DANFOSS |
| Model | 132F0018 |
| Category | Variable Frequency Drives |
| Frame size | M1 |
| Danfoss type code | FC-051PK75T4E20H3XXCXXXSXXX |
| Enclosure (code E20) | IP20 / Chassis |
| PCB coating (code C) | Coated PCB |
| RFI filter (code H3) | RFI Class A1/B (C1) |
| Brake chopper (code X) | No |
| Mains supply (code T4) | 3-phase 380-480 V AC |
| Rated power (code PK75) | 0.75 kW / 1.0 HP |
| Local control panel (code X) | No local control panel |
