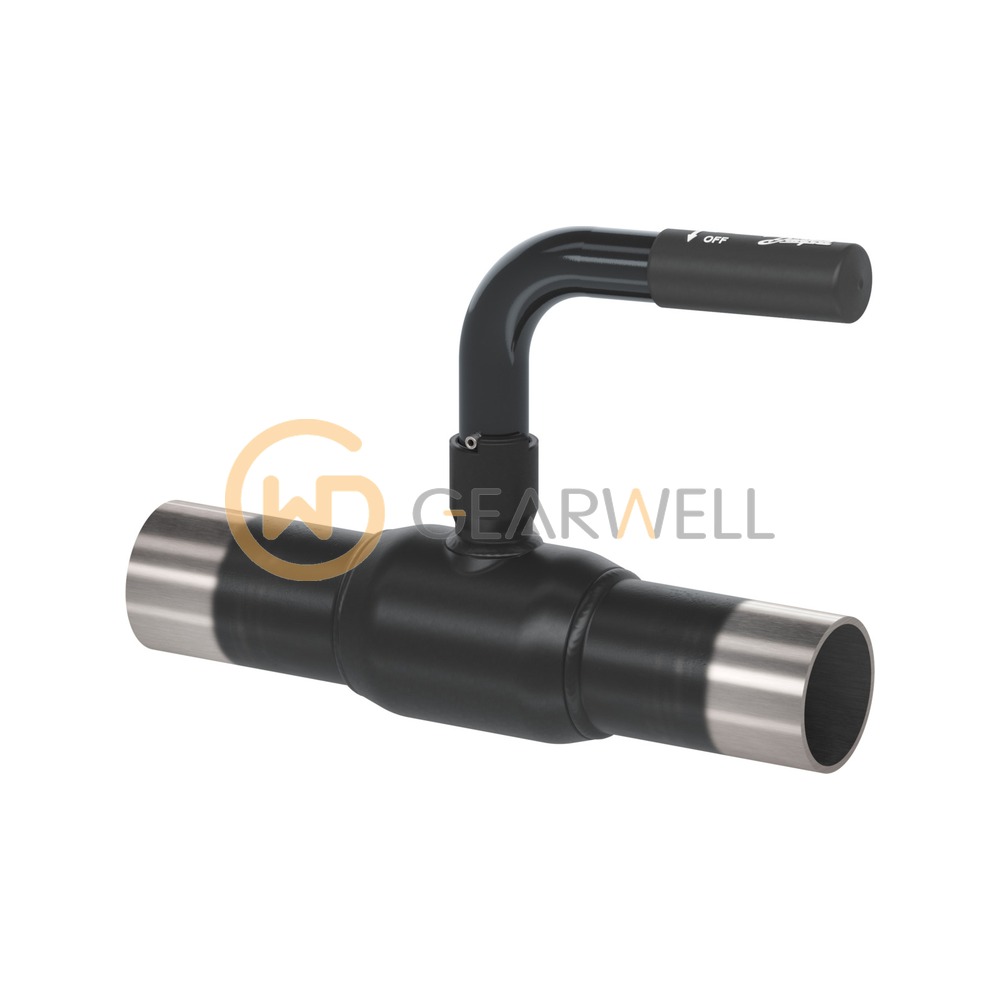

Danfoss 065N0125 JIP-WW Ball Valve
- Brand
- DANFOSS
- Model
- 065N0125
- GEARWELL SKU
- GWP-000006965
- Category
- Valves
Key specifications
- Length
- 300 mm
- Kvs value
- 184 m³/h
- Net weight
- 2.51 kg
- Valve size
- DN 50
- Product type
- JIP-WW reduced bore, handle
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Danfoss 065N0125 is a Danfoss JIP-WW ball valve in size DN 50, pressure class PN 40, with reduced bore, weld ends and handle operation for on/off duty. It is intended for district heating and cooling circulation water, also glycolic water up to 50%, at media temperatures of 0 to 180 °C. The body is weldable steel, the ball and stem are stainless steel, and the seat seal is PTFE+C; the Kvs value is 184 m³/h and the length is 300 mm. Net weight is 2.51 kg.
Technical reference
| Product name | Danfoss 065N0125 JIP-WW Ball Valve |
|---|---|
| Brand | DANFOSS |
| Model | 065N0125 |
| Category | Valves |
| Length | 300 mm |
| Kvs value | 184 m³/h |
| Net weight | 2.51 kg |
| Valve size | DN 50 |
| Product type | JIP-WW reduced bore, handle |
| Pressure class | PN 40 |
| Connection type | Welded |
| Media temperature | 0 to 180 °C |
