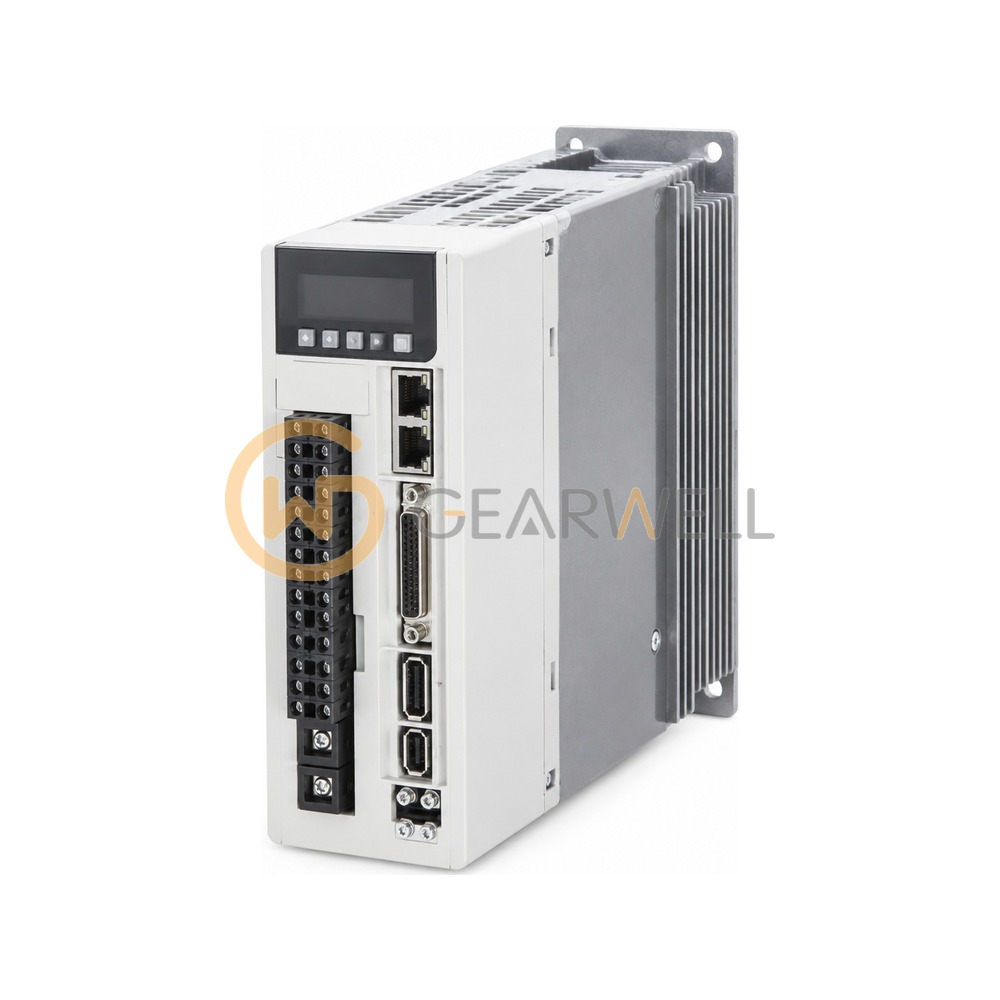

Control Techniques SP1402 Unidrive SP Universal AC/Servo Drive 400V
- Brand
- Control Techniques
- Model
- SP1402
- GEARWELL SKU
- GWP-000033686
- Category
- Variable Frequency Drives
Key specifications
- Series
- Unidrive SP (panel mount)
- Frame size
- 1
- Supply voltage
- 380-480 V three-phase V
- Heavy Duty nominal power @400V
- 1.1 kW
- Normal Duty nominal power @400V
- 1.5 kW
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Control Techniques SP1402 Unidrive SP Universal AC/Servo Drive 400V |
|---|---|
| Brand | Control Techniques |
| Model | SP1402 |
| Category | Variable Frequency Drives |
| Series | Unidrive SP (panel mount) |
| Frame size | 1 |
| Supply voltage | 380-480 V three-phase V |
| Heavy Duty nominal power @400V | 1.1 kW |
| Normal Duty nominal power @400V | 1.5 kW |
| Max. continuous input current (3ph) | 5.8 A |
| Heavy Duty max. continuous output current | 3.0 A |
| Normal Duty max. continuous output current | 3.8 A |
