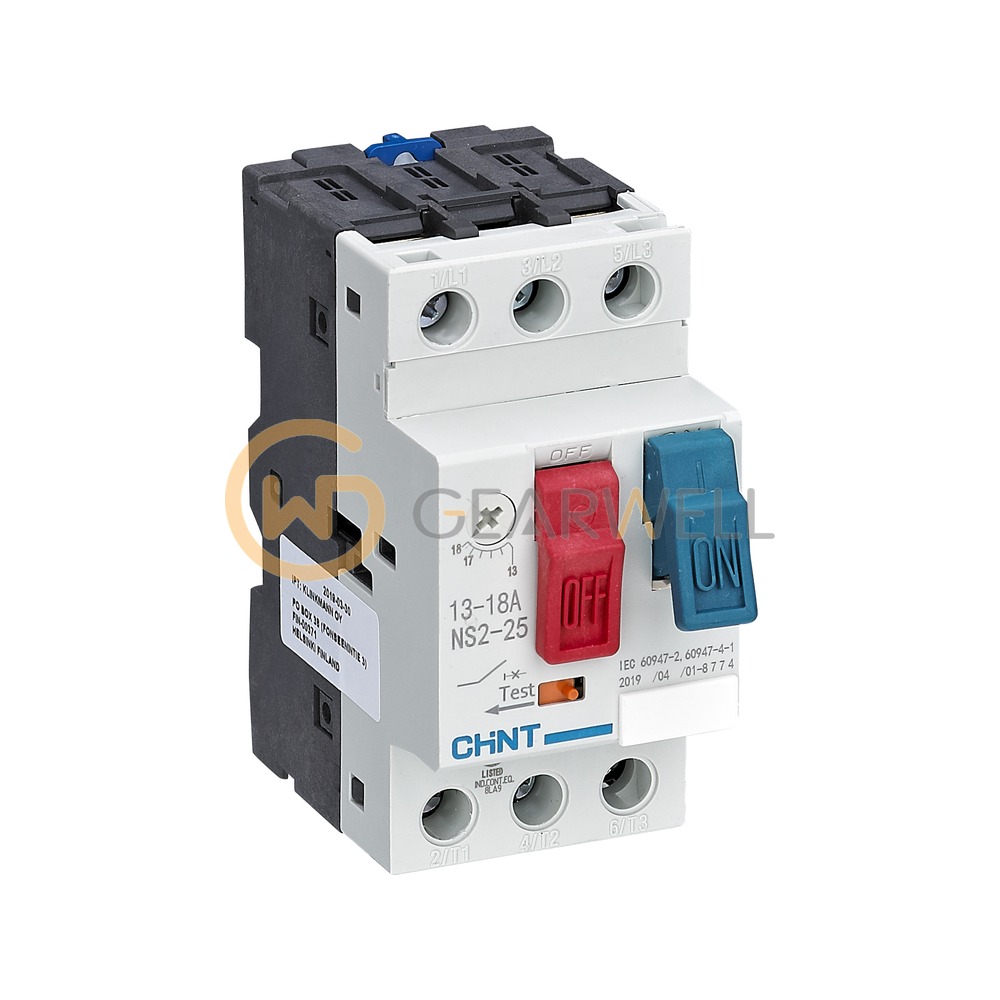

CHINT NS2-25 13-18A NAK NS2 Motor Protection Circuit Breaker

Key specifications

Trip class: 10A
Order number: 495083
Code suffix "NAK": as collected; not listed in the official model-number table
Material number: 710050200000120
Type designation: NS2-25 13-18A

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

Product name	CHINT NS2-25 13-18A NAK NS2 Motor Protection Circuit Breaker
Brand	CHINT
Model	NS2-25 13-18A NAK
Category	Circuit Protection
Trip class	10A
Order number	495083
Code suffix "NAK"	as collected; not listed in the official model-number table
Material number	710050200000120
Type designation	NS2-25 13-18A
Setting current range	13-18 A
Motor power, AC-3 400 V	7.5 kW
Frame rated current Inm	25 A
Instantaneous trip setting Ii	223 A
Rated ultimate short-circuit breaking capacity Icu (400/415 V)	15 kA
