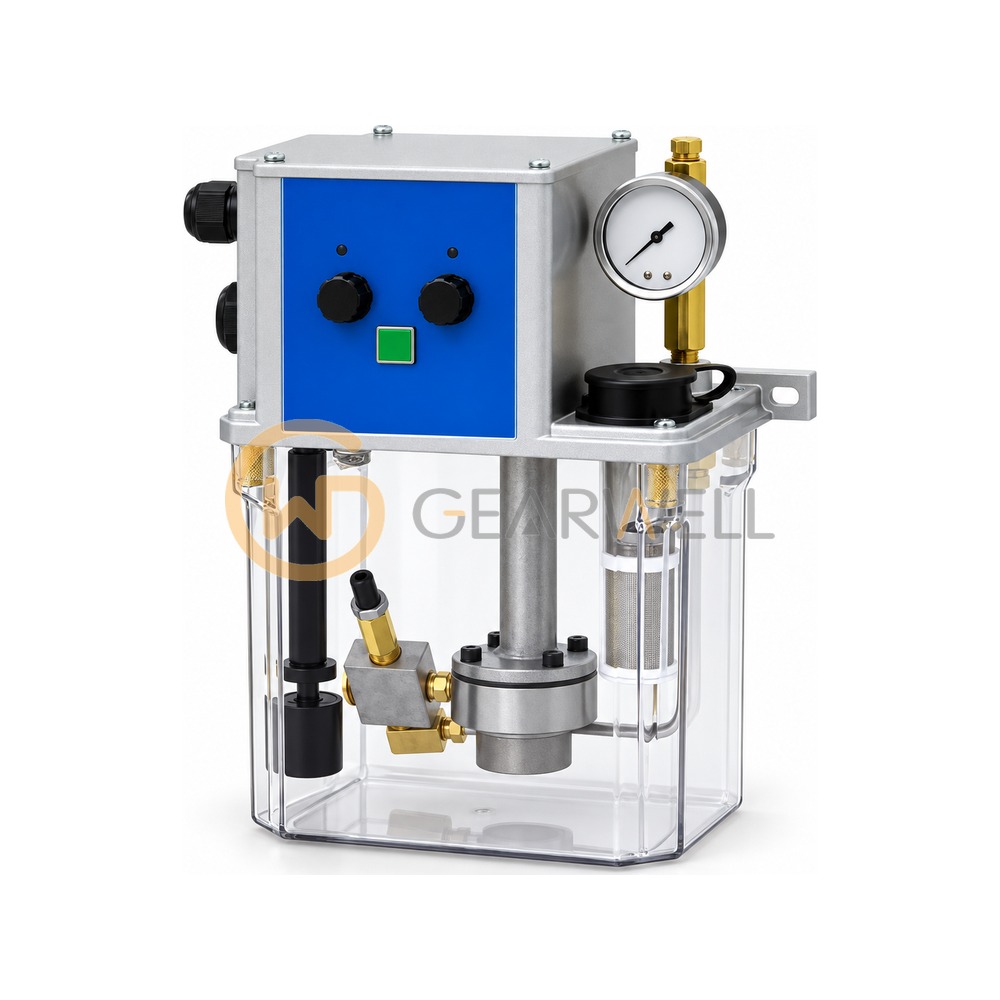

CHENYING CEWB05 Pressure-Relief Type Oil Electric Lubricator
- Brand
- CHENYING
- Model
- CEWB05
- GEARWELL SKU
- GWP-000011890
- Category
- Lubrication Parts
Key specifications
- Hertz
- 60Hz / 50Hz, 60Hz
- Ampere
- 2A / 1A
- N.W. (kg)
- 5.36
- Series
- CEWB Pressure-Relief Type Oil Electric Lubricator
- Voltage
- 110V / 220V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | CHENYING CEWB05 Pressure-Relief Type Oil Electric Lubricator |
|---|---|
| Brand | CHENYING |
| Model | CEWB05 |
| Category | Lubrication Parts |
| Hertz | 60Hz / 50Hz, 60Hz |
| Ampere | 2A / 1A |
| N.W. (kg) | 5.36 |
| Series | CEWB Pressure-Relief Type Oil Electric Lubricator |
| Voltage | 110V / 220V |
| Width (mm) | 173 |
| Height (mm) | 253 |
| Length (mm) | 297 |
| Motor Power | 30±3W |
| Float Switch | NC Contact |
| Interval Time | 1-60 min, 1-180 min, 1-12hr, 1-72hr |
| Discharge Bore | Ø4 , Ø6 |
| Operation Time | 3-60 sec |
| Voltage options | 110V,60Hz / 220V,50Hz / 220V,60Hz (specify on order) |
| ACT x INT options | 60sec x 60min / 60sec x 180min / 60sec x 12hour / 60sec x 72hour (specify on order) |
| Suitable Viscosity | Oil, 32-68 cSt@40oC |
| Max. Discharge Volume | 130cc/min , 260cc/min |
| Discharge Bore options | φ4 / φ6 / φ4 W/Pressure Gauge / φ6 W/Pressure Gauge (specify on order) |
| Fixed Hole Distance (mm) | 95x280 |
| Max. Operating Pressure | 15kgf/c㎡ |
| Operation Mode options | Turn-on-Feeding / Turn-on-Interval (specify on order) |
| Tank Capacity (Material) | 4L (Alum.) |
| Optional special requests | Increase Discharge Volume to 260cc/min |
