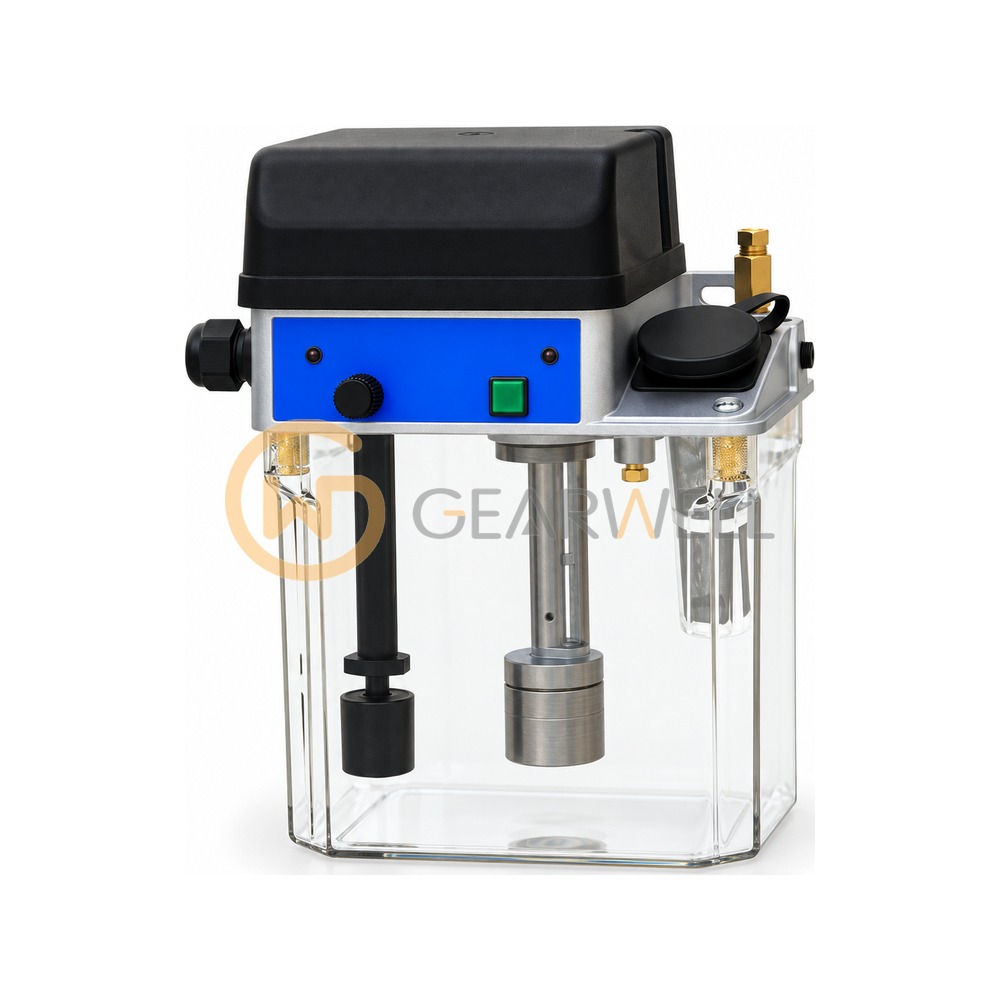

CHENYING CESH02 Resistance Type Oil Electric Lubricator 2L (Alum.)
- Brand
- CHENYING
- Model
- CESH02
- GEARWELL SKU
- GWP-000011876
- Category
- Lubrication Parts
Key specifications
- Hertz
- 60Hz / 50Hz, 60Hz
- Ampere
- 1.5A / 1.0A
- N.W. (kg)
- 3.50
- Series
- CESH Resistance Type Oil Electric Lubricator
- Voltage
- 110V / 220V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | CHENYING CESH02 Resistance Type Oil Electric Lubricator 2L (Alum.) |
|---|---|
| Brand | CHENYING |
| Model | CESH02 |
| Category | Lubrication Parts |
| Hertz | 60Hz / 50Hz, 60Hz |
| Ampere | 1.5A / 1.0A |
| N.W. (kg) | 3.50 |
| Series | CESH Resistance Type Oil Electric Lubricator |
| Voltage | 110V / 220V |
| Width (mm) | 153 |
| Height (mm) | 225 |
| Length (mm) | 221 |
| Motor Power | 20±3W |
| Float Switch | NC Contact |
| Interval Time | 1-60 min, 1-180 min |
| Discharge Bore | Ø4 , Ø6 |
| Operation Time | 10 sec |
| Voltage options | 110V,60Hz / 220V,50Hz / 220V,60Hz (specify on order) |
| ACT x INT options | 10 sec x 60 min / 10 sec x 180 min (specify on order) |
| Suitable Viscosity | Oil, 32-68 cSt@40oC |
| Max. Discharge Volume | 130cc/min |
| Discharge Bore options | φ4 / φ6 / φ4 W/Pressure Gauge / φ6 W/Pressure Gauge (specify on order) |
| Fixed Hole Distance (mm) | 95x200 |
| Max. Operating Pressure | 10kgf/c㎡ |
| Operation Mode options | Turn-on-Feeding / Turn-on-Interval (specify on order) |
| Tank Capacity (Material) | 2L (Alum.) |
