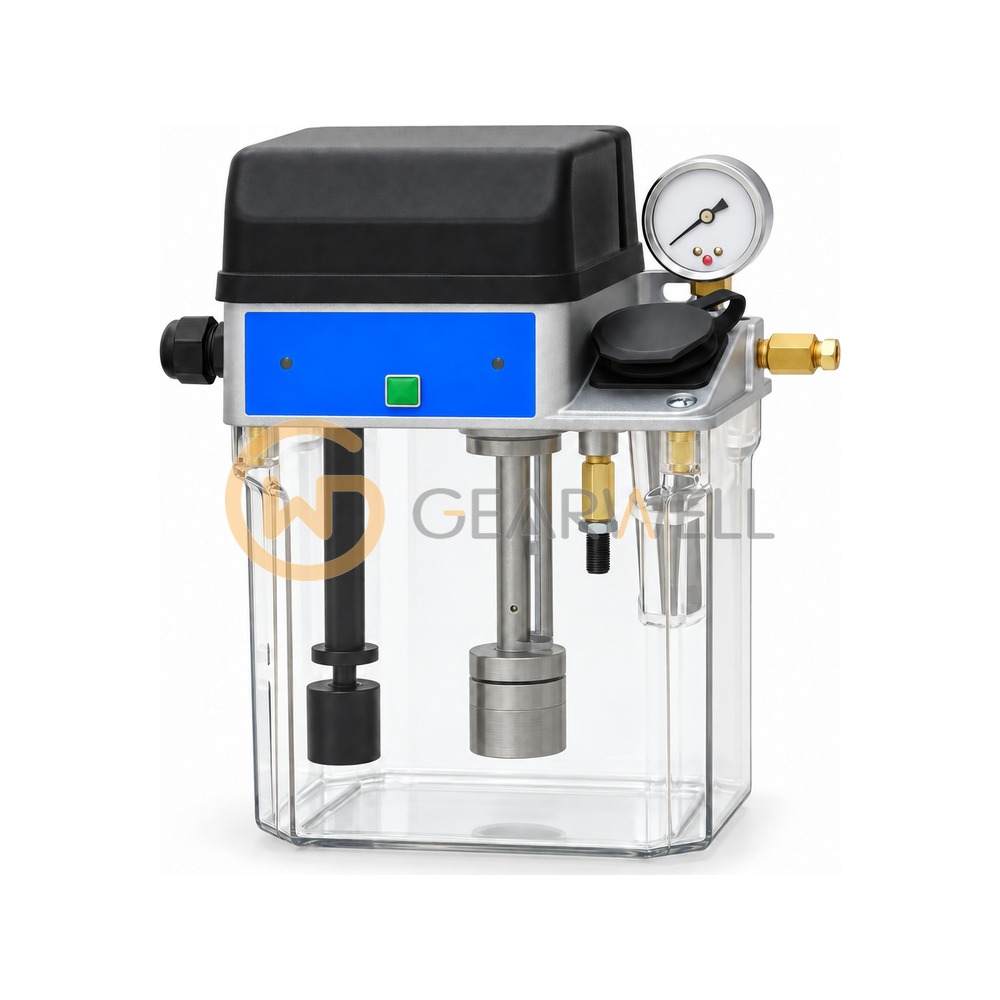

CHENYING CESG01-05 Resistance Type Oil Electric Lubricator 4L (Alum.)
- Brand
- CHENYING
- Model
- CESG01-05
- GEARWELL SKU
- GWP-000011786
- Category
- Lubrication Parts
Key specifications
- Hertz
- 60Hz / 50Hz, 60Hz
- Ampere
- 1.8A / 0.9A
- N.W. (kg)
- 4.60
- Series
- CESG01 Resistance Type Oil Electric Lubricator
- Voltage
- 110V / 220V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | CHENYING CESG01-05 Resistance Type Oil Electric Lubricator 4L (Alum.) |
|---|---|
| Brand | CHENYING |
| Model | CESG01-05 |
| Category | Lubrication Parts |
| Hertz | 60Hz / 50Hz, 60Hz |
| Ampere | 1.8A / 0.9A |
| N.W. (kg) | 4.60 |
| Series | CESG01 Resistance Type Oil Electric Lubricator |
| Voltage | 110V / 220V |
| Width (mm) | 170 |
| Height (mm) | 244 |
| Length (mm) | 297 |
| Motor Power | 25±3W |
| Float Switch | NC Contact (NO Contact on request) |
| Discharge Bore | Ø4 , Ø6 |
| Pressure Switch | Optional (NC or NO Contact) |
| Voltage options | 110V,60Hz / 220V,50Hz / 220V,60Hz (specify on order) |
| Suitable Viscosity | Oil, 32-68 cSt@40oC |
| Max. Discharge Volume | 130cc/min, 260cc/min |
| Discharge Bore options | φ4 / φ6 / φ4 W/Pressure Gauge / φ6 W/Pressure Gauge (specify on order) |
| Fixed Hole Distance (mm) | 95x280 |
| Max. Operating Pressure | 15kgf/c㎡ |
| Tank Capacity (Material) | 4L (Alum.) |
| Optional special requests | Add a NC Contact Pressure Switch / Add a NO Contact Pressure Switch / NO Contact Float Switch / Increase Discharge Volume to 260cc/min |
