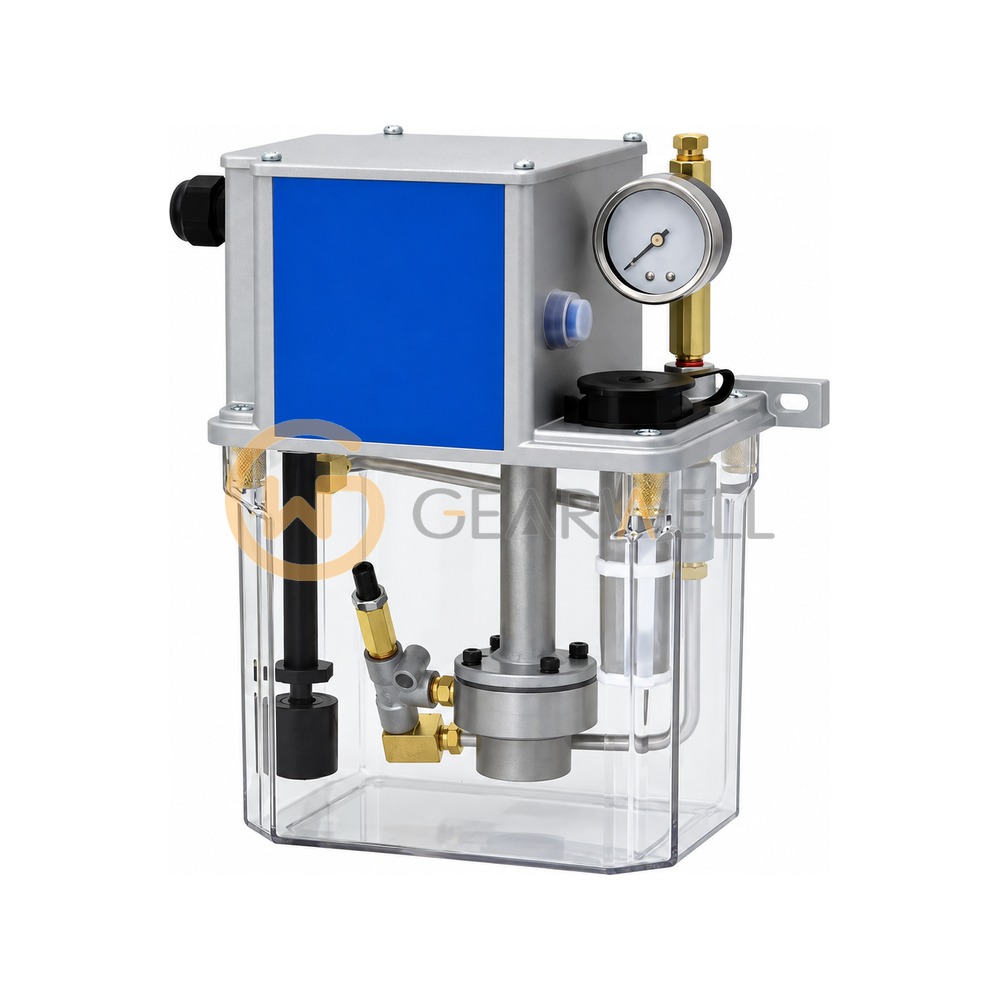

CHENYING CEN01-03 Resistance Type Oil Electric Lubricator 3L (Resin)
- Brand
- CHENYING
- Model
- CEN01-03
- GEARWELL SKU
- GWP-000012543
- Category
- Lubrication Parts
Key specifications
- Hertz
- 60Hz / 50Hz, 60Hz
- Ampere
- 2A / 1A
- N.W. (kg)
- 3.85
- Series
- CEN01 Resistance Type Oil Electric Lubricator
- Voltage
- 110V / 220V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | CHENYING CEN01-03 Resistance Type Oil Electric Lubricator 3L (Resin) |
|---|---|
| Brand | CHENYING |
| Model | CEN01-03 |
| Category | Lubrication Parts |
| Hertz | 60Hz / 50Hz, 60Hz |
| Ampere | 2A / 1A |
| N.W. (kg) | 3.85 |
| Series | CEN01 Resistance Type Oil Electric Lubricator |
| Voltage | 110V / 220V |
| Width (mm) | 167 |
| Height (mm) | 248 |
| Length (mm) | 227 |
| Motor Power | 30±3W |
| Float Switch | NC Contact (NO Contact on request) |
| Discharge Bore | Ø4 , Ø6 |
| Pressure Switch | NC Contact (NO Contact on request) |
| Voltage options | 110V, 60Hz / 220V, 50Hz / 220V, 60Hz (specify on order) |
| Suitable Viscosity | Oil, 32-68 cSt@40oC |
| Max. Discharge Volume | 130cc/min, 260cc/min |
| Discharge Bore options | φ4 / φ6 / φ4 W/Pressure Gauge / φ6 W/Pressure Gauge (specify on order) |
| Fixed Hole Distance (mm) | 205 |
| Max. Operating Pressure | 15kgf/c㎡ |
| Tank Capacity (Material) | 3L (Resin) |
| Optional special requests | Add a Buzzer / NO Contact Pressure Switch / NO Contact Float Switch / Increase Discharge Volume to 260cc/min |
