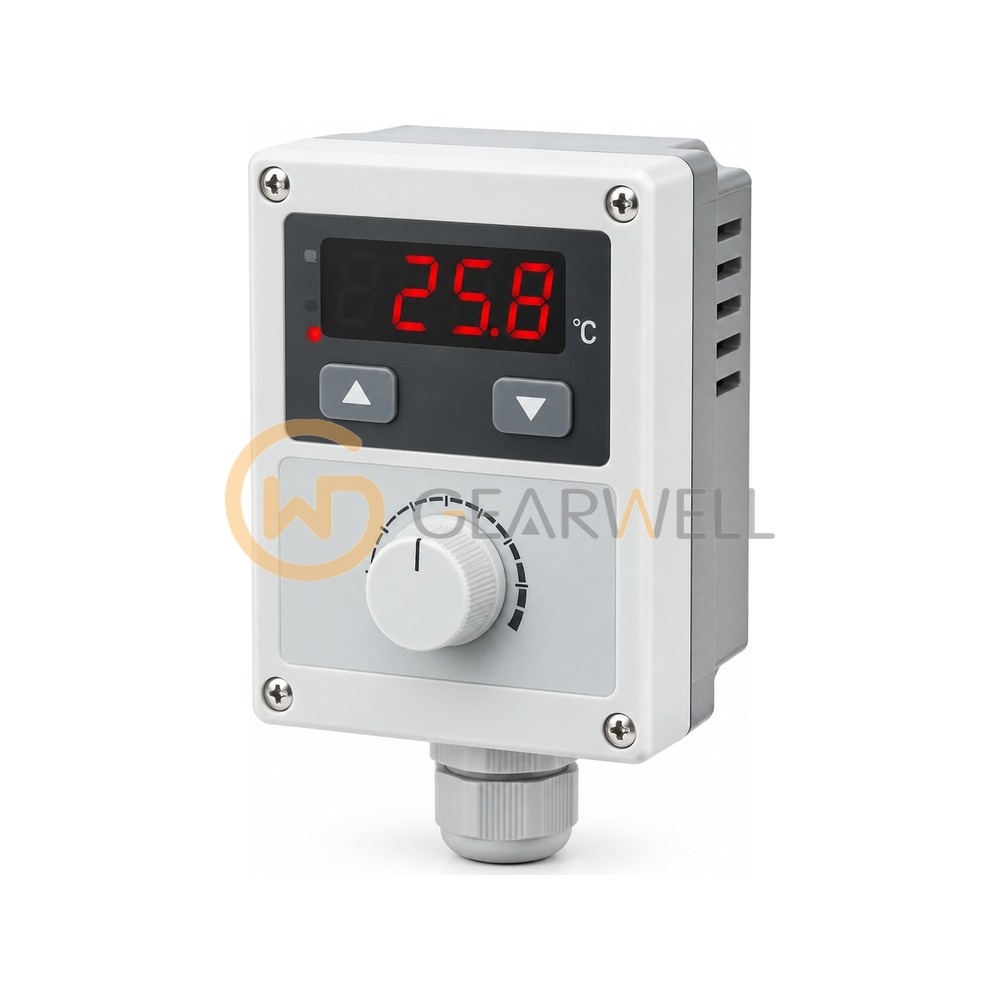

CAL ET2412-024-08 Digital Thermostat NTC 2 Relay 24 V
- Brand
- CAL
- Model
- ET2412-024-08
- GEARWELL SKU
- GWP-000033609
- Category
- Pressure, Flow & Temperature
Key specifications
- Range
- -60 to 150 °C
- Format
- 35 x 77 mm, 71 mm depth (29 x 71 mm cutout)
- Control
- On/Off, heating or cooling
- Evidence
- West Control Solutions catalogue BR-PC-2-US-1808 p.41 (west-cs.com asset); catalogue footnote marks alternative relay/units options as ET2411-only, 08 = the 8 A rating
- Brand note
- CAL (CAL Controls) is now a brand of WEST Control Solutions; brand kept as printed on the unit
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | CAL ET2412-024-08 Digital Thermostat NTC 2 Relay 24 V |
|---|---|
| Brand | CAL |
| Model | ET2412-024-08 |
| Category | Pressure, Flow & Temperature |
| Range | -60 to 150 °C |
| Format | 35 x 77 mm, 71 mm depth (29 x 71 mm cutout) |
| Control | On/Off, heating or cooling |
| Evidence | West Control Solutions catalogue BR-PC-2-US-1808 p.41 (west-cs.com asset); catalogue footnote marks alternative relay/units options as ET2411-only, 08 = the 8 A rating |
| Brand note | CAL (CAL Controls) is now a brand of WEST Control Solutions; brand kept as printed on the unit |
| Order code | ET2412-024-08 |
| Model (code 12) | 1 x NTC input, 2 x relay |
| Relay (code 08) | 8 A output |
| Supply (code 024) | 24 V AC/DC |
