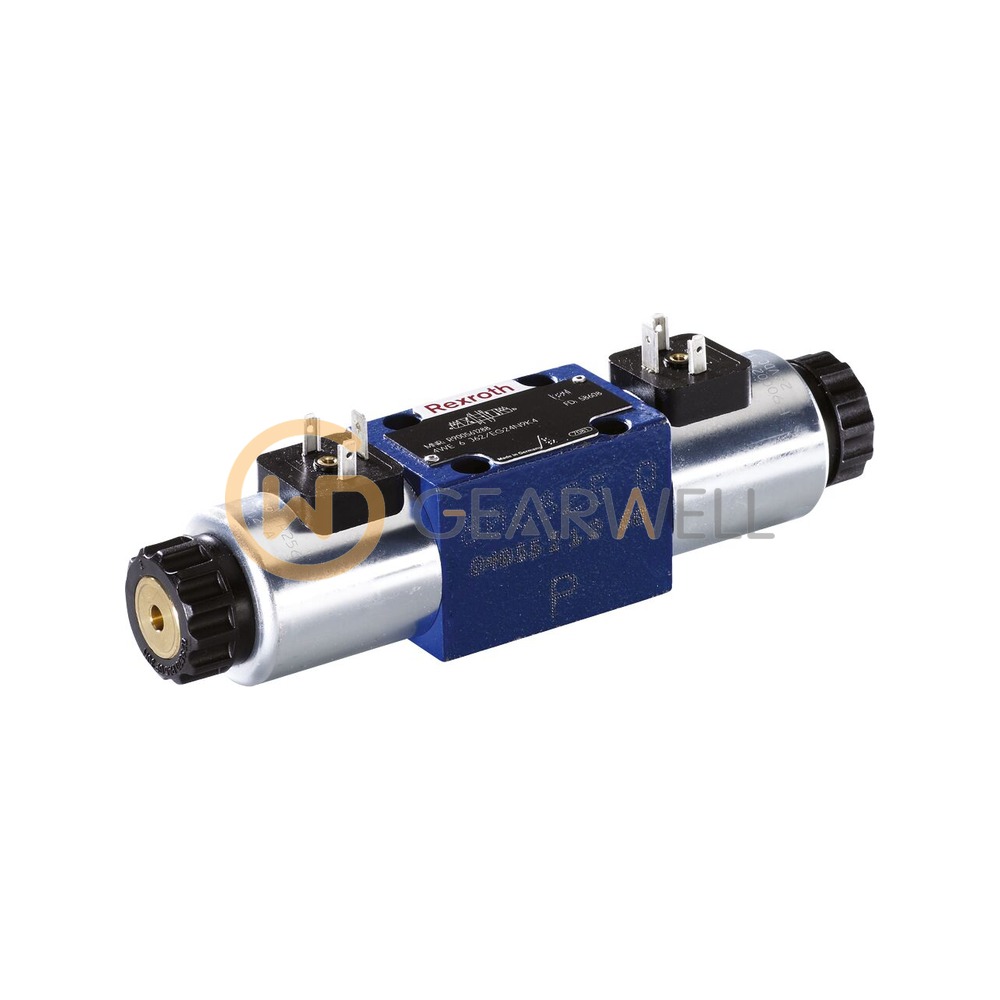

Bosch Rexroth R900549534 4WE6HA6X/EG24N9K4 Directional Spool Valve
- Brand
- Bosch Rexroth
- Model
- R900549534
- GEARWELL SKU
- GWP-000014155
- Category
- Hydraulic Valves
Key specifications
- Size
- 6
- Seals
- NBR
- Weight
- 1.46 kg
- Max. flow
- 80 l/min
- Connection
- Subplate mounting, ISO 4401-03-02-0-05
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Bosch Rexroth R900549534 4WE6HA6X/EG24N9K4 Directional Spool Valve |
|---|---|
| Brand | Bosch Rexroth |
| Model | R900549534 |
| Category | Hydraulic Valves |
| Size | 6 |
| Seals | NBR |
| Weight | 1.46 kg |
| Max. flow | 80 l/min |
| Connection | Subplate mounting, ISO 4401-03-02-0-05 |
| Spool symbol | HA |
| Supply voltage | 24 VDC |
| Material number | R900549534 |
| Type designation | 4WE6HA6X/EG24N9K4 |
| Electrical connection | Connector, 3-pole (2 + PE) to EN 175301-803 |
| Operating pressure, max. | 350 bar |
