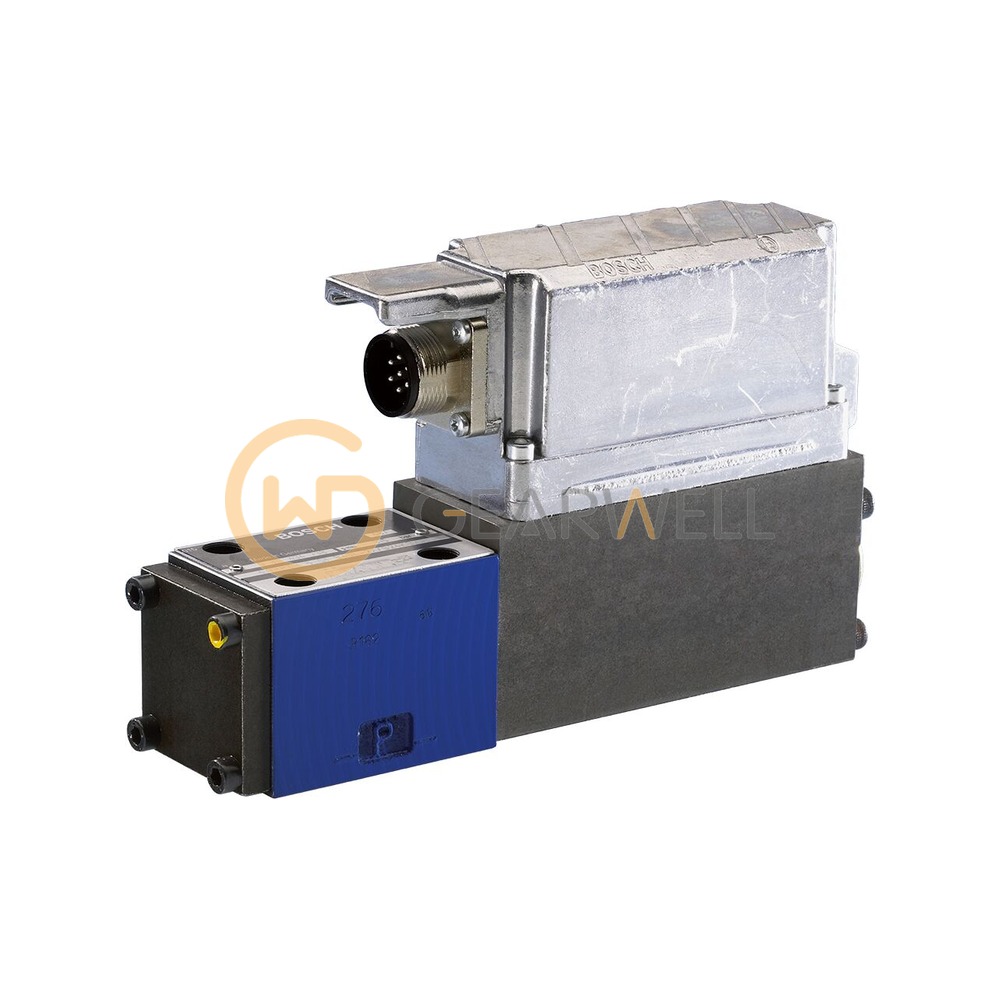

Bosch Rexroth 4WRPH 6 C4B40L-20/G24Z4/M High-Response Valve
- Brand
- Bosch Rexroth
- Model
- 4WRPH 6 C4B40L-20/G24Z4/M
- GEARWELL SKU
- GWP-000014157
- Category
- Hydraulic Valves
Key specifications
- Nominal flow
- 40 l/min
- Nominal size
- 6
- Code suffix "-20"
- as collected; official catalogue lists component series 2X
- Supply voltage
- 24 V DC
- Material number
- 0811404039
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Bosch Rexroth 4WRPH 6 C4B40L-20/G24Z4/M High-Response Valve |
|---|---|
| Brand | Bosch Rexroth |
| Model | 4WRPH 6 C4B40L-20/G24Z4/M |
| Category | Hydraulic Valves |
| Nominal flow | 40 l/min |
| Nominal size | 6 |
| Code suffix "-20" | as collected; official catalogue lists component series 2X |
| Supply voltage | 24 V DC |
| Material number | 0811404039 |
| Mounting interface | ISO 4401-03-02-0-94 |
| Position transducer | LVDT DC/DC |
| Type designation (official) | 4WRPH6C4B40L-2X/G24Z4/M |
| Max. operating pressure P, A, B | 315 bar |
